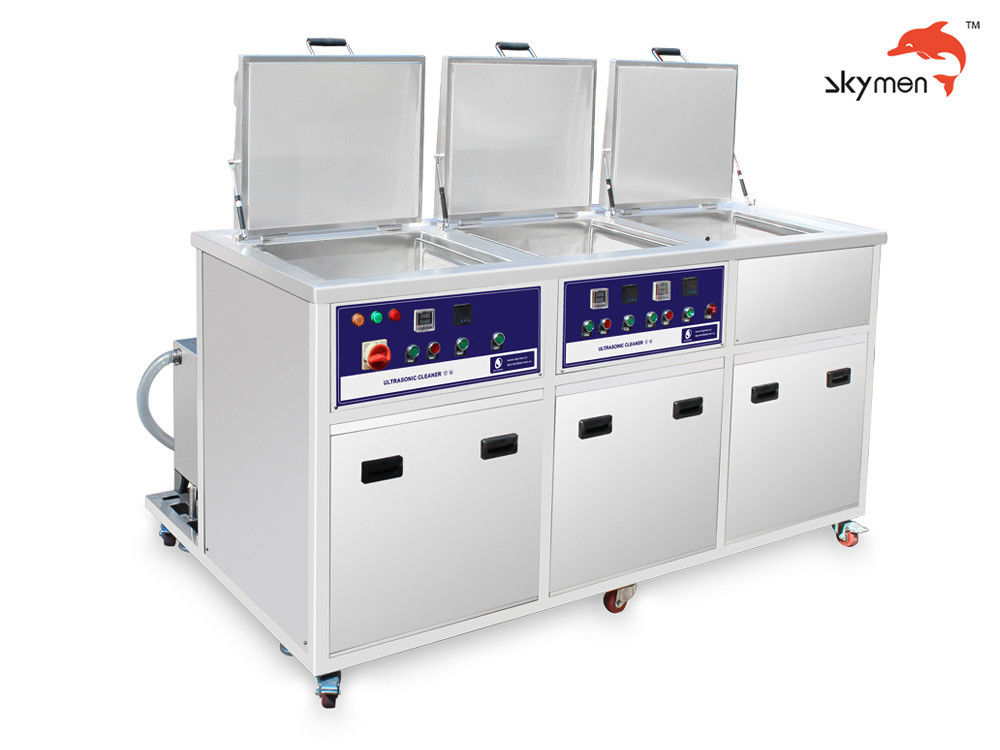

CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle

large.img.alt
small.img.alt

Large Image :  CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-3120GPH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 18 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Model: JTS-3120GPH First Tank Volume: 264L
First Tank Size: 800X600X550mm Transducers: 60pcs In 1st Tank; 60pcs In 2nd Tank
Ultrasonic Power: 3000W*2 Heating Power: 6000W*2
Function: Ultrasonic Clean+rinsing+filter+drying Frequency: 28/40KHz
High Light:

automotive ultrasonic cleaner

,

ultrasonic cleaning device

264L Ultrasonic Cleaning Machine for turbine fuel nozzle with Rinsing, Filter, Dryer





Ultrasonic cleaning machines are widely used in surface coating processing industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch and jewelry industry, optical industry, textile printing and dyeing industry. Other industries, etc., the use of ultrasonic cleaning machine is as follows

1. Surface spray treatment industry: (cleaning attachments: oil, mechanical chips, abrasives, dust, polishing wax) Removal of carbon deposits before plating, removal of oxide scales, removal of polishing paste, degreasing and derusting, cleaning before ion plating, Phosphating treatment, metal workpiece surface activation treatment, etc. Stainless steel polishing products, stainless steel knives, tableware, knives, locks, lighting, pre-painting of hand ornaments, cleaning before plating.

2. Machinery industry: (cleaning attachments: cutting oil, abrasive grains, iron filings, dust, fingerprints)

Removal of rust preventive grease; cleaning of measuring tools; degreasing and derusting of mechanical parts; engine, engine parts, gearbox, damper, bearing bush, grease nipple, cylinder block, valve body, carburetor and auto parts and chassis paint Cleaning before degreasing, descaling, phosphating; cleaning of filters, piston fittings, filters, etc. Precision mechanical parts, compressor parts, camera parts, bearings, hardware parts, molds, especially in the railway industry, are suitable for degreasing and decontaminating train compartment air conditioners, rust prevention, rust removal and degreasing of various parts of the train head.



Specification

Model JTS-3120GPH
1st Tank Volume 264L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 264L   Ultrasonic Rinsng tank
3rd Tank Volume 264L   Drying tank
1st tank size 800X600X550mm
2nd tank size 800X600X550mm
3rd Tank size 800X600X550mm
Transducers 60pcs in 1st tank; 60pcs in 2nd tank
Ultrasonic Power  3000W*2
Heating Power of Ultrasonic tank 6000W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 3060*1400*1150mm
Packing size 3120*1460*1270mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 500G
G.W.

550KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-3024GPH 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JP-3036GPH 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JP-3048GPH 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JP-3060GPH 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JP-3072GPH 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JP-3096GPH 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JP-3120GPH 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JP-3144GPH 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JP-3216GPH 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JP-3288GPH 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs


Images:
CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 0CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 1
Clean effect:

CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 2CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 3CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 4
CE 264L Industrial Ultrasonic Cleaner Adjustable Timer For Turbine Fuel Nozzle 5
