Product Details:
|
| Tank Capacity: | 360L | Tank Size: | 1000*600*600mm |
|---|---|---|---|
| Inner Tank Material: | SUS 304/316 | Power Supply: | AC 380V 3 Phase/220V 3phase |
| Transducer: | 72 PCS | Ultrasonic Power: | 3600W |
| Heating Power: | 9000W | Work Time: | 1-99 Hours Adjustable |
| Degree: | 1-99 Degree | Warranty: | 1 Year |
360L Ultrasonic Cleaning Machine With Drainage And Timer for Oil Dust Rust Remove
Supply Of Industrial Ultrasonic Cleaning Machine Single Slot Ultrasonic Cleaning Machine Cleaning Hardware Parts Oil And Dust Removal
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-720ST |
| Ultrasonic power | 3600W (72pcs transducers) |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 9000W |
| Tank capacity | 360L |
| Timer | Digital 1-99 hours adjustable |
| Heater | 0~99℃ |
| Voltage | AC 380V, 3phase 50Hz |
| Tank size | 1000*600*600mm |
| Certificates | ISO9001:2015 CE & RoHS |
Size could be customized

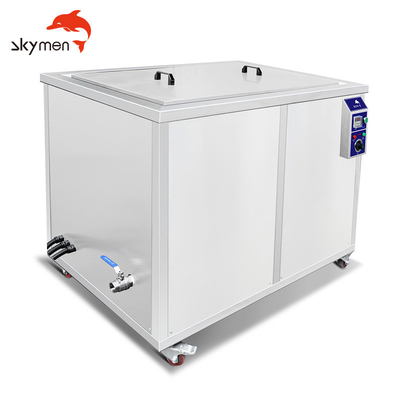

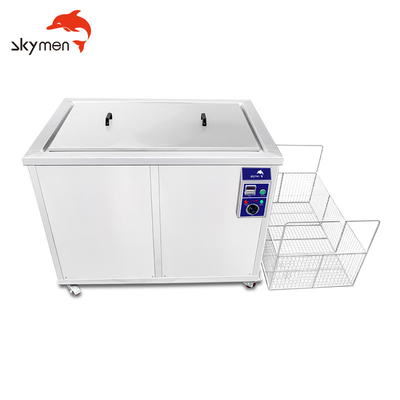

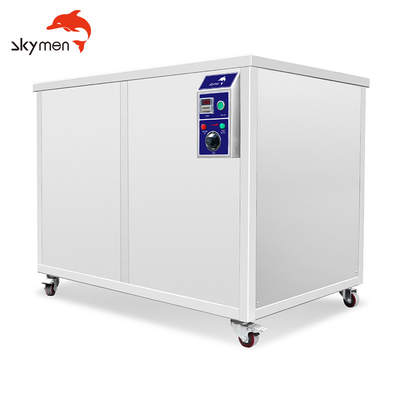

Images of this model:
Similar models with different tank volume:
| Skymen -ST Series (single tank) | |||||
| Model | Capacity | Tank size | Transducer | Ultrasonic Power | Heating Power |
| (L) | L*W*H (mm) | (pcs) | (W) | (W) | |
| JP-120ST | 38 | 500X300X250 | 12 | 600 | 1500 |
| JP-180ST | 53 | 500X350X300 | 18 | 900 | 1500 |
| JP-240ST | 77 | 550X400X350 | 24 | 1200 | 3000 |
| JP-300ST | 99 | 550X450X400 | 30 | 1500 | 4500 |
| JP-301ST | 96 | 800X300X400 | 30 | 1500 | 4500 |
| JP-360ST | 135 | 600X500X450 | 36 | 1800 | 4500 |
| JP-480ST | 175 | 700X500X500 | 48 | 2400 | 6000 |
| JP-600ST | 264 | 800X600X550 | 60 | 3000 | 6000 |
| JP-720ST | 360 | 1000X600X600 | 72 | 3600 | 9000 |
| JP-840ST | 420 | 1500X700X400 | 84 | 4200 | 15000 |
| JP-960ST | 480 | 1200X500X800 | 96 | 4800 | 15000 |
| JP-1108ST | 540 | 1000X900X600 | 108 | 5400 | 18000 |
| JP-1120ST | 640 | 1000X800X800 | 120 | 6000 | 21000 |
| JP-1132ST | 800 | 1000X1000X800 | 132 | 6600 | 24000 |
| JP-1144ST | 960 | 1200X1000X800 | 144 | 7200 | 24000 |
| JP-1180ST | 1200 | 1200X1000X1000 | 180 | 9000 | 36000 |
| JP-1192ST | 1440 | 1200X1200X1000 | 192 | 9600 | 36000 |
How does Ultrasonic Cleaner work?
About SKYMEN ultrasonic cleaner :
We are a factory located in Shenzhen since 2007 with over 320 employees, dedicatedly manufacture a wide range of ultrasonic cleaner, main customers from industry for tools cleaning, hardware cleaning and other metal parts cleaning.
Skymen is our brand.And we get BSCI,ISO9001,CE,RoHS,REACH,FCC,KC,etc.
OEM/ODM/Customized machine
Skymen have 17 years experience in specially designing ultrasonic cleaner according to customer's requirement.
Package by polywooden case:
Before and after :
