Product Details:
|
| Material: | Stainless Steel 304 | Power Supply: | 220V Or 110V, 50KHz / 60KHz |
|---|---|---|---|
| Timer: | 1~30mins | Heater: | 20~80C |
| Ultrasonic Power: | 600W | Accessories: | Stainless Steel Basket, Lid, Munual Instruction |
| High Light: | AC240V Ultrasonic Cleaning Equipment,80C Heater Ultrasonic Cleaning Equipment,SUS304 Sonic Gun Cleaner |
||
1. Why Do You Need Ultrasonic Cleaner
Gun Lover Usually clean their gun once a week but mostly get trouble in cleaning. There are many hard cleaning components in a gun and it is not easy to clean by hand.
However, ultrasonic gun parts cleaner will do all cleaning job for you and you just need to wait several minutes.
It clean every parts of your gun and it keep same intensity in every direction.
2. Advantage Of Ultrasonic Gun Parts Cleaner.
Ultrasonic transducers mounted to the tank bottom produce high frequency sound waves which cause rapidly alternating high & low pressure conditions in the cleaning solution. Millions of microscopic bubbles form and then implode (a process called cavitation) resulting in an intense scrubbing action that removes fouling even in the smallest indentations, grooves and impossible to reach by hand areas.
Using water based detergents with rust inhibitor and heat, unburned powder, carbon, lint, oil & dirt will be quickly removed from the field stripped gun parts usually within 4-6 minutes of immersion with minimal hand labor. Heated ultrasonic cleaning, followed by rinsing and ultrasonic lubrication with supplied lube pan and special oil, insures that the parts are moisture free and protected. After excess lubricant is removed from the parts with compressed air, they can be lubricated in accordance with manufacturer's instructions or your S.O.P.
The parts are then restored to factory new level of cleanliness which could not be achieved by the usual hand cleaning methods. The process does not affect night sights, rubber grips, and plastic frames or leave the parts dried out and unprotected.
4. How To Clean Your Gun Parts With Ultrasonic Cleaner.
(1). Field strip the gun
(2). Swab the bore with a good defouler like Hoppes #9
(3). Insert the stainless steel basket into the ultrasonic cleaning system
(4). Insert the polycarbonate tray into the stainless steel basket Ride The Waves Ultrasonic Gun Cleaning Equipment
(5). Add cleaning solution concentrate Cleaning Solution
(6). Turn heating unit on to 50 degrees C
(7). Insert gun parts into the ultrasonic cleaner
(8). Set the cleaning time for between 5 and 30 minutes, depending on how dirty the gun is. (Light maintenance on the lower end of the time scale, heavy cleaning on the higher end of the time scale.)
(9). Turn the ultrasonic cleaner on
(10). Check guns periodically for cleanliness
(11). When clean, turn off heat and the ultrasonic unit
(12). Swab the bore with a good defouler like Hoppes #9
(13). Always lubricate your gun after cleaning

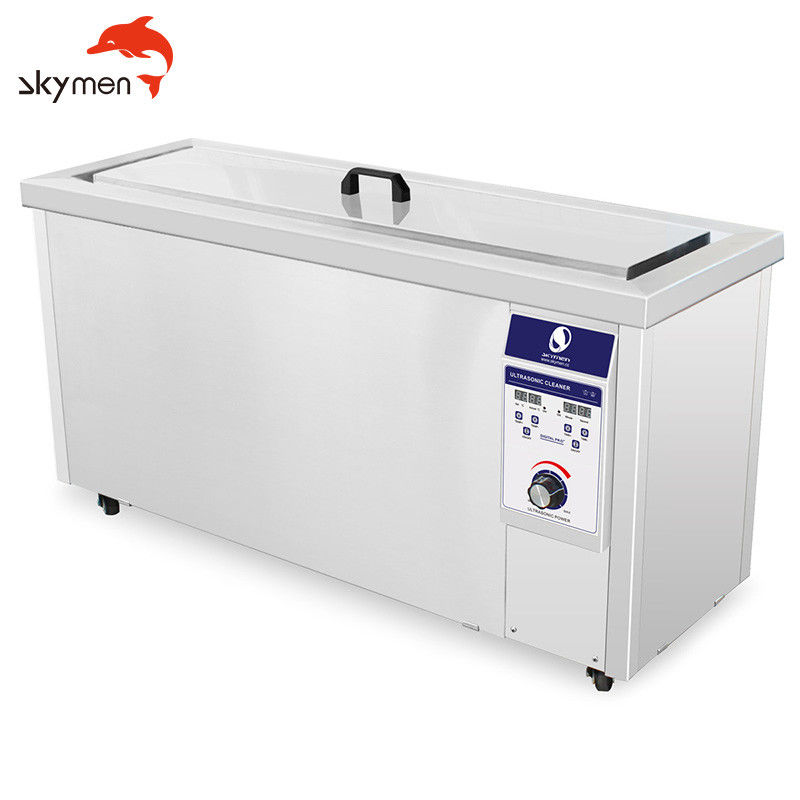

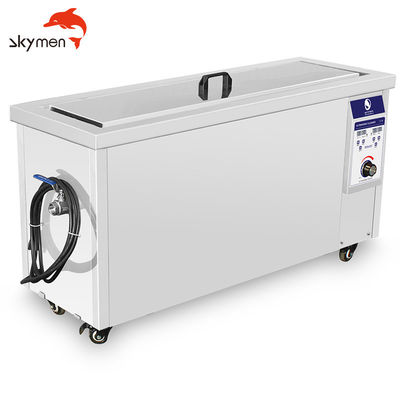

5. Feature Of JTS-1010
6. Specidication of JTS-1010
| Model | JTS-1010 | Frequency | 40,000Hz |
| Tank capacity | 30L | Timer | 1-99 mins |
| Tank size |
90.8 x 20.5 x 15.9 cm |
Unit size | 97.8 x 27.3 x 35.6 cm |
| Box packing | 114.3 x 38.1 x 44.5 cm | Function | Degasing/Draining |
| Ultrasonic power | 600W | Heating power | 500W |
| N.W. | 33kg | G.W. | 35kg |
| POWER SUPPLY |
AC 100 ~ 120V, 60Hz ; AC 220 ~ 240V, 50Hz |
||
7. Detail picture
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
Remark:
1. tank size and other functions can be custom made
2. customer logo is acceptable
3. packing by wooden case
4. lead time is negotiable according to qty. and custom made requirements
