|Material:||Stainless Steel House, 304 Tank||Ultrasonic Power:||480W/840W|
|Timer:||1~99 Minutes, Digital Adjustable||Heating Power:||500W|
|Heater:||Normal ~80 Degree Celsius||Power Supply:||110V/220V|

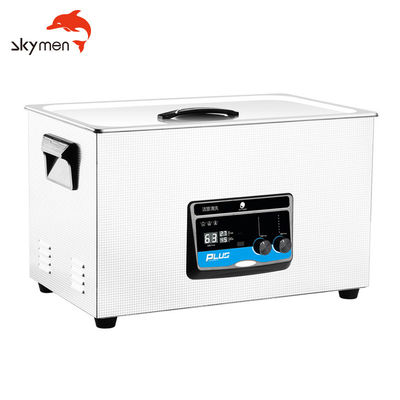

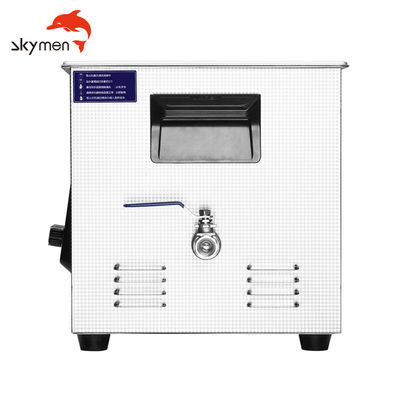

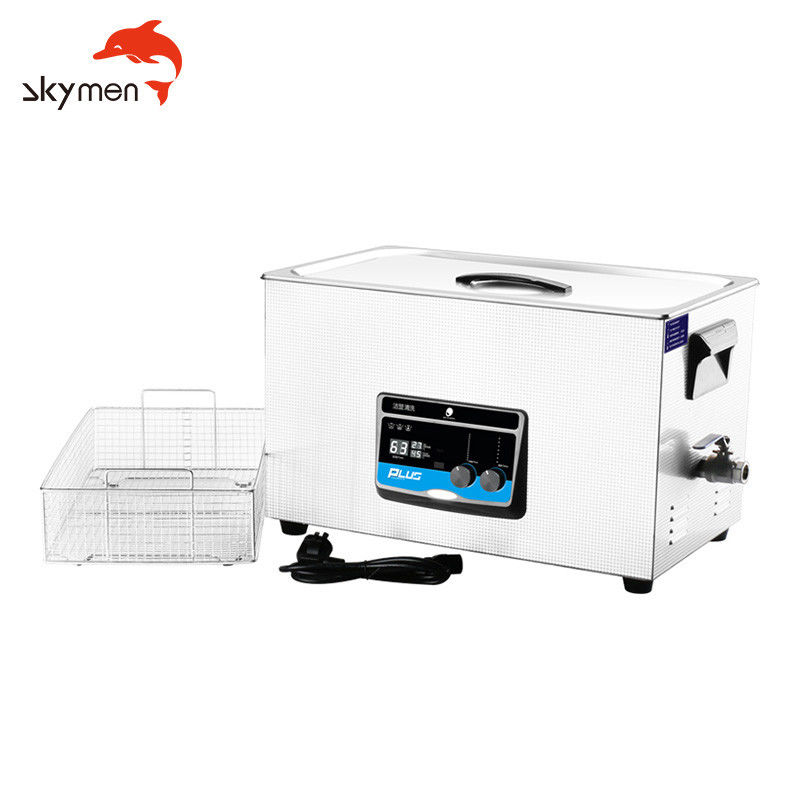

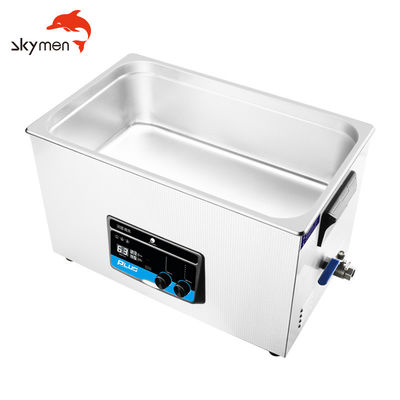

22L PCB Ultrasonic Cleaner,
840W PCB Ultrasonic Cleaner,
Fuel Injector SS Ultrasonic Washer
|Ultrasonic Frequency||40,000 Hz|
|Material||Stainless Steel SUS304|
|Tank Capacity||22 L|
|Timer||1-30minutes , Digital timer|
|Heater||20°C to 80°C|
|Power Supply||AC 100 ~ 120V, 50 / 60Hz|
|AC 220 ~ 240V, 50 / 60 Hz|
|Ultrasonic Power||480/840 W Adjustable|
|Heating Power||500 W, Digital Heating|
|Tank Size||500 x 300 x 150 mm ( L x W x H )|
|Unit Size||580 x 335 x 335 mm ( L x W x H )|
How ultrasonic cleaning works
Ultrasonic cleaning uses cavitation bubbles induced by high-frequency pressure (sound) waves to agitate a liquid. The agitation produces high forces on contaminants adhering to substrates like metals, plastics, glass, rubber and ceramics. This action also penetrates blind holes, cracks and recesses. The intention is to thoroughly remove all traces of contamination tightly adhering or embedded onto solid surfaces. Water or solvents can be used, depending on the type of contamination and the part.
Ultrasonic cleaner Application:
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
1. How about after sales services?
1 Year warranty for Skymen ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
2. What are the advantages of ultrasound over traditional cleaning methods?
Minimize the use of manual labor
Make cleaning and degreasing without the use of organic solvents
Clean hard to reach areas of products and remove all types of dirt
Shorten the processes such as extraction, dispersion, purification, chemical reactions
Eliminates costly mechanical and chemical cleaning of heat exchangers
3. What frequency is better for my parts?
Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
4. Can ultrasonic cleaning damage parts?
Ultrasonic cleaning is considered safe for most parts; Although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.
