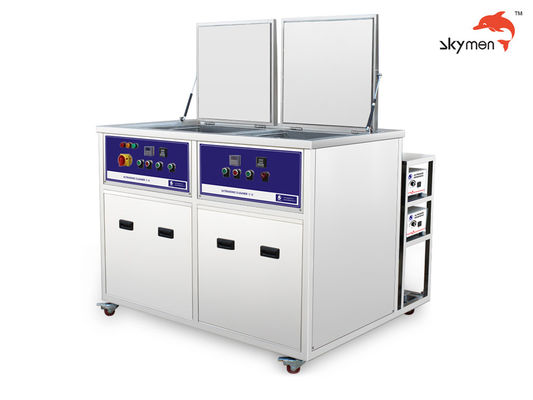

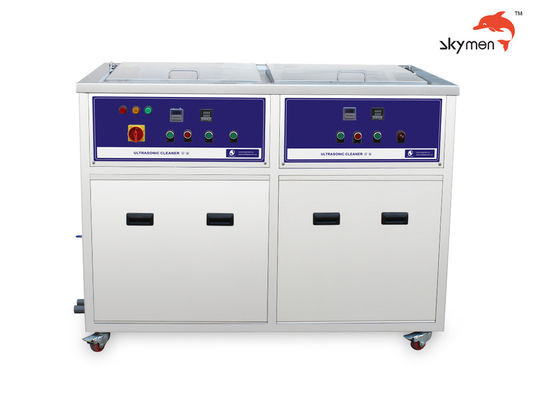

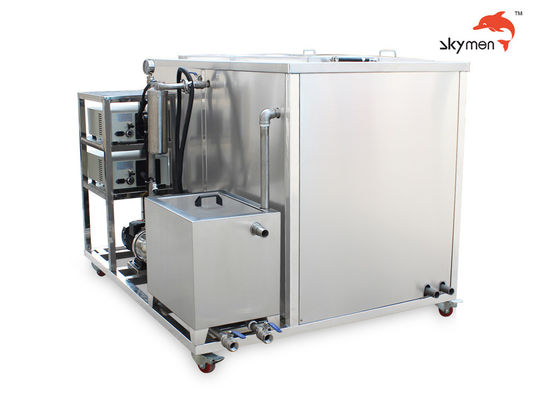

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2072GH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Model: JP-2072GH Tank Volume: 360L
Ultrasonic Power: 3600W Heating Power: 9000W
Frequency: 40KHz/28KHz Internal Tank Size: 1000X600X600mm (L*W*H)
Filter Cycle System: 1 Set Gross Weight: 600KG
High Light:

Barbecue Grill Ultrasonic Cleaning Machine

,

40KHz Ultrasonic Cleaning Machine

,

360L Barbecue Grill Cleaner

Barbecue Grill Cleaning Service Ultrasonic Cleaning Machine with Filter



PRODUCT SPECIFICATIONS
No
1
Model
JP-2072GH (Ultrasonic cleaning + Filter+ hot air drying)
2
1st Tank

Function
Ultrasonic cleaning + Filter+ Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized)
Tank Material
SUS 304 (SUS 316 can be customized)
Inner tank dimension
1000*600*600mm
Tank Capacity
360L
Transducer
72pcs
Ultrasonic Power
3600W
Heating Power
9000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C adjustable
Thickness of tank
2mm
Drain value
Yes, in the right side of machine
Water inlet/outlet
Yes
Filter
1 set, connect with 1st tank
Generator
1 set
Lid
Yes, hinged with machine body, with gasket
Basket load
300KG
3
2nd tank
Function
Hot air drying tank
Inner tank dimension
1000*600*600mm
Turbines power
750W
Dryer power
3000W
4
Packing
Overall size
260*140*130cm
Packing size
270*150*150cm
Packing detail
By wooden case(No logs, free of fumigation)
5
Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Production time
5 days if there is stock; 20 days if there is no stock

PRODUCT CONFIGURATION

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 0

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 1

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 2



Applications:



Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.Applications

Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.



SIMILAR PRODUCTS
Model
Tank size
Capacity
Transducer
Ultrasonic power
Heating power
Frequency
Generator
(cm)
(L)
(pcs)
(W)
(W)
(kHz)
(set)
JP-2012GH
50*30*25
38
12
600
1500
28/40
1
JP-2018GH
50*35*30
53
18
900
1500
28/40
1
JP-2024GH
55*40*35
77
24
1200
3000
28/40
1
JP-2030GH
55*45*40
99
30
1500
3000
28/40
1
JP-2036GH
60*50*45
135
36
1800
4500
28/40
1
JP-2048GH
70*50*50
175
48
2400
6000
28/40
2
JP-2060GH
80*60*55
264
60
3000
6000
28/40
2
JP-2072GH
100*60*60
360
72
3600
9000
28/40
2
JP-2108GH
100*90*60
540
108
5400
18000
28/40
3
JP-2144GH
120*100*80
960
144
7200
24000
28/40
4

If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.

 Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 3

Our service:

Pre-sale Service
1. Reply your messages or emails within 12 hours.
2. OEM&ODM acceptable(Custom- made logo or package).
3. Professional solutions are provided.
4. New product recommendation.
5. Drop- shipping available

After- sales Service
Within 12 months, if there will be any problem with the machine, we will allow the professional person to handle it for you or to the site.



Cleaning Effect show:

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 4
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.



Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 5

Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 6Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 7Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 8Barbecue Grill Ultrasonic Cleaning Machine 40KHz 360L With Filter 9
