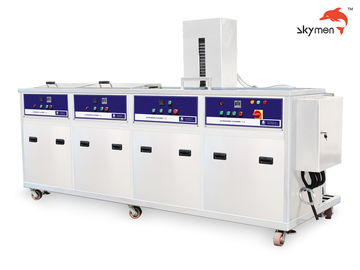

4 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle

large.img.alt
small.img.alt

Large Image :  4 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-4120GPH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 18 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Model: JTS-4120GPH First Tank Volume: 264L
First Tank Size: 800X600X550mm Transducers: 60pcs In 1st Tank; 60pcs In 2nd Tank
Ultrasonic Power: 3000W*2 Heating Power: 6000W*2
Function: Ultrasonic Clean+filter+rinsing+spray+drying Frequency: 28/40KHz
High Light:

automotive ultrasonic cleaner

,

ultrasonic cleaning device

4 bins Ultrasonic Cleaning Machine for turbine fuel nozzle with Rinsing, Filter, Spray, Dryer 264L



Why we use filter(filtration cycle system)
Cleaning of the manufacturing industry Cleaning of the manufacturing industry usually requires a large amount of solvent to remove grease and dust on the surface of the part. Usually, a large amount of solvent and detergent are used to remove the grease and dust on the surface of the part. However, the use of solvents and detergents inevitably increases the amount of water, which increases the cost of cleaning and is not environmentally friendly.
The circulation filtration system effectively reduces the cleaning cost, greatly reduces the discharge of wastewater, and achieves the purpose of sustainable recycling of cleaning water.



The role of the lifting device:
When you clean the items, it is more difficult to put the items in or out of the washing tank. The lifting system can solve this difficulty very well, just start the button, the object will automatically immerse and lift the sink, very labor-saving.



Specification

Model JTS-4120GPH
1st Tank Volume 264L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 264L   Ultrasonic Rinsng tank
3rd Tank Volume 264L   Spray tank
4th Tank Volume 264L   Drying tank
1st tank size 800X600X550mm
2nd tank size 800X600X550mm
3rd Tank size 800X600X550mm
4th tank size 800X600X550mm
Transducers 60pcs in 1st tank; 60pcs in 2nd tank
Ultrasonic Power  3000W*2
Heating Power of Ultrasonic tank 6000W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 3060*1400*1150mm
Packing size 3120*1460*1270mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 500G
G.W.

550KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-4024GPH 500X300X250 38L*4 600W 1500W*2 750W 24pcs
JP-4036GPH 500X350X300 53L*4 900W 1500W*2 750W 36pcs
JP-4048GPH 550X400X350 77L*4 1200W 3000W*2 750W 48pcs
JP-4060GPH 550X450X400 99L*4 1500W 3000W*2 750W 60pcs
JP-4072GPH 600X500X450 135L*4 1800W 4500W*2 750W 72pcs
JP-4096GPH 700X500X500 175L*4 2400W 6000W*2 750W 96pcs
JP-4120GPH 800X600X550 264L*4 3000W 6000W*2 750W 120pcs
JP-4144GPH 1000X600X600 360L*4 3600W 9000W*2 750W 144pcs
JP-4216GPH 1000X900X600 540L*4 5400W 18000W*2 1100W 216pcs
JP-4288GPH 12000*1000*800 960L*4 7200W 24000W*2 1500W 288pcs

Images:
4 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle 0
Clean effect:

4 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle 14 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle 24 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle 3
4 Bins Industrial Ultrasonic Cleaner Rinsing Filter Spray Dryer 264L For Turbine Fuel Nozzle 4

Spray and Rinsing:

Parts that are cleaned of large amounts of dirt are generally pre-cleaned by dipping, spraying, etc. After removing most of the dirt, the remaining dirt is ultrasonically cleaned, and the effect is good. If you clean small items and complicated shapes (parts), if you use a cleaning net or rotate the cleaning object, you can use ultrasonic radiation while vibrating, and you can get even cleaning.
