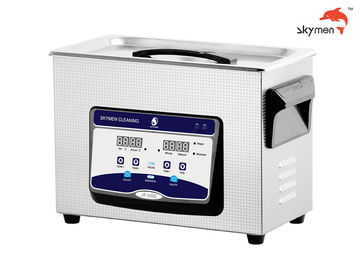

4.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder

large.img.alt
small.img.alt small.img.alt

Large Image :  4.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-030S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3 working days after payment
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detailed Product Description
Model: JP-030S First Tank Volume: 4.5L
Tank Size: 300*150*100mm Ultrasonic Power: 180W
Heating Power: 200W Frequency: 40KHz
Timer: 0~30 Minutes Adjustable Temperature: 20~80℃ Adjustable
High Light:

ultrasonic bath cleaner

,

table top ultrasonic cleaner

4.5L Ultrasonic Cleaning Machine 180W for Milk tea straw / Glass Applicator 40KHz

Ultrasonic cleaning methods are more common than conventional cleaning methods, especially the surface of the workpiece is complex, such as some surface irregularities, mechanical parts with blind holes, some products that are particularly small and have high requirements for cleanliness such as watches and clocks. Precision mechanical parts, electronic components, circuit board components, etc., can achieve very good results by ultrasonic cleaning.
The cleaning effect is good, the cleanliness is high and the cleanliness of all the workpieces is consistent. The cleaning speed is fast, the production efficiency is improved, and the cleaning liquid is not required to be touched by human hands, which is safe and reliable. Deep holes, slits and hidden parts of the workpiece can also be cleaned. No damage to the surface of the workpiece, saving solvent, heat, work site and labor.

Specification:

ModelJP-030S
Ultrasonic frequency40,000Hz
Material of tankSUS304
Material of shellSUS304
Capacity4.5L
Timer0~30 mins adjustable
Temperature20~80℃ adjustable
Power supply type 1AC 100~120V, 50/60Hz
Power supply type 2AC 220~240V, 50/60Hz
Ultrasonic power180W
Heating Power200W
Tank inner dimension300*150*100mm
Unit dimension330*200*235mm
Packing size410*255*320mm
N.W.4.7kg
G.W.5.35kg
CertificateISO9001:2008 & CE & RoHS


Similar models with different capacity:

Stainless Bench Top
ModelCapacityTank SizeUltrasonic PowerHeating PowerFrequency
(L)(L*W*H)mm(W)(W)(KHz)
0080.8150*85*6535040
0090.9150*135*656010040
JP-010T2150*165*1006010040
JP-020S3.2240*135*10012010040
JP-030S4.5300*150*10018020040
JP-031S6.5300*150*15018020040
JP-040S10300*240*15024020040
JP-060S15330*300*15036030040
JP-080S22500*300*15048050040
JP-100S30500*300*20060050040




Image:

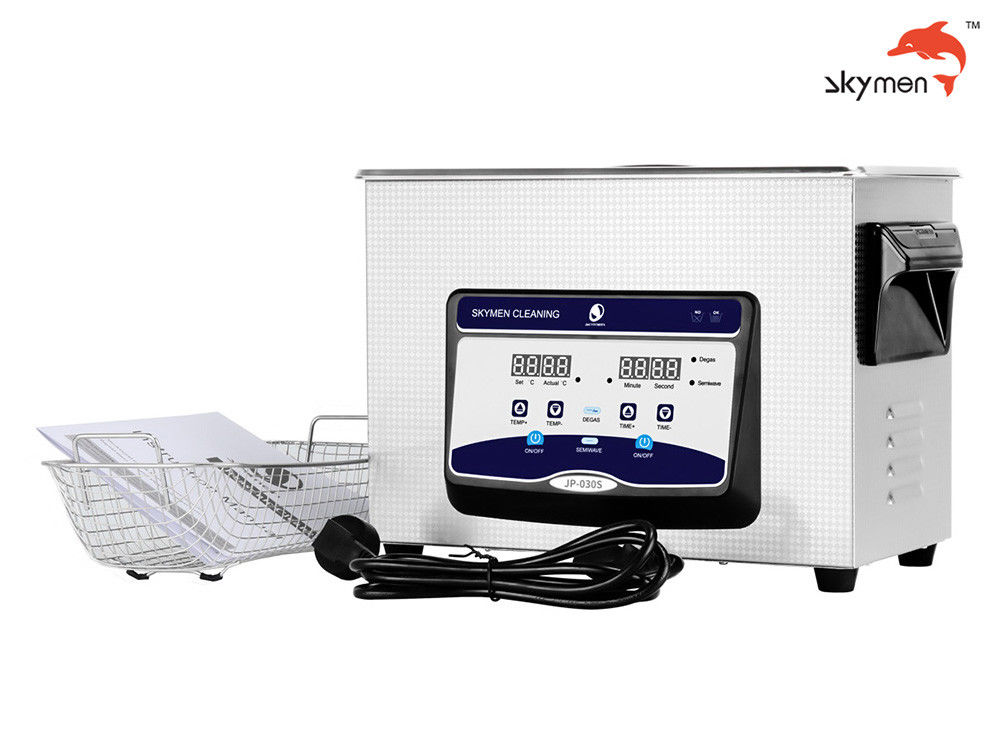

4.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder 04.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder 1
4.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder 2
How much ultrasonic power does your cleaning tank require?
The right amount of ultrasonic energy (usually expressed in watts/gallon) depends on the size of the cleaning bath and the difficulty of the cleaning requirement. Tanks in the one- to two-gallon range often provide up to 90 watts per gallon of ultrasonic power, plenty for most jobs, even cleaning out the ultra-fine passages of fuel injector nozzles.
"Achieving the same cleaning effect in larger tanks requires less energy density," Pedeflous noted. "Excellent cleaning has been demonstrated in tanks having 50 gallons capacity with only 25-30 watts per gallon. The more difficult the application, the greater energy density is required for effective cleaning."
On the other hand, too much ultrasonic power may result in cavitation erosion occurring on delicate or highly polished parts that are near the transducer-radiating surface. Cavitation is the formation and collapse of low-pressure bubbles that can pit the surface of metals. Aluminum, copper, brass and other soft metals are especially susceptible to cavitation erosion.


4.5L Ultrasonic Cleaner for PCB Cleaning Rosin scaling powder 3
