Product Details:
|
| Tank Volume: | 6400L | Transducer: | 720pcs |
|---|---|---|---|
| Ultrasonic Power: | 36000W | Heating Power: | 6600W |
| Generator: | 20pcs | Generator Power Control: | 1800W |
| Tank Material: | SUS304/SUS316 | Tank Thickness: | 3mm |
| High Light: | 28KHz Ultrasonic Washing Machine,Coal Fired Boiler Ultrasonic Washing Machine,1700 Gallon Ultrasonic Cleaning Equipment |
||
Ultrasonic Washing Machine For Coal Fired Boiler 1700 Gallon
Ultrasonic Cleaning Machine for boiler
coal fired boiler, electrically heated boiler, thermal oil furnace, industrial boiler, steam boiler, etc.
There are two ultrasonic cleaning solutions
When the boiler volume is not large, the entire boiler can be immersed in an ultrasonic tank. The tank is equipped with a heating function to improve the ultrasonic cleaning effect. The size of the tank is calculated according to the size of the boiler.
When the boiler volume is too large and it is not convenient to put it in the tank, you can use the ultrasonic vibration plate, immerse the 100mm thick vibration plate in the boiler, fill the boiler with water, make the ultrasonic vibration plate oscillate in the boiler at high frequency and peel off the dirt
Detailed Specification of this machine:
|
1
|
Model
|
JP-1720ST
|
|
|
2
|
Parameter
|
Function
|
Ultrasonic cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
| Thickness of tank | 3mm | ||
|
Inner tank dimension
|
4000*1600*1000mm
|
||
|
Tank Capacity
|
6400L
|
||
|
Transducer
|
720pcs
|
||
|
Ultrasonic Power
|
36000W
|
||
|
Heating Power
|
66000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Available
|
||
|
Water inlet/outlet
|
Available
|
||
|
Generator
|
20 sets
|
||
| Generator power control | 1800W | ||
| Generator shelf | Available | ||
| Basket | Available | ||
|
Basket load
|
1200KG
|
||
|
3
|
Packing
|
Overall size
|
440*200*170cm
|
|
Packing size
|
450*210*190cm
|
||
| Packing detail | By wooden case(No logs, free of fumigation) | ||
|
N.W/G.W
|
3000KG/3200KG
|
||
| 4 | Power supply | 380V 3 phase; 220V 3 pahse; 415V; 600V | |
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Lead time
|
20~30 working days after deposit
|
|
| 7 | Optional functions | Filtration cycle system | Available; capture dirty water, recycle clean water |
| Lifting system for basket | Available; take the basket up and down | ||
| Dunking system | Available; Speed up cleaning | ||
| Bubbling | Available; need to connect air compressor | ||
| Electrolysis | Available; For cleaning more complex structure mold | ||
| Cooling system | Available; To cool down inflammable and explosive | ||
| Constant temperature | Available; | ||
| Roller barrel | Available; for clean coins and big quantity parts | ||
| Anti-explosion electric box | Available; | ||
| Deionized(DI) water | Available | ||
| Double/Multi frequency | Available; 28/40/20/68/80/132KHz | ||
| Other funtions | Negotiate via email |
Other size and capacity for reference:

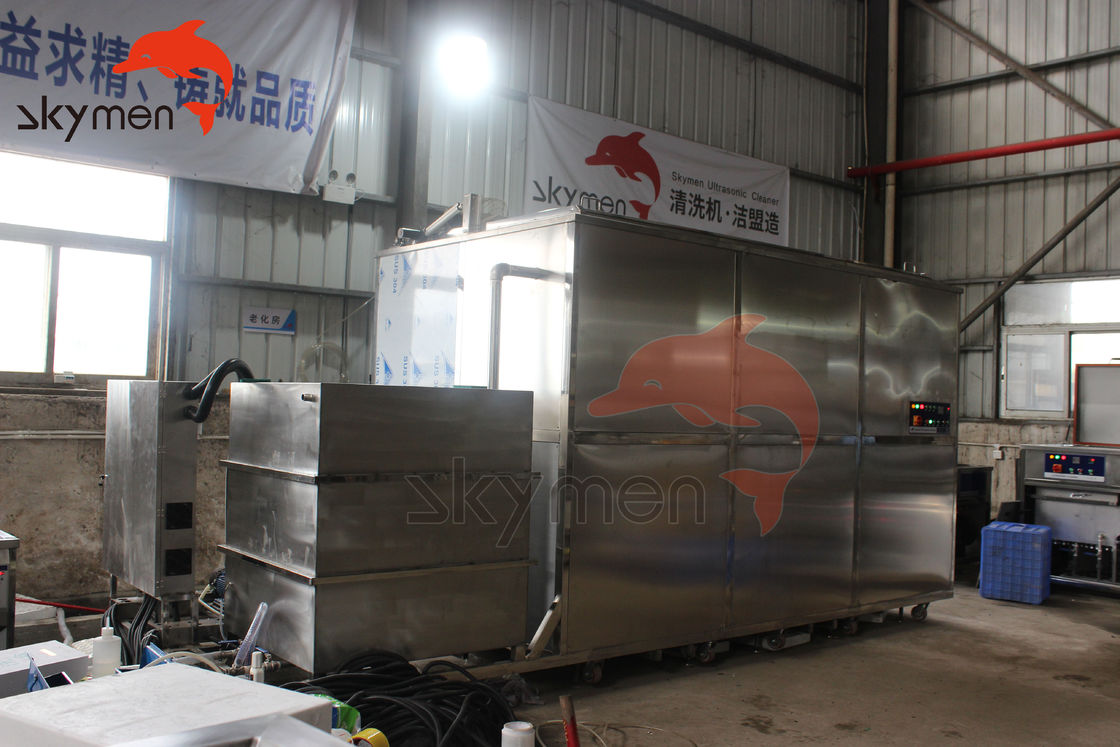

Product show:
Cleaning effect show:
Skymen Cleaning Equipment Shenzhen CO., Ltd.
Characteristics
1. Use ordinary tap water, alcohol or solvent as cleaning solution
2. High-power transducer cleaning effect is significant, can be observed with the naked eye
3. After washing, the object shines brightly
4. Digital LCD control boot time
5. All stainless steel casing, inner liner and lid, even more upscale
6. The waterproof performance is greatly improved, and the product is safer and more durable.
7. With heating and temperature system
8. With handle and drainage system, it is more convenient
