Product Details:
|
| Material: | Stainless Steel SUS304/316L | Application: | Plastic Mold Cleaning |
|---|---|---|---|
| Ultrasonic Frequency: | 28/40khz | Ultrasonic Power: | 3600W |
| Heating Power: | 12000W | Power: | 1440~3600W Adjustable |
| Capacity: | 360L | Tank Size: | 1000X600X600mm |
| Unit Size: | 1000x500x800mm | Lead Time: | 3 Days After Payment |
| High Light: | automotive ultrasonic cleaner,ultrasonic washing machine |
||

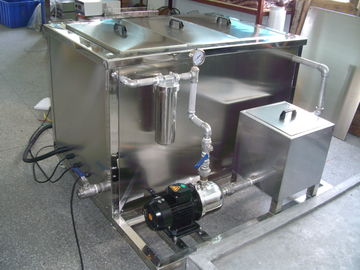

360L Factory Price Plastic Mold Industrial Ultrasonic Cleaner For Entire Clean
1.How ultrasonic cleaning is different.
All cleaning involves one or more processes: direct mechanical energy such as scrubbing or spraying, use of chemicals, heating, and time. Ultrasonic energy, a form of mechanical energy, generates controlled, high-magnitude pressure fluctuations in liquids that produce a consistent, high level of cleanliness in a short amount of time. Ultrasonic cleaning also is able to penetrate minute crevices that conventional methods cannot.
2. How to Clean Plastic Tool Models
(1) Fill the tank with the proper chemistry and turn on the heat.
(2) Ensure that the tool model to be cleaned doesn’t trap any air. If all surfaces are not wetted with liquid, the ultrasonic energy won’t be fully effective.
(3) Activate the ultrasonic energy by turning the system on.
(4)When the cycle ends, remove the cleaned tool model and ensure that it is completely drained and free of all soils.
(5)Thoroughly rinse the part with clean water, again wetting all surfaces.
(6)Dry the tool model by evaporation, air-drying, or forced hot air.
3.Cleaning Process Of plastic mold cleaning.
The chart below indicates recommendations for precision cleaning plastic mold using the Skymen Model JP-720ST ultrasonic cleaning unit.
| Process stage | ultrasonic frequency | handling | Temperature(C) | Time(minutes) |
| Wash | 40KHz | Basket | 60 | 5 |
| Rinse | N/A | Basket | Warm | N/A |
| Dry | N/A | Basket | ambient | Until dry |
With this full process, you are able to remove all polypropylene dust/ oil/ dirt on plastic mold. It will save your labor and time greatly.
4.Specification
| Model | JP-720ST(digital,power adjustable) |
| Tank size | 1000X600X600mm |
| Wood case packing | 1300x900x1100mm |
| Ultrasonic power | 1440W~3600W |
| Heating power | 12KW |
| Timer: | 1~99min adjustable |
| Heater | 20~80C adjustable |
| Frequency | 40,000Hz |
| Tank capacity | 360L With Roller |
| G.W. | 280kg |
| power adjustable | 40%-100% |
5.Packing information and delivery
6. Other Recommendation
If tank size is not suitable for your plastic mold, we have other bigger ultrasonic cleaner in store. And we can design and produce any special function ultrasonic cleaning machine you need.
7.Skymen Advantage
We have been in this industry for 10 years and we are supplying machines to all seller all over the world.All distributor is welcome for win-win coperation.
We have passes ISO,High Tech Company,CE,RoHS,FCC, National Medical Instrument Approval.
