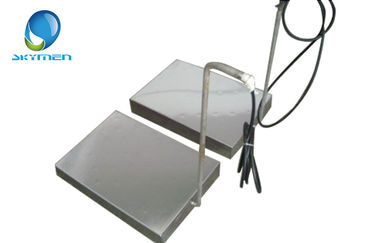

Skymen Generator Control Submersible Transducer Pack Immersed

Skymen Generator Control Submersible Transducer Pack Immersed
Skymen Generator Control Submersible Transducer Pack Immersed

Large Image :  Skymen Generator Control Submersible Transducer Pack Immersed

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE
Model Number: JTM-1040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: packing by box or wooden case; the packing size decides by the machine
Delivery Time: In Stock
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 600 sets per month
Price:: nogotiation

Skymen Generator Control Submersible Transducer Pack Immersed

Description
Model: JTM-1040 Ultrasonic Power: 2000W
Have: OEM & OCM Warranty: 1 Year
Frequency: 28KHz/40KHz Material: Stainless Steel
High Light:

ultrasonic generators and transducers

,

ultrasonic extraction equipment


 Skymen Generator Control Submersible Transducer Pack Immersed

Transducer pack Specifications:

Model (JTM models)

JTM-1006

JTM-1012

JTM-1018

JTM-1024

JTM-1030

JTM-1036

Ultrasonic transducer box  size (mm)

L

305

355

406

500

550

500

W

250

305

305

355

406

460

H

100

100

100

100

100

100

Housing material

SUS304/SUS316L

Surface finishing

Hard-Cr plating treatment (20+microns)

Ultrasonic frequency

28KHz / 40KHz

Ultrasonic transducers

6pcs

12pcs

18pcs

24pcs

30pcs

36pcs

Ultrasonic power

300W

600W

900W

1200W

1500W

1800W

Electronic generator

KG300

KG600

KG900

KG1200

KG1500

KG1800

Ultrasonic generator work separately control transducers

power suppy

AC 110V/220V or 220/240V, 1,13AMP

*Custom made:68KHz/80KHz/120KHz and size are all available




Transducer box size can be made based on customer tank size.
Immersible ultrasonic transducer units can be installed in the tank by three ways:
1. side mounted
2. bottom mounted
3. top mounted
Skymen will design proper mounted way for you according to your requirements and existing tank specifications.

Introduction of Skymen ultrasonic generator & transducer box
1. Skymen immersible ultrasonic  transducer box-embedded in your existing tank.
2. Good quality-custom made size-chemicals resistance-moveable-convenient install.

3. JTM series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order.

4. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience.

5. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.


Packing & delivery details:

Packing , loading, delivery time

Packing unit

1set/package

Packing method

Export wooden case

Loading port

Shenzhen

Delivery time

About 15 working days

Minimum Order Quantity

1set

Transport method

By express company / air / sea
