Product Details:
|
| Model: | JTM-1012 | Transducer Box Size: | 355x305x100mm |
|---|---|---|---|
| Ultrasonic Power: | 600W | Available: | CE |
| Frequency: | 28KHz/40KHz | Feature: | Hard Cr+ Plating |
| High Light: | ultrasonic generators and transducers,submersible ultrasonic transducer |
||

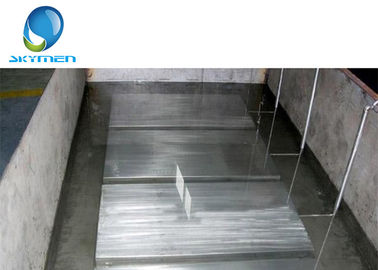

Industrial Use Immersible Transducer Box & Generator
Specification details:
Ultrasonic transducer box size (mm):355x205x100(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 12pcs
Ultrasonic power: 600W
Electronic generator: KG600, Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1,13AMP
Transducer pack Specifications:
|
Model (JTM models) |
JTM-1006 |
JTM-1012 |
JTM-1018 |
JTM-1024 |
JTM-1030 |
JTM-1036 |
|||
|
Ultrasonic transducer box size (mm) |
L |
305 |
355 |
406 |
500 |
550 |
500 |
||
|
W |
250 |
305 |
305 |
355 |
406 |
460 |
|||
|
H |
100 |
100 |
100 |
100 |
100 |
100 |
|||
|
Housing material |
SUS304/SUS316L |
||||||||
|
Surface finishing |
Hard-Cr plating treatment (20+microns) |
||||||||
|
Ultrasonic frequency |
28KHz / 40KHz |
||||||||
|
Ultrasonic transducers |
6pcs |
12pcs |
18pcs |
24pcs |
30pcs |
36pcs |
|||
|
Ultrasonic power |
300W |
600W |
900W |
1200W |
1500W |
1800W |
|||
|
Electronic generator |
KG300 |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
|||
|
Ultrasonic generator work separately control transducers |
|||||||||
|
power suppy |
AC 110V/220V or 220/240V, 1,13AMP |
||||||||
|
*Custom made:68KHz/80KHz/120KHz and size are all available |
|||||||||
Features:
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Custom made size is available
Transducer no./transducer box: range[6pcs~40pcs per box]
Ultrasonic power: range[300W~2000W]
Ultrasonic frequency: 28KHZ/40KHz
