Product Details:
|
| Tank Capacity: | 175L | Tank Size: | 700*500*500mm |
|---|---|---|---|
| Unit Size: | 980*755*800mm | Material: | Stainless Steel SUS304/SUS316 |
| Timer: | 1-99hour | Ultrasonic Power: | 0-2400W |
| Heating Power: | 6000W | Voltage: | 380V/220V |
| High Light: | 175L Sonic Wave Ultrasonic Cleaner,SUS 304 Sonic Wave Ultrasonic Cleaner,Engine Hardware Industrial Ultrasonic Cleaning machine |
||
175L Industrial Single Tank Sonic Wave Ultrasonic Cleaner
| Model No. | JP-480ST | |
| Image of sonic wave ultrasonic cleaner |  |
|
| Ultrasonic model | Ultrasonic Frequency | 40 kHz |
| Material | Stainless Steel SUS304 | |
| Tank Capacity | 175 L | |
| Timer | 1~99hours adjustable | |
| Heater | 20°C to 95°C adjustable | |
| Degas | Yes | |
| Semiwave | Yes | |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz | |
| AC 220 ~ 240V, 50 / 60 Hz | ||
| Ultrasonic Power | 0-2400W | |
| Heating Power | 6000W | |
| Basket& cover | Standard equiped | |
| Packing | Tank Size | 700*500*500mm ( L x W x H ) |
| Unit Size | 980*755*800mm ( L x W x H ) | |
| Package Size | 1080*855*920mm ( L x W x H ) | |
| N.W. / G.W | 128KG / 152KG | |
| Warranty | 1 year | |
| Features of sonic wave ultrasonic cleaner | Automatic measuring of load - frequency and power regulation Fully digital generator – well-adjusted and energy efficient Advanced diagnostics – performance monitoring and service capabilities Top level of cleanliness Quick wash process Good ergonomics in manual handling of lightweight items A cost-effective solution Compact design, small footprint |
|
| Application of sonic wave ultrasonic cleaner | Electronic factory, utensil, hardware, machinery, communication, biological,medical instrument, glasses, Optical, Textile, auto part,Ships, aviation, mining area, commercial cleaning. | |
| Certificates | CE/ROHS/FCC/PSE/ISO9001 | |
| Description of JP-480ST Sonic wave ultrastonic cleaner: | |||||||||
| A: Material: | |||||||||
| 1. Tank thickness: 2.0mm. (Stainless Steel SUS304) | |||||||||
| 2. Capacity:175liter | |||||||||
| 3. N.W. / G.W.: 128KG / 152KG | |||||||||
| 4. Warranty: 1 Year | |||||||||
| B. Dimension:(L* W*H ) mm | |||||||||
| 1. Tank size:700*500*500 | |||||||||
| 2. Unit size: 980*755*800 | |||||||||
| 3. Packing size: 1080*855*920 | |||||||||
| C. Features: | |||||||||
| 1. Stainless steel SUS 304 tank and housing. | |||||||||
| 2. Stainless steel washing basket and Lid, | |||||||||
| 3. Full-open lid easy for water filling, drainage valve for dirty water discharge. | |||||||||
| D. Application of sonic wave ultrasonic cleaner: | |||||||||
| 1. Train bearings, industry intrument, hardware instrument, scientific laboratory, automotive parts, motor, machine tool, etc. | |||||||||
| E. Certificates: CE/ROHS/FCC/PSE/ISO2008 9001 |
Application of sonic wave ultrasonic cleaner:
-Scientific Labs:Eyeglass Frames;Lab Glassware;Optical&Contact Lenses;Pipettesscientific Instruments;Test tubes
-Industrial Manufacturing:Assemblies;Gears;Metal&Plastic Parts;Precision Bearings
-Electronic manufacturing:Capacitors;Ceramic Substrates;PC Boards;Packaging Components;Quartz Crystals
-Medical and Dental Lab:Burs;Blood Oxygenators;Dental Instruments;Syringe Parts;Surgical Instruments
-Jewelry Manufacturing:Chains;Charms;Coins;Intricate Settings;Precious Metals&Gemstones;Watches

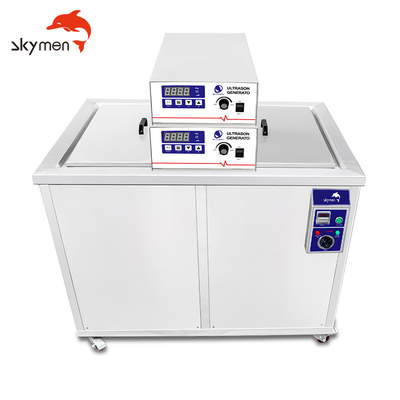

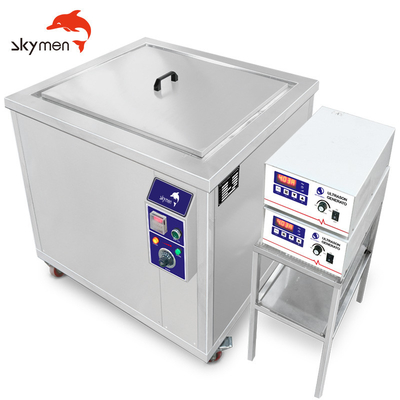

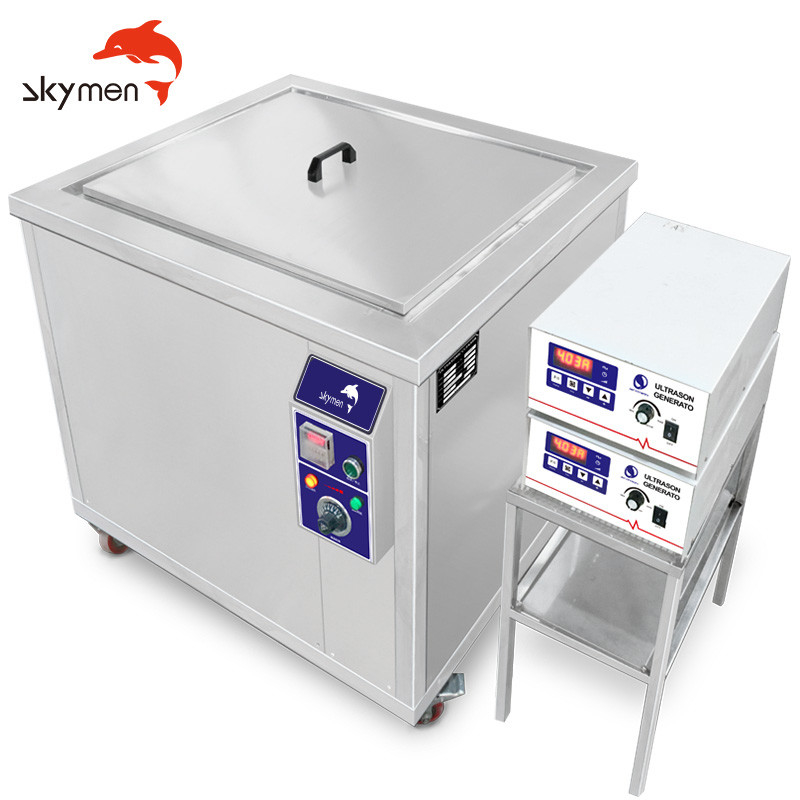

Image of sonic wave ultrasonic cleaner
About Skymen:
May I ask which Optical glass can use sonic wave ultrasonic cleaners?
Lens, prism, spectacle frame, precious metal decoration, optical fiber, liquid crystal LCD, TF
What are the benefits of using sonic wave ultrasonic cleaners?
1. Clean integration
When using a medical ultrasonic cleaning machine, it is necessary to manually put in medical utensils and cleaning fluid, but after the cleaning machine is turned on, it can be cleaned intelligently and integratedly.
2. Protect the health and safety of medical personnel
Scalpels, glass slides, tweezers, etc. are inevitably sharp in medical equipment. If the equipment is stained with patient's blood, there will inevitably be the possibility of infection during manual cleaning. The use of medical ultrasonic cleaners can avoid manual cleaning and infection.
3. Better cleaning effect
Once the medicines or blood stains on the medical equipment are dry, it is difficult to clean it by hand. Even if there are no stains on the surface, there will still be stubborn bacteria residues. The medical ultrasonic cleaner can produce a large amount in the cleaning solution when it is started. The tiny air bubbles that impact the medical appliance can also penetrate deep into the many gaps of the appliance. The cleaning effect produced by this ultrasonic cavitation is irreplaceable manually, and the medical appliance can be cleaned more thoroughly.
How about after sales services?
12 months warranty for SKYMEN ultrasonic cleaner. Any technical problem during warranty time, free replacement parts will be sent to your door. And technical support is also available after 1 year.
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
How long will the order take to make?
Under regular production capacity, it takes 25 days after your confirmation of details.
