Product Details:
|
Material: | SUS 304 | Tank Capacity: | 960L |
---|---|---|---|
Tank Size: | 1200X1000X800 Mm | Ultrasonic Power: | 7200W |
Heating Power: | 27000W | Transducer: | 144pcs |
High Light: | Engine Block Industrial ultrasonic cleaner,Oil Filter System Industrial ultrasonic cleaner,5000L engine block ultrasonic cleaner |
Skymen Ultrasonic Cleaning Machine Big Tank With Filter System Cycle Washing
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
1. Tank materail is SUS304, 3 mm thickness, Sturdy, durable and resistant to high temperature.
2. 50W industrial transducers, outstanding cleaning effects.
3. Separate generator controller.
4. Power adjustable, choose different power according to different cleaning objects.
5. Digital timer: 1~99min timer adjustable, continious working for long time.
6. Memory function, with memory chip, no need to reset time and temperature every time.
7. 20~95C adjustable, with heated water, fast cleaning.
8. Industry use power cord, much safer.
9. Can bear 300KG cleaning objects.
10. Accessories: Machine with separate generator controller, stainless steel basket, drainage, lid, power cord, movable castors
etc.
APPLICATION
1.Car service: DPF,Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
Specificatoin:
Model | JP-1144G |
Ultrasonic power | 7200W (114pcs transducers) |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power | 72000W |
Tank capacity | 960L |
Timer | Digital 1-99 min adjustable |
Heater | Room temperature~150℃ |
Voltage | AC 380V, 3phase 50Hz |
Tank size | 1200X1000X800mm |
Certificate | ISO9001:2008|CE & RoHS |

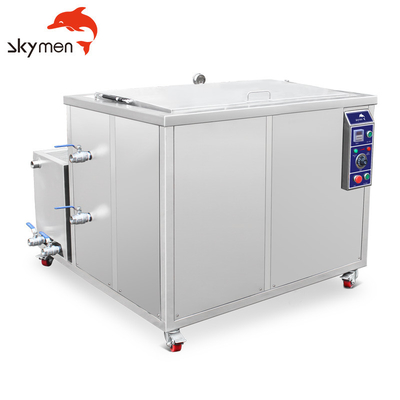

Images of this model:
Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300G | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
JP-301G | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-840G | 1500X700X400 | 420L | 4200W | 15000W | 84pcs |
JP-960G | 1200X500X800 | 480L | 4800W | 15000W | 96pcs |
JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1120G | 1000X800X800 | 640L | 6000W | 21000W | 120pcs |
JP-1132G | 1000X1000X800 | 800L | 6600W | 24000W | 132pcs |
JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
JP-1216G | 1500X1000X1000 | 1500L | 10800W | 36000W | 216pcs |
How does Ultrasonic Cleaner work?
How Ultraosnic Cleaner Work?
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power.
This cleaningaction gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid.
Because the liquid can penetrateinto very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.
APPLICATION:
1.Car service: DPF,Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
Good for commercial or industrial workpeice :
1. Can get much better cleaning result for oil-remove , carbon-remove and rust-remove ;
2. Skymen commercial or industrial ultrasonic models , which the inner tank more bigger and ultrasonic power more powerful with much better cleaning effect , can meet customers longer time lasting cleaning ;
3. More safety for end users with chemicals inside cleaning and no worry about affecting machine outer casing .
Package by polywooden case:
Before and after :
