Product Details:
|
| Transducer: | 48pcs | Generator: | Yes; 2400W |
|---|---|---|---|
| Ultrasonic Power: | 2400W | Thickness: | 2.5mm |
| Frequency: | 28/40khz | Wiring Methods: | Rigid Tube |
| High Light: | Rigid tube Immersible Ultrasonic Transducer,2400W Immersible Ultrasonic Transducer,SUS304 Underwater Ultrasonic Transducer |
||

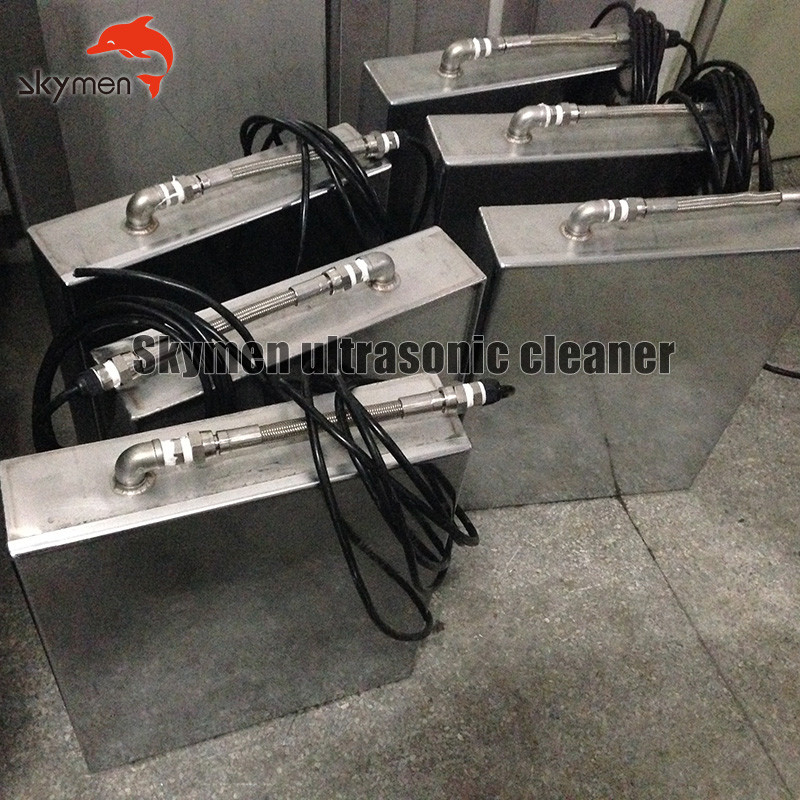

2400W Immersed Transducers Under water Ultrasound Cleaning Ultrasonic Cleaner
Parameter
| Model No. | JP-1048I |
| Function | Ultrasonic Cleaning |
| Ultrasonic Frequency | 28/40KHz |
| Material | SUS304 |
| Transducer | 48pcs |
| Time setting | 1-99 hours adjustable |
| Power Supply | AC220V/ 50Hz |
| Ultrasonic Power | 2400W (40%-100% adjuatable) |
| Box Size (LxWxH) | 600*450*100mm (L*W*H) |
| Generator | 1 set |
| Wire method | Rigid tube connect to box |
| N.W./G.W. | 60KG/70KG Packed by plywood box |
| Quantity | 1pcs |
Other size for your choice:
| Model | Tube Size | Transducers | Ultrasonic Power | Weight | Frequency | Generator |
| (D*H)mm | (pcs) | (W) | (KG) | (Khz) | (set) | |
| JM-1003 | 57*180 | 3 | 150 | 3 | 28/40 | 1 |
| JM-1006 | 57*300 | 6 | 300 | 5 | 28/40 | 1 |
| JM-1012 | 57*550 | 12 | 600 | 10 | 28/40 | 1 |
| JM-1018 | 57*750 | 18 | 900 | 15 | 28/40 | 1 |
| JM-1024 | 57*1000 | 24 | 1200 | 20 | 28/40 | 1 |
| JM-1036 | 57*1520 | 36 | 1800 | 30 | 28/40 | 1 |
| Model | Plate Size | Transducers | Ultrasonic Power | Generator | Frequency | Sample Price | 2-20pcs |
| (L*W*H)mm | (pcs) | (W) | (set) | (KHz) | ($) | ($) | |
| JP-1006I | 305*205*100 | 6 | 300 | 1 | 28/40 | 430 | 385 |
| JP-1012I | 355*305*100 | 12 | 600 | 1 | 28/40 | 550 | 465 |
| JP-1018I | 340*280*100 | 18 | 900 | 1 | 28/40 | 600 | 525 |
| JP-1024I | 430*280*100 | 24 | 1200 | 1 | 28/40 | 680 | 630 |
| JP-1030I | 460*370*100 | 30 | 1500 | 1 | 28/40 | 750 | 700 |
| JP-1036I | 550*450*100 | 36 | 1800 | 1 | 28/40 | 840 | 775 |
| JP-1048I | 600*450*100 | 48 | 2400 | 1 | 28/40 | 1220 | 1130 |
Feature:
1. The default frequency is 28/40KHz, if need other frequency(20/68/80/132KHz), then need to quote.
2. Tank material is SUS304, if need SUS316, then price is 20% higher
3. There is no Skymen Logo for this series machine on sale, can put customer's logo, MOQ is 2pcs.
4. This series machine is mainly for distributor to take up market.
5. All the box can be put in water to working directly, customer needs to weld tank by himself.

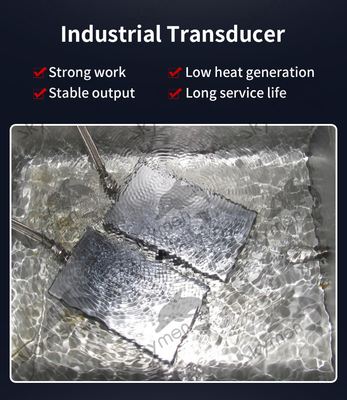

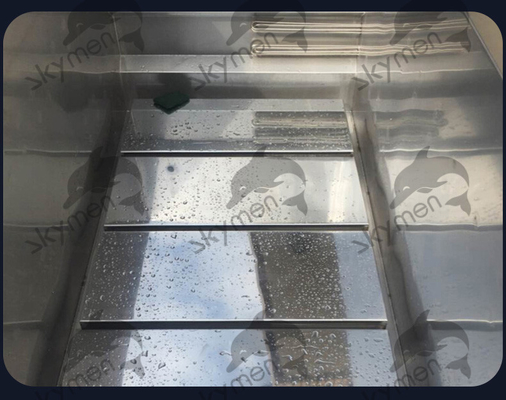

Actual usage scenarios
