Product Details:
|
| Material: | SUS 304/316 | Tube Size: | 57*750mm |
|---|---|---|---|
| Frequency: | 28/40KHz | Ultrasonic Power: | 150-1800W |
| High Light: | 1800W submersible ultrasonic transducer,SUS 304 submersible ultrasonic transducer,SUS Immersible ultrasonic transducer |
||

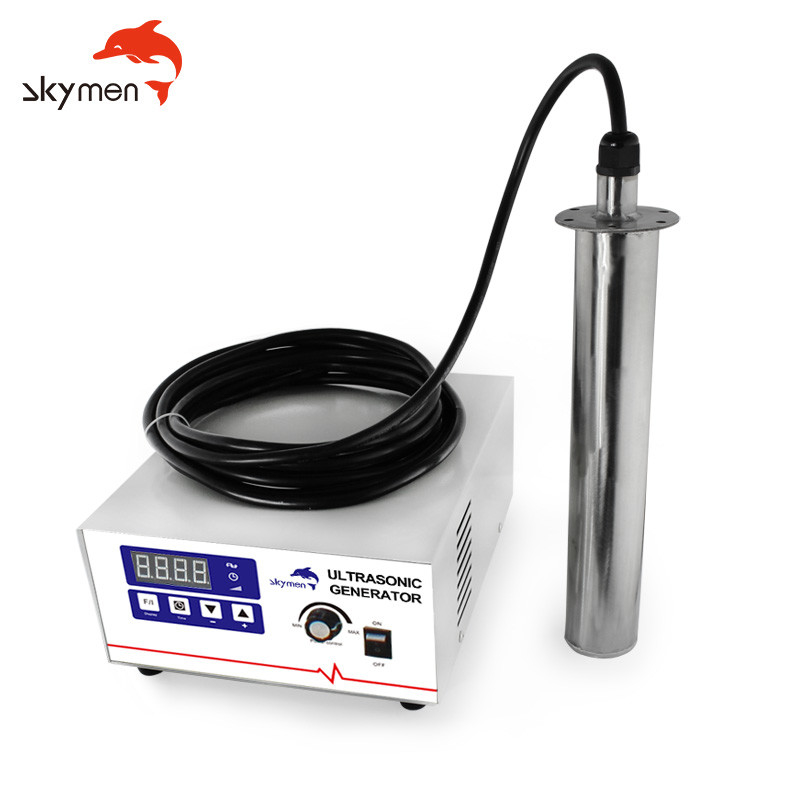

Waterproof Submersible Industrial Ultrasonic Cleaner Transducer Tube for Cleaning Tank 40/28kHz
Function:
Ultrasonic cleaning systems are composed of a signal generator, an ultrasonic transducer and a cleaning tank. The transducer changes the electrical high-frequency signal from the generator into ultrasonic sound waves in the cleaning solution. Due to this key role, it is important to choose a transducer that will work well with the generator and cleaning tank but also perform as expected for the cleaning application.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-1018m |
| Ultrasonic power | 0-900W Adjustable |
| Frequency | 28/40KHz |
| Box material | SUS304 / 316 |
| Tube size | 57*750mm |
| Timer | 0-90mins adjustable |
| Certificate | ISO9001:2008|CE & RoHS |
Size could be customized
Same series of transducer box:
| Series | Submersible Ultrasonic Transducers Tube | |||||
|
Model |
JP-1003M | JP-1006M | JP-1012M | JP-1018M | JP-1024M | JP-1036M |
|
Frequency(KHz) |
28/40 | 28/40 | 28/40 | 28/40 | 28/40 | 28/40 |
|
Unit size(mm) |
57*180 | 57*300 | 57*550 | 57*750 | 57*1000 | 57*1520 |
|
Transducers/Power (PCS/W) |
3/150 | 6/300 | 12/600 | 18/900 | 24/1200 | 36/1800 |
|
Generator
|
External | External | Built-in | Built-in | External | External |
|
Max power(KW)
|
0.15 | 0.3 | 0.6 | 0.9 | 1.2 | 1.8 |
Before and after :
Why should I choose the ultrasonic cleaner?
1-Traditional cleaning way:
Before ultrasonic cleaning , we usually cleaning by hand,it is not easy to clean a lot of dirt, and some cracks.
2-Ultrasonic cleaning:
About ultrasonic cleaning, blind holes, deep holes and so on, can be easily clean completely and effectively.
Hand washing, steam cleaning and high-pressure water jet can not do this good job.
3-Better than traditional cleaning way:
So ultrasonic cleaning machine will do better job and cleaning effect is better.
It saves time,labor and money.
Skymen has a complete line of ultrasonic transducers to meet the most demanding industrial cleaning requirements. Typical is the 40 kHz ultrasonic transducer, which will deliver 600 W or 1200 W of power, operate in up to 100 degrees centigrade liquids and which comes in a rugged hermetically sealed 304/316L stainless steel housing. Skymen can help customers with their selection of ultrasonic transducers based on the company's long-standing expertise in the ultrasonic cleaning field and can follow up recommendations with offers from their full line of transducers.
Contact me for Customized Transducer Tube Size.
