Product Details:
|
| Material: | SUS 304/316 | Boxes Size: | 305*205*100mm |
|---|---|---|---|
| Frequency: | 28/40KHz | Ultrasonic Power: | 300-3600W |
| High Light: | 3600W Ultrasonic Cleaner Transducer Boxes,SUS Ultrasonic Cleaner Transducer Boxes,Cleaning Tank ultrasonic cleaner piezoelectric transducer |
||

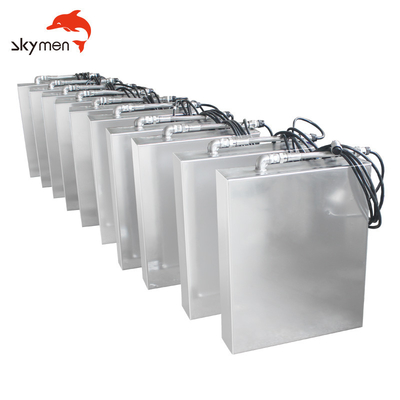

Immersible Industrial Ultrasonic Cleaner Transducer Boxes for Cleaning Tank 40/28kHz Drop-in Piezo Industry Waterproof Submersible Units
Function:

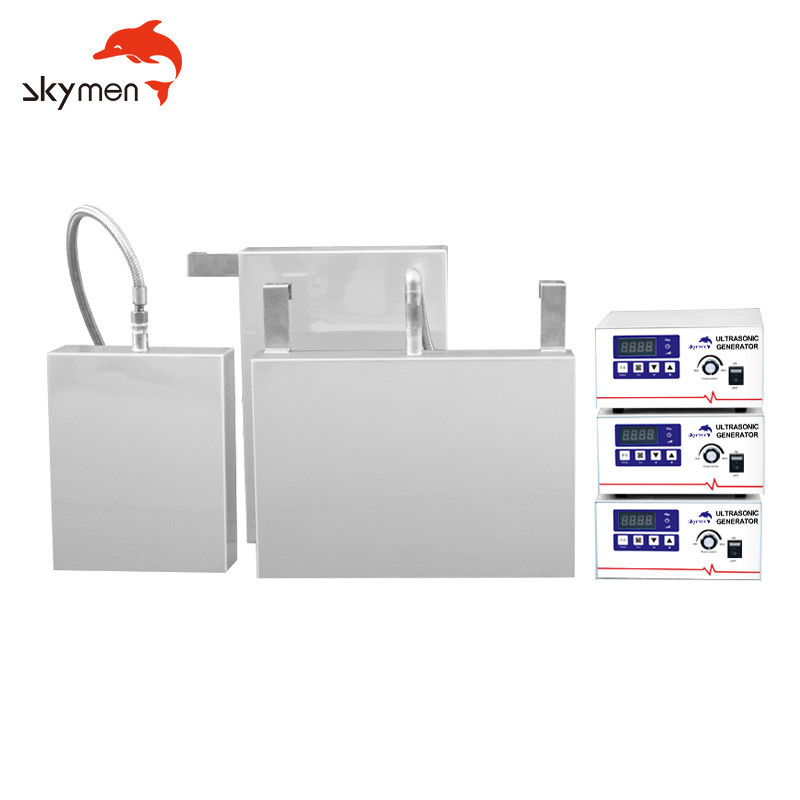

Ultrasonic cleaning systems are composed of a signal generator, an ultrasonic transducer and a cleaning tank. The transducer changes the electrical high-frequency signal from the generator into ultrasonic sound waves in the cleaning solution. Due to this key role, it is important to choose a transducer that will work well with the generator and cleaning tank but also perform as expected for the cleaning application.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-1006I |
| Ultrasonic power | 0-300W Adjustable |
| Frequency | 28/40KHz |
| Box material | SUS304 / 316 |
| Box size | 305*205*100mm |
| Timer | 0-90mins adjustable |
| Certificate | ISO9001:2008|CE & RoHS |
Size could be customized

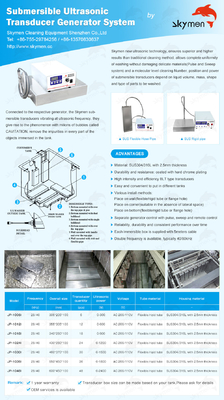

Same series of transducer box:
| Series | Submersible Ultrasonic Transducers | ||||||
|
Model |
JP-1006l | JP-1012I | JP-1018I | JP-1024l | JP-1030l | JP-1036l | JP-1048l |
|
Frequency(KHz) |
28/40 | 28/40 | 28/40 | 28/40 | 28/40 | 28/40 | 28/40 |
|
Unit size(mm) |
305*205*100 | 355*305*100 | 406*305*100 | 500*355*100 | 550*406*100 | 500*460*100 | 600*460*100 |
|
Transducers/Power (PCS/W) |
6/300 | 12/600 | 18/900 | 24/1200 | 30/1500 | 36/1800 | 48/2400 |
|
Generator
|
External | External | Built-in | Built-in | External | External | External |
|
Max power(KW)
|
0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 |
Before and after :
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
Skymen has a complete line of ultrasonic transducers to meet the most demanding industrial cleaning requirements. Typical is the 40 kHz ultrasonic transducer, which will deliver 600 W or 1200 W of power, operate in up to 100 degrees centigrade liquids and which comes in a rugged hermetically sealed 304/316L stainless steel housing. Skymen can help customers with their selection of ultrasonic transducers based on the company's long-standing expertise in the ultrasonic cleaning field and can follow up recommendations with offers from their full line of transducers.
Contact me for Customized Transducer Pack Size.
