Product Details:
|
| Material: | SUS 304/316 | Tank Capacity: | 30Liter |
|---|---|---|---|
| Tank Size: | 500X300X200 Mm | Frequency: | 40KHz |
| Power Supply: | AC 220V / AC 110V | Degas: | Yes, Prevent Oxidation |
| High Light: | 30L Benchtop Ultrasonic Cleaner,Digital Timer Benchtop Ultrasonic Cleaner,Touch Control 30L Ultrasonic Cleaner |
||

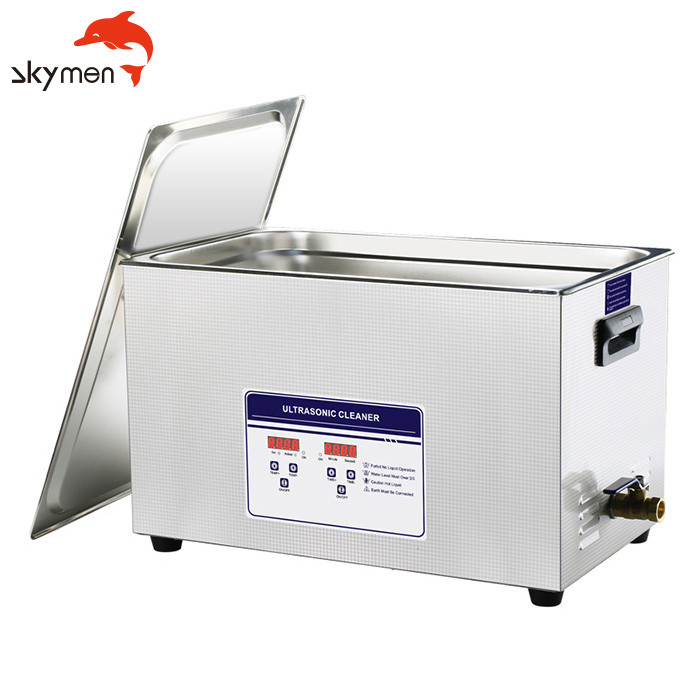

30L JP-100S Benchtop Series Industrial Ultrasonic Cleaner
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-100S |
| Ultrasonic power | 600W / 300W(Switchable) |
| Frequency | 40KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 500W |
| Tank capacity | 300L |
| Timer | Digital 0-30min adjustable |
| Heater | Room temperature~80℃ |
| Voltage | AC 110V, AC 220V |
| Tank size | 500X300X200mm |
| Certificate | ISO9001:2008|CE & RoHS |
Size could be customized
Similar models with different tank volume:
| Model | Tank Size | Volume | Ultrasonic Power |
Heating Power |
Time Control |
| L*W*H (mm) | (L) | (W) | (W) | (min) | |
| JP-020S | 240X135X100 | 3.2L | 120/60W | 100W | 0-30min |
| JP-030S | 300X150X100 | 4.5L | 180/90W | 200W | 0-30min |
| JP-031S | 300X150X150 | 6.5L | 180/90W | 200W | 0-30min |
| JP-040S | 300X240X150 | 10L | 240/120W | 200W | 0-30min |
| JP-050S | 300X240X150 | 14.5L | 360/180W | 200W | 0-30min |
| JP-060S | 330X300X150 | 15L | 360/180W | 300W | 0-30min |
| JP-070S | 330X300X200 | 20L | 480/240W | 300W | 0-30min |
| JP-080S | 500X300X150 | 22L | 480/240W | 500W | 0-30min |
| JP-100S | 500X300X200 | 30L | 600/300W | 500W | 0-30min |
| JP-120S | 500X300X250 | 38L | 720/360W | 800W | 0-30min |

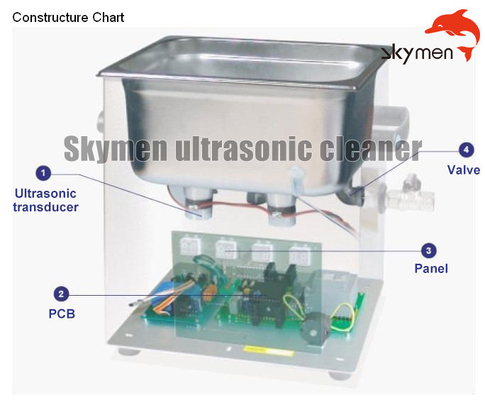

How does Ultrasonic Cleaner work?

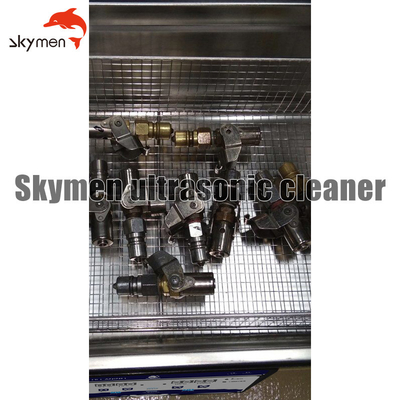

Before and after :
APPLICATION
1.Car service: DPF,Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
