Product Details:
|
Material: | SUS 304 | Tank Capacity: | 99L |
---|---|---|---|
Tank Size: | 550X450X400 Mm | Ultrasonic Power: | 1500W |
Heating Power: | 4500W | Transducer: | 30pcs |
High Light: | Filtration Drying Industrial Ultrasonic Cleaner,30pcs Transducer Industrial Ultrasonic Cleaner,SUS304 tank industrial ultrasonic bath |
1500W 99L JP-2030GH Industrial Ultrasonic Cleaner
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
Model | JP-2030GH |
Ultrasonic power | 1500W (30pcs transducers) |
Frequency | 40KHz / 28KHz |
Housing material | SUS304 |
Tank material | SUS304 / 316 |
Heating power | 4500W |
Tank capacity | 99L |
Timer | Digital 1-99 min adjustable |
Heater | Room temperature~150℃ |
Voltage | AC 380V, 3phase 50Hz |
Tank size | 550X450X400mm |
Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

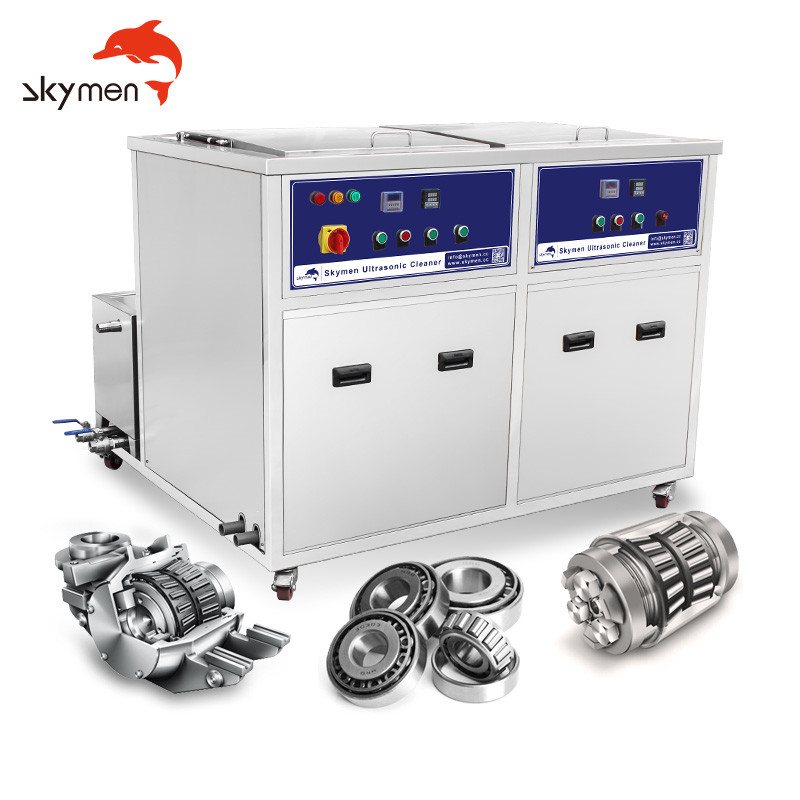

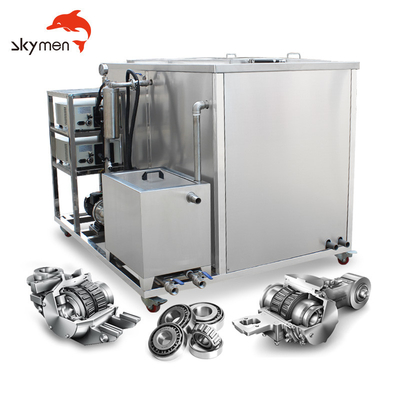

Images of this model:
Similar models with different tank volume:
Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-2012GH | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-2018GH | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-2024GH | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-2030GH | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
JP-2031GH | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
JP-2036GH | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-2048GH | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-2060GH | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-2072GH | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-2084GH | 1500X700X400 | 420L | 4200W | 15000W | 84pcs |
JP-2096GH | 1200X500X800 | 480L | 4800W | 15000W | 96pcs |
JP-2108GH | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-2120GH | 1000X800X800 | 640L | 6000W | 21000W | 120pcs |
JP-2132GH | 1000X1000X800 | 800L | 6600W | 24000W | 132pcs |
JP-2144GH | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
JP-2216GH | 1500X1000X1000 | 1500L | 10800W | 36000W | 216pcs |
How does Ultrasonic Cleaner work?
Advantage for commercial or industrial models :
1. Can get much better cleaning result for oil-remove , carbon-remove and rust-remove ;
2. Skymen commercial or industrial ultrasonic models , which the inner tank more bigger and ultrasonic power more powerful with much better cleaning effect , can meet customers longer time lasting cleaning ;
3. More safety for end users with chemicals inside cleaning and no worry about affecting machine outer casing .
Package by polywooden case:
Before and after :
