Product Details:
|
| Material: | SUS 304/316 | Tank Capacity: | 99Liter |
|---|---|---|---|
| Tank Size: | 550X450X400 Mm | Frequency: | 40KHz / 28KHz |
| Power Supply: | AC 220V 3 Phase 50Hz / AC 380V, 3 Phase 50Hz | Transducer: | 60pcs |
| High Light: | Firearms Industrial Ultrasonic Cleaner,SUS 304 tank Industrial Ultrasonic Cleaner,99L Ultrasonic Firearms cleaner |
||
1500W*2 99L JP-3060GH Industrial Ultrasonic Cleaner
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-3060GH |
| Ultrasonic power | 1500W*2 (60pcs transducers) |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 4500W*2 |
| Tank capacity | 99L |
| Timer | Digital 1-99h adjustable |
| Heater | Room temperature~150℃ |
| Voltage | AC 380V, 3phase 50Hz |
| Tank size | 550X450X400mm |
| Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

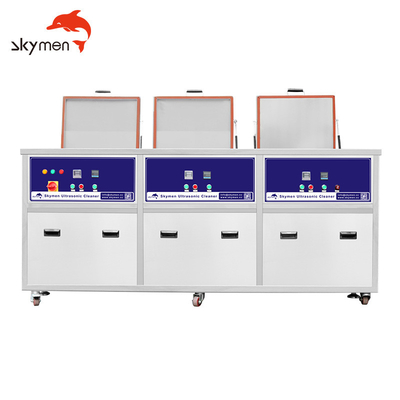

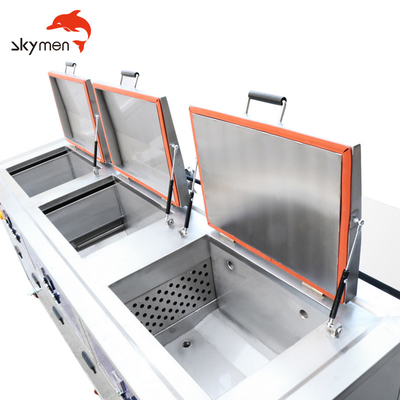

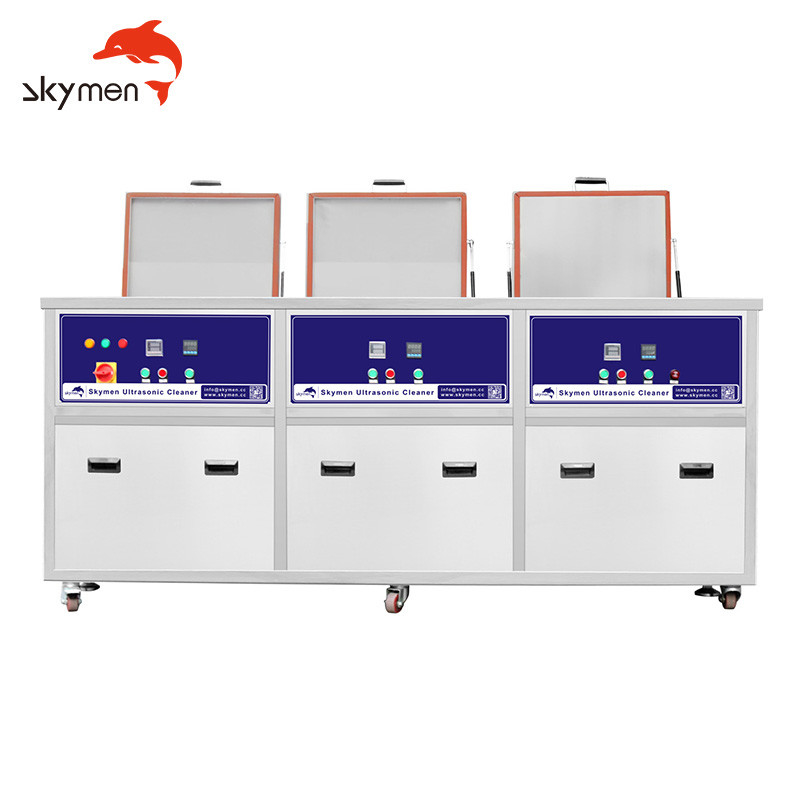

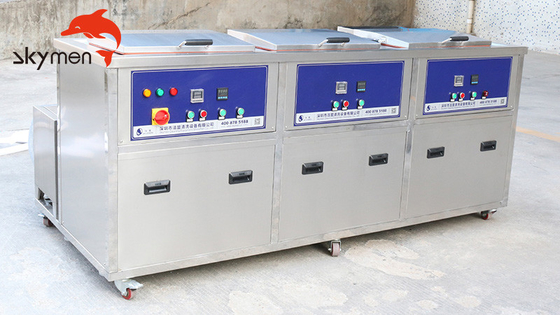

Images of this model:
Similar models with different tank volume:
| Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
| JP-3024GH | 500X300X250 | 38L | 600W*2 | 1500W*2 | 24pcs |
| JP-3036GH | 500X350X300 | 53L | 900W*2 | 1500W*2 | 36pcs |
| JP-3048GH | 550X400X350 | 77L | 1200W*2 | 3000W*2 | 48pcs |
| JP-3060GH | 550X450X400 | 99L | 1500W*2 | 4500W*2 | 60pcs |
| JP-3061GH | 800X300X400 | 96L | 1500W*2 | 4500W*2 | 30pcs |
| JP-3072GH | 600X500X450 | 135L | 1800W*2 | 4500W*2 | 72pcs |
| JP-3096GH | 700X500X500 | 175L | 2400W*2 | 6000W*2 | 96pcs |
| JP-3120GH | 800X600X550 | 246L | 3000W*2 | 6000W*2 | 120pcs |
| JP-3144GH | 1000X600X600 | 360L | 3600W*2 | 9000W*2 | 144pcs |
| JP-3168GH | 1500X700X400 | 420L | 4200W*2 | 15000W*2 | 168pcs |
| JP-3192GH | 1200X500X800 | 480L | 4800W*2 | 15000W*2 | 192pcs |
| JP-3216GH | 1000X900X600 | 540L | 5400W*2 | 18000W*2 | 216pcs |
| JP-3240GH | 1000X800X800 | 640L | 6000W*2 | 21000W*2 | 240pcs |
| JP-3264GH | 1000X1000X800 | 800L | 6600W*2 | 24000W*2 | 264pcs |
| JP-3288GH | 1200X1000X800 | 960L | 7200W*2 | 27000W*2 | 288pcs |
| JP-3432GH | 1500X1000X1000 | 1500L | 10800W*2 | 36000W*2 | 432pcs |
How does Ultrasonic Cleaner work?
Firearms ultrasonic cleaning machine:
Suitable for disassembly and cleaning of various types of firearms (precision instruments cannot be added for cleaning),Industries tank made of 2MM thick 304 stainless steel. Tank and shell made of quality stainless steel. The capacity can be customized by you to correspond to the size of the product.Professional testing, quality assurance. Build-in timer, temperature controller and counter down buzzer high quality components, Clear circuit perfect to clean roller, anilox integrated design, easy maintenance. Customized design and configuration are acceptable.
Before and after :
