Product Details:
|
| Material: | SUS 304/316 | Tank Capacity: | 99L |
|---|---|---|---|
| Tank Size: | 550X450X400 Mm | Unit Size: | 820*1150*835 Mm |
| Ultrasonic Power: | 1500W | Heating Power: | 4500W |
| Frequency: | 40KHz / 28KHz | Power Supply: | AC 220V 3 Phase 50Hz / AC 380V, 3 Phase 50Hz |
| Transducer: | 30pcs | Model: | JP-300G |
| High Light: | twin tanks car parts ultrasonic cleaner,SUS304 tank car parts ultrasonic cleaner,twin tanks ultrasonic automotive parts cleaner |
||
1500W 99L JP-300G For Cleaning hardware parts with filtration cycle
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt.
For filtration cycle syetem:
1-It will prolong the service life of cleaning agent which will save a lot of cleaning agent for you.
2-Reduce emissions and prevent enviromental pollution.
3-Filter oil and dirt to prevent secondary pollution.
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-300G |
| Ultrasonic power | 1500W (30pcs transducers) |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 4500W |
| Tank capacity | 99L |
| Timer | Digital 1-99 min adjustable |
| Heater | 0~80℃ |
| Voltage | AC 220V, 3phase 50Hz AC 380V, 3phase 50Hz |
| Tank size | 550X450X400mm |
| Unit size | 820*1150*835mm |
| Packing size | 880*1210*955 Wooden case |
| N.W. | 127 Kg |
| G.W. | 132 Kg |
| Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

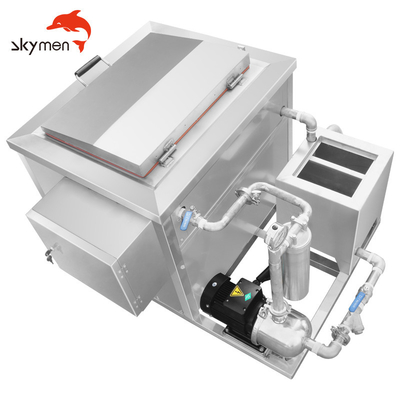

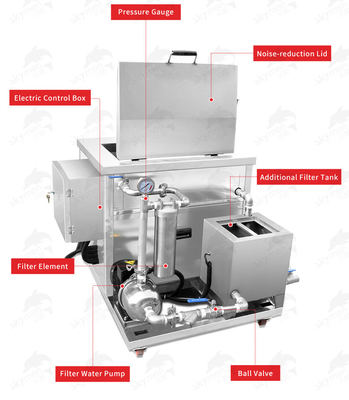

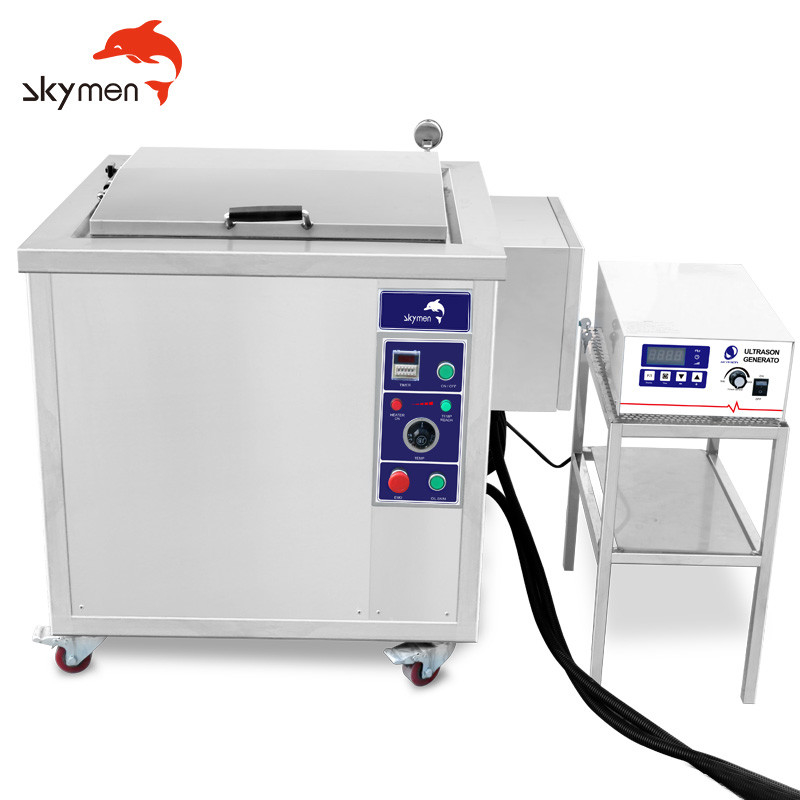

Images of this model:
The whole set machine including:
1* cleaning machine
1* lid
1* basket
Similar models with different tank volume:
| Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
| JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
| JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
| JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
| JP-300G | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
| JP-301G | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
| JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
| JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
| JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
| JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
| JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
| JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
How does Ultrasonic Cleaner work?
How to use an ultrasonic cleaner ?
Cleaning prior to lacquering
Ultrasonic clean 130° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Brulin 815GD, 12 ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen
Cleaning to remove calcium buildup (replaces "chem-clean")
Ultrasonic clean <110° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Ultra-power 132, 1 to 1½ ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen
Package by polywooden case:
Before and after :
