Product Details:
|
| Tank Size: | 600*500*450 (LxWxH) | Ultrasonic Frequency: | 28khz Or 40khz |
|---|---|---|---|
| Ultrasonic Max Power: | 3600W | Heater: | To 99°C |
| Optional: | Oil Filtration System | Timer: | 1~99 Hours |
| Heating Power: | 4.5KW, Hot Plate | Material: | Stainless Steel |
| Application: | Engine Block,Engine Parts;Electronics And PCBs; | ||
| High Light: | 35 Gallons Ultrasonic Pcb Cleaning Machine,Twin Tanks Ultrasonic Pcb Cleaning Machine,3600W Heating Ultrasonic Pcb Cleaner |
||

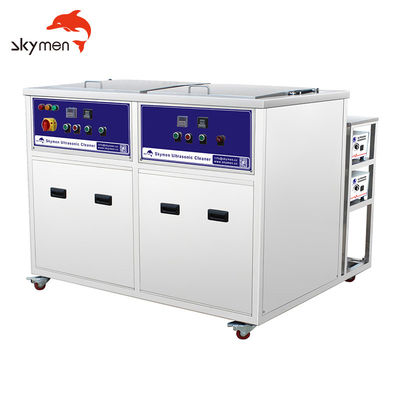

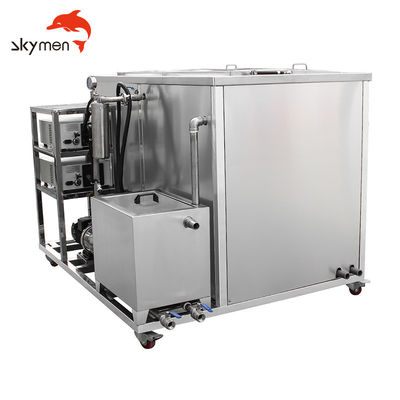

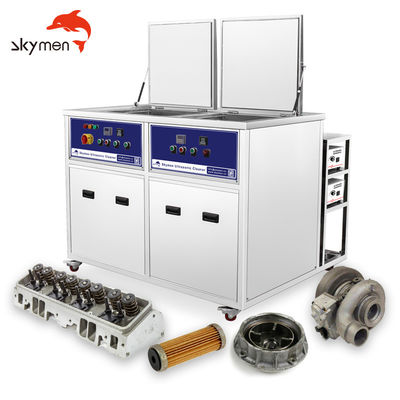

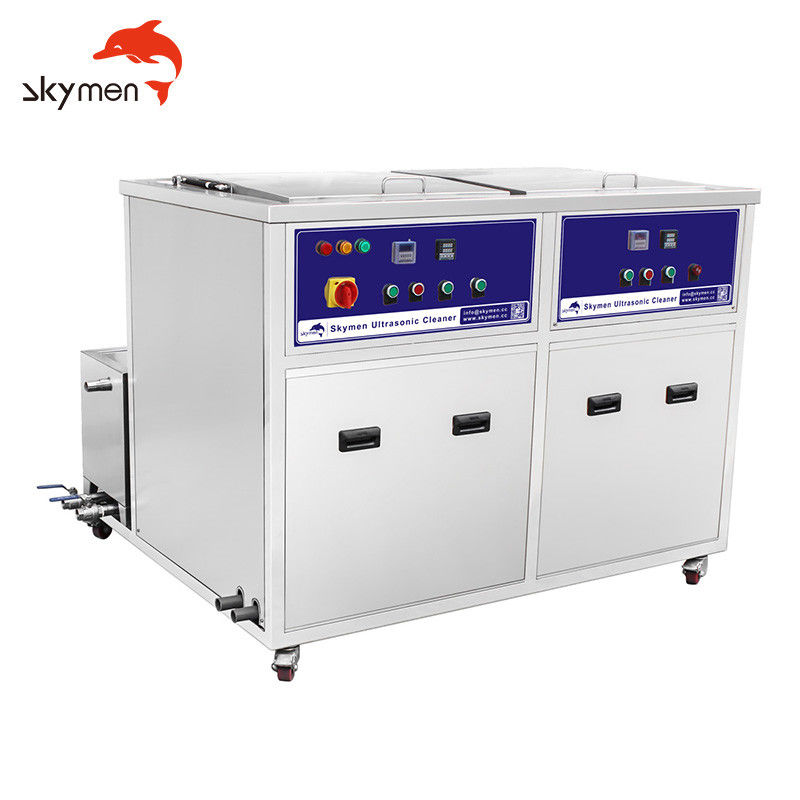

Professional Ultrasonic Cleaner with 2 chambers for Heat pipe and accessory clean
JP-2072 is a twin tank ultraosnic cleaner, offers a precisous cleaning solution for:
plastic molding equipment
rubber molding equipment
stamping equipment
engines
fabricated parts
carburetors
machined components
subassemblies
exhaust manifolds
injectors
tooling
transmissions
cylinder blocks
ABS brake systems
drivetrain components
Twin Tanks Industrial Ultrasonic Cleaning Equipment Specification:
First tank: Ultrasonic cleaning with filtration and recycle system
Second tank: Ultrasonic rinsing (or Drying)
|
Ultrasonic cleaning machine with rinsing tank :
|
|
| Model | JP-2072 |
| Clean Tank Dimension(mm) | 550X400X350 |
| Rinsing tank dimension(mm) | 550X400X350 |
| Max. Capacity | 135 L/tank |
| Construction Case | SUS304 (Mirror shining image available) |
| Construnction Tank | SUS304 |
| Transducer Number | 72 pcs |
| Ultrasonic power(Max.) | 1800*2 W |
| Ultrasonic frequency | 40kHz |
| Temperature range | ~99C adjustable |
| Heating power | 4.5 KW |
| Timer | 1~99h |
| Drain | 1' Valve |
| Lid & Basket | Available, material: SUS304 |
| Cleaning Tank voltage | AC220V/AC380V 3phase |
| Generator Voltage | AC110V / 220V 1phase |
| Features | With double tank for cleaning and rinsing. With filtration system Multi-direction castors with brake; |

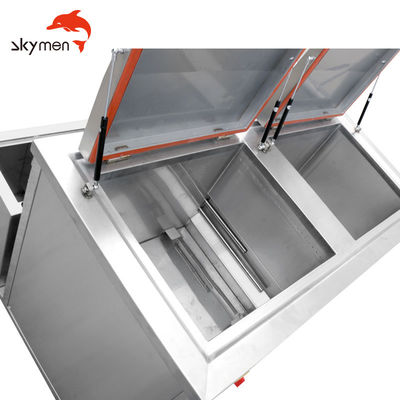

JP-2072 Construction :
Modern and cost effective sheet metal construction;
Valves at the back;
Adjustable feet;
Raised lip at tank edge;
Adjustable ultrasonic power,tender and powerfull to meet different ranges of items.
Features:
Cleaning Case Study
Ultrasonic cleaner is very helpful for the metal surface object, Comparing with conventinal cleaning ,it is good for void, blind holes
Customers Criteria: To remove material residue and oil
Material: Aluminum
Contamination prior to cleaning: Material residue/Staining.
Total number off: 2
Case study 2
Industrial ultrasonic cleaner family:
We offer 2 Liters to 400 liters for your choice, tell us your requirements, We can offer the best solution base on your suituation.
Main Applications
Automative industrial,Engine parts;
Tool and mould cleaning,Filters
Electronics and PCBs;
Manufacturing equipment;
Medical and Sciences instrument;
Jewellery and watch.
Package
|
Packing , loading, delivery time |
|
|
Packing unit |
1set / wooden case |
|
Packing method |
Export wooden case |
|
Loading port |
Shenzhen |
|
Delivery time |
About 15 working days |
|
Minimum Order Quantity |
1 set |
|
Transport method |
By express company / air / sea |
Competitive Advantage:
