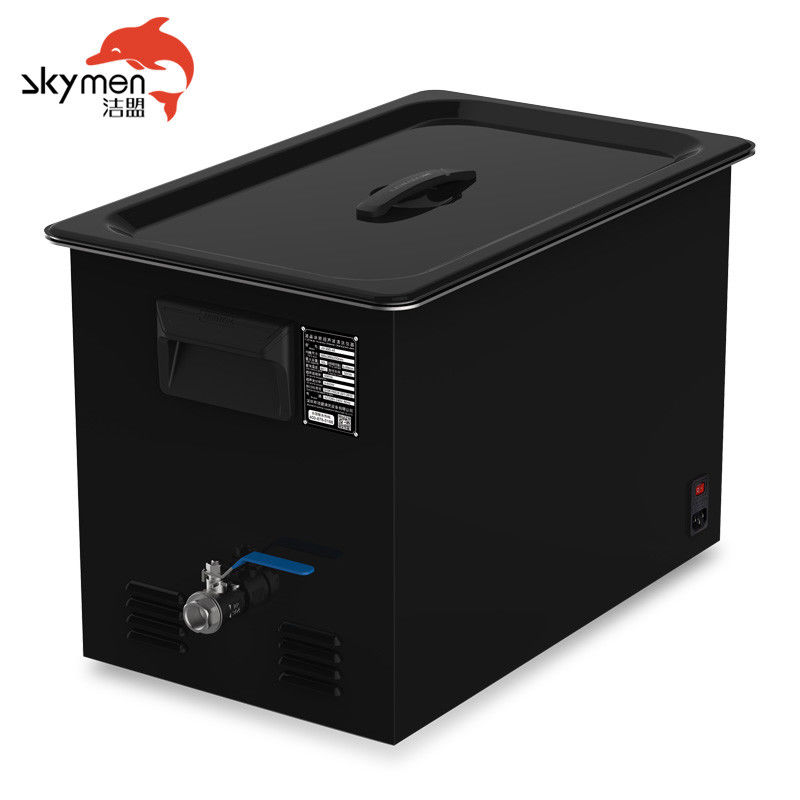

45KHz SUS304 600W Ultrasonic Cleaning Equipment For Descale

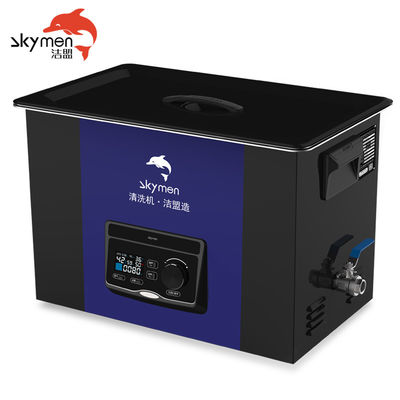

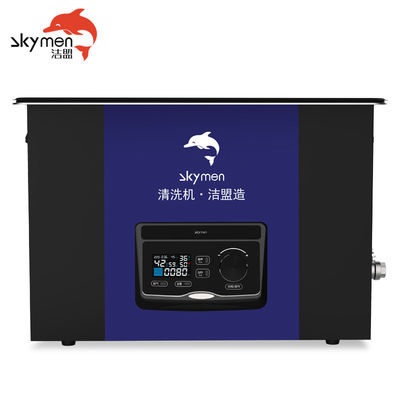

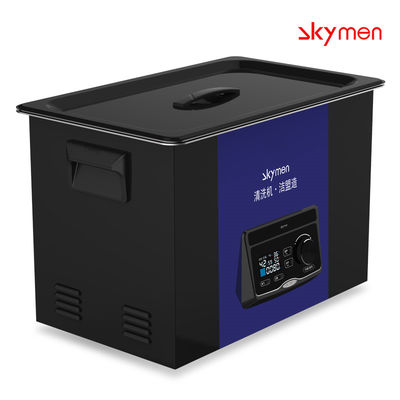

45/80KHz Double Frequency Digital Ultrasonic Cleaning For Descale 30L SUS304

A more complete ultrasonic generator should also have a feedback link, which mainly provides feedback signals in two aspects: the first is to provide an output power signal. We know that when the generator's power supply (voltage) changes. The generator's output power Changes will also occur. At this time, it is reflected in the transducer that the mechanical vibration fluctuates, resulting in unstable cleaning effect. Therefore, it is necessary to stabilize the output power and adjust the power amplifier accordingly through the power feedback signal to make the power
Amplify and stabilize.
The second is to provide a frequency tracking signal. When the transducer is working at the resonant frequency, its efficiency is the highest and the work is the most stable. The resonant frequency of the transducer will change due to assembly reasons and work aging, of course this change The frequency only drifts, and the change is not very large. The frequency tracking signal can control the signal generator, so that the frequency of the signal generator can track the resonant frequency of the transducer within a certain range. Let the generator work in the best condition. Of course, with the development of modern electronic technology, especially the microprocessor (uP) and signal processor (DSP), the function of the generator is becoming more and more powerful, but no matter how it changes, its core function should be the content mentioned above. It's just that each part is implemented with different technologies.

Product Show:

Application Area:

Industrial Ultrasonic Cleaning Machine



Immersible Transducer Plate

Image:

Model	Plate Size	Transducers	Ultrasonic Power	Generator	Suitable tank
	(L*W*H)mm	(pcs)	(W)	(set)	(L)
JP-1006I	305*205*100	6	300	1	10~15
JP-1012I	355*305*100	12	600	1	30~40
JP-1018I	340*280*100	18	900	1	60~70
JP-1024I	430*280*100	24	1200	1	70~80
JP-1030I	460*370*100	30	1500	1	90~100
JP-1036I	550*450*100	36	1800	1	130~140
JP-1048I	600*450*100	48	2400	2	170~180

Immersible Transducer Tube

Image:

Model	Tube Size	Transducers	Ultrasonic Power	Generator	Length of wire
	(D*H)mm	(pcs)	(W)	(set)	(M)
JM-1003	57*180	3	150	1	1.5
JM-1006	57*300	6	300	1	1.5
JM-1012	57*550	12	600	1	1.5
JM-1018	57*750	18	900	1	1.5
JM-1024	57*1000	24	1200	1	1.5
JM-1036	57*1520	36	1800	1

Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.

The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
