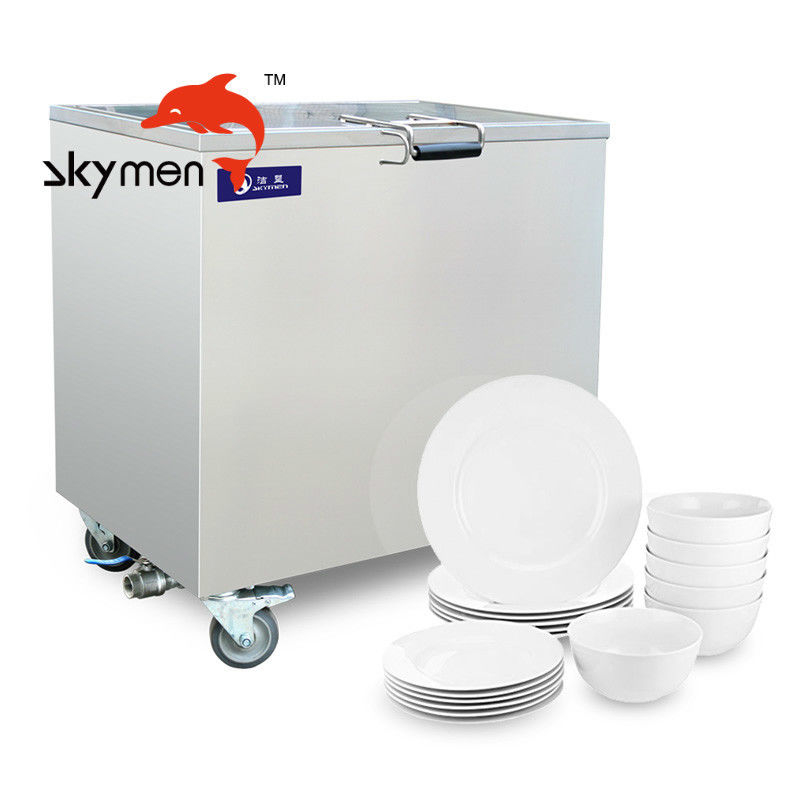

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L
Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L
Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L

Large Image :  Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-168
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L

Description
Model: JP-168L Tank Volume: 168L
Heating Power: 1500W Internal Tank Size: 655*410*625MM
Basket Size: 605*390*595MM Gross Weight: 120KG
High Light:

SUS316 Kitchen Soak Tank

,

2mm Thickness Kitchen Soak Tank

,

FCC Heated Tank Cleaning Machine

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L



PRODUCT SPECIFICATIONS
1
Model
JP-168
2
1st Tank

Function
Hot water cleaning/soaking
Tank Material
SUS 304 (SUS 316 can be customized)
Inner tank dimension
655*410*625mm
Tank Capacity
168L
Heating tube 1pcs
Heating Power
1500W
Time setting
0~99 hours
Temperature setting
Room temperature ~ 80°C adjustable
Thickness of tank
2mm
Drain value
Yes, in the right side of machine
Water inlet/outlet
Yes
Lid
Yes, hinged with machine body, with gasket
Handle of the basket Yes
Basket load
200KG
4
Packing
Overall size
755*510*785mm
Packing size
855*610*920cm
Packing detail
By wooden case(No logs, free of fumigation)
5
Warranty
1 year warranty for spare parts, all life technical support
6
Certificate
CE, RoHS; FCC, REACH
7
Production time
5 days if there is stock; 20 days if there is no stock

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 0

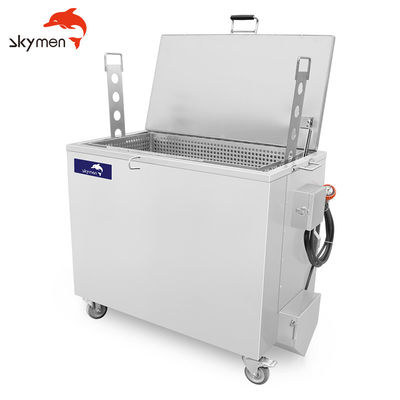

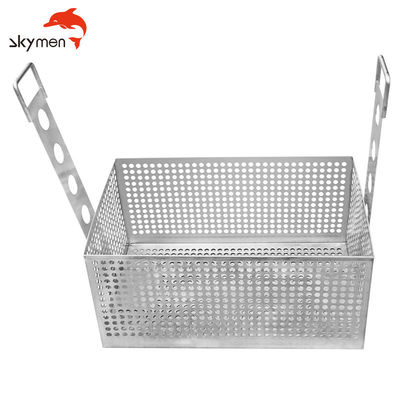

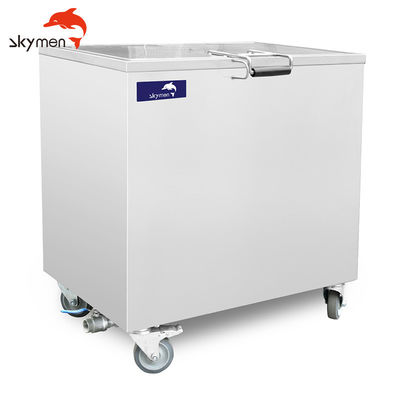

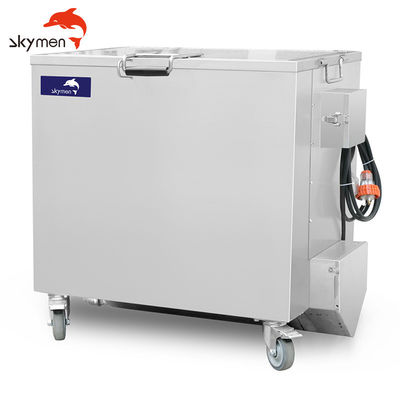

PRODUCT CONFIGURATION

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 1Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 2Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 3Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 4

Cleaning steps:
Fill in the tank with clean hot water to the max line; Add the detergent and stir the solution;
Plug the machine into the electrical outlet and switch on; The solution will remains at 80°C;
Load the cleaning items such as pots, pans, hood filters and more. Use the lifting basket to lower the items into the appliance. A light rinse is required before using items. Heavily carbonized equipment may need an additional soak.
Close the lid, leaving the items in the tank to soak, and walk away. It will clean continuously, remove fat, grease, oil and carbon build up .



Suggest cleaning time:

Item Cleaning time
Pot& Pans Initial soak 12 hours
Hot plates & grills Minimum of 12 hours
Deep fry baskets Minimum 3~4 hours
Hood filter 1 hour
Roasting pans Initial soak 12 hours
Gas rings& Cooker tops Minimum 12 hours
Bakery trays and racks Initial soak 12 hours
Serving dishes 1-2 hours
Oven Racks Initial soak 12 hours



Cleaning Effect show:

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 5Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 6Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 7

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 8

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 9

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 10



Application Industrial:

Restaurants;
Bakery shops;
Hotel;
Supermarkets;
Schools, colleges, caterers;
Food production facilities
Small tank: for canopy fitlers, grill tops, pans and small trays;
Medium tank(popular size): suitable for busy medium sized pans and large trays & oven racks;
Large tank: suitable for greasy filters, pots, baking trays, etc;
Skymen also offer custom sizes for larger applications.



Application Industrial:

Restaurants;
Bakery shops;
Hotel;
Supermarkets;
Schools, colleges, caterers;
Food production facilities
Small tank: for canopy fitlers, grill tops, pans and small trays;
Medium tank(popular size): suitable for busy medium sized pans and large trays & oven racks;
Large tank: suitable for greasy filters, pots, baking trays, etc;
Skymen also offer custom sizes for larger applications.

Soaking tank with different capacity:
Model Volume(L) Internal tank size(MM) Basket size(MM) Unit size(MM) Heating power Material
JP-168 168L 655*410*625 605*390*595 755*510*785 1.5KW SUS 304
JP-211 211L 750*450*625 700*430*595 850*550*785 1.5KW SUS 304
JP-258 258L 890*480*605 840*460*575 990*580*800 3KW
JP-274 274L 840*480*680 790*460*650 940*580*875 3KW SUS 304
JP-388 388L 1080*460*680 1060*440*650 1480*560*875 4.5KW SUS 304
JP-483 483L 1365*520*680 1315*500*650 1465*620*875 6KW SUS 304


Factory and Warehouse

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 11

Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 12Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 13Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 14Soaking Tank Machine for Muffin Pan with 1.5KW Heating Power 168L 15
