4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

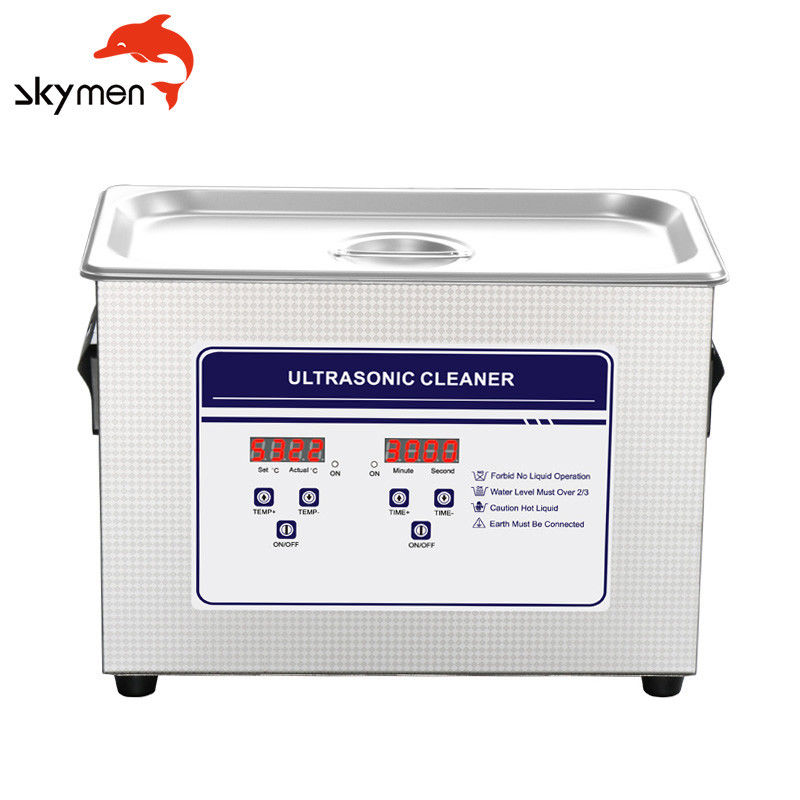

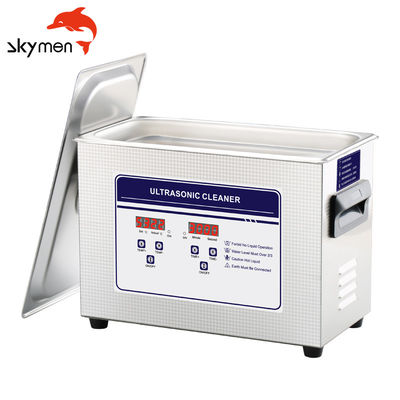

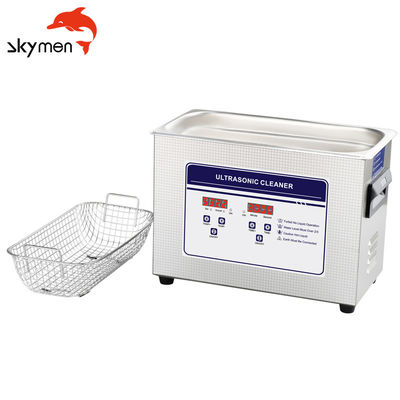

4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments

4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments
4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments 4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments 4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments

Large Image :  4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: 030S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 120$ per unit
Packaging Details: Carton
Delivery Time: 3 working days after payment
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detailed Product Description
Model: 030S First Tank Volume: 4.5L
Tank Size: 300*150*100mm Ultrasonic Power: 180W
Heating Power: 200W Frequency: 40KHz
Timer: 0~30 Minutes Adjustable Temperature: 20~80℃ Adjustable
Materials: Stainless Steel 304
High Light:

4.5L Ultrasonic Parts Cleaner

,

180W Ultrasonic Parts Cleaner

,

Surgical Instruments SS Ultrasonic Cleaner

Durable bench top Ultrasonic Cleaner 4.5L 180W For surgical instruments leb Musical Instruments



Specification

Model 030S
Ultrasonic frequency 40,000Hz
Material of tank SUS304
Material of shell SUS304
Capacity 4.5L
Timer 0~30 mins adjustable
Temperature 20~80℃ adjustable
Power supply type 1 AC 100~120V, 50/60Hz
Power supply type 2 AC 220~240V, 50/60Hz
Ultrasonic power 180W
Heating Power 200W
Tank inner dimension 300*150*100mm
Unit dimension 270*185*230mm
Inner Packing size 410*255*320mm
N.W. 4.75kg
G.W. 5.4kg
Warranty 1 year
Certificate SGS & FCC & CE & RoHS



Similar models with different capacity:

Stainless Bench Top
4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments 0
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency
(L) (L*W*H)mm (W) (W) (KHz)
008 0.8 150*85*65 35 0 40
009 0.9 150*135*65 60 100 40
010T 2 150*165*100 60 100 40
020S 3.2 240*135*100 120 100 40
030S 4.5 300*150*100 180 200 40
031S 6.5 300*150*150 180 200 40
040S 10 300*240*150 240 200 40
060S 15 330*300*150 360 300 40
080S 22 500*300*150 480 500 40
100S 30 500*300*200 600 500 40





Details:

4.5L 180W Ultrasonic Parts Cleaner For Surgical Instruments 1



Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

  • Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)
  • Instruments with movable parts should be disassembled to facilitate cleaning
  • Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
  • Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this
  • Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.



Application:

Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, printing industry.
