Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

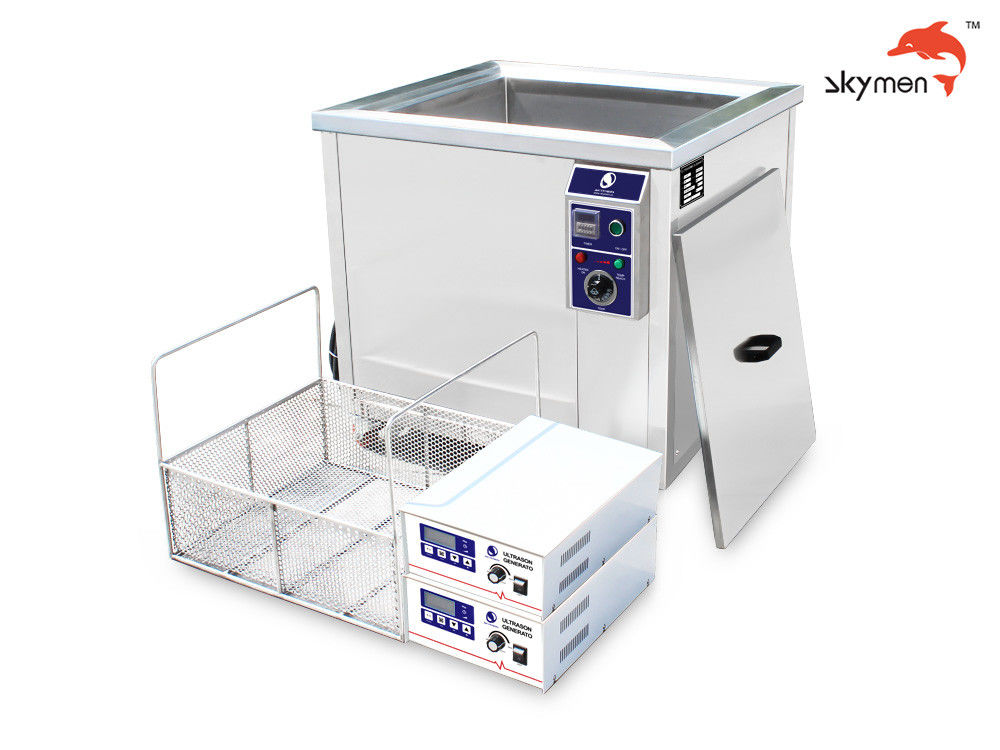

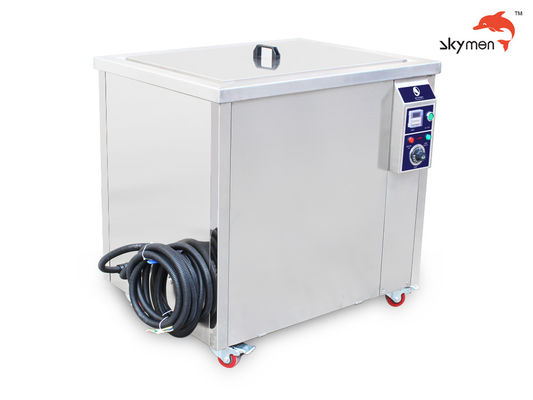

Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators

Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators
Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators

Large Image :  Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators

Product Details:

Place of Origin: China
Brand Name: Skymen
Certification: CE
Model Number: JP-600ST

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 1sets/ wooden case
Delivery Time: 15 working day
Payment Terms: Paypal / T/T / western Union
Supply Ability: 600pcs per month
Price:: nogotiation
Detailed Product Description
Product Name: Ultrasonic Cleaner Application: Oil Remove
Capacity: 264 Liters Ultrasonic Power: 3000W
Timer: 1~99 Hours Feature: Power Adjustable
Optioal: Rinsing Tank/drying Tank Frequency: 28khz/40khz
Material: Sus304/316 Heating Power: 6kw
Transducer: 60pcs Brand: Skymen
Certification: CE Machine Type:: Industrial Ultrasonic Cleane
Cleaning Process:: Hot Water Cleaning Cleaning Type: Industrial Ultrasonic Cleaner
Cleaning Process: Solvent Cleaning
High Light:

264L Industrial Ultrasonic Cleaner

,

3000W Industrial Ultrasonic Cleaner

,

Sus304 Digital Ultrasonic Cleaner

264L Industrial Ultrasonic Cleaner Large Ultrasonic Cleaner FOR Metal Plastic Radiators



For small parts cleaning, Skymen has benchtop standard cleaners varying from 2L to 30L;
for large parts cleaning, Skymen has industrial standard cleaners for your choice varying form 38L to 360L.
If above machines are not suitable, 1000L, 2000L, 5000L large customized machines are welcome.



ultrasonic equipment for automotive parts radiators Feather

1 quickly and stable cleaning ,low breakdown ,good quality with factory price, professional testing ,quality assurance

2 Powerful transducer and clear circuit,top quality steel made for body, cover and base

3 Digital timer and heating control,Adjustable frequency

4 Stainless steel basket, with 500kgs load weight5 Powerful transducer, clear circuit 6 high-power integrated module

7 High efficiency and keep precision,

8 auto water level control inspection

9 high effective, low costs , PLC control, LCD contact screen

10 cleanness-degree high, The cleanness of consistent, On the surface no damage

11.original German transducer,above 90% output ultrasonic power

12.Quality assure 1 year,provide products as your requirement

ultrasonic equipment for automotive parts radiators

Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators 0



Cleaning video of this machine



Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators 1



Application of Ultrasonic Immersible Transducer

immersible ultrasonic transducers This series of products is suitable to cleaning work pieces of various industries;such as plating components cleaning before plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon chips,glass vessels,bijouterie,spectacle frame, etc.

· Pre-plating cleaning for parts to be plated, oil and dirt removing for metal mechanical. Parts, cleaning semi-conductor Si-chips, spectacle frames and glass vessels.

· Lens, sunglasses, short-sighted mirror and prism, the microscope, camera, glass equipment, etc.

electroplating accessories, watch & clock accessories, metal accessories, terylene filter core, semiconductor silicon, tools, lens, spectacle frames, jewelry and glass containers...etc.



Ultrasonic Frequency Choices

Ultrasonic operating frequency is perhaps the single most important consideration when choosing an ultrasonic cleaning system. Each frequency has its own unique characteristics. Low frequencies are used for large, un-detailed parts with heavy contamination and produce un-even cleaning action in the fluid, while higher frequencies produce more evenly distributed cleaning action, and have the ability to penetrate small blind holes,

threaded areas, and other detail. More frequency choices 68kHz / 80kHz / 120kHz are available.

Choosing an ultrasonic frequency for a magnetostrictive system is easy, since there really is no choice at all. Magnetostrictive system designs typically operate at frequencies below 30kHz, making these systems unsuitable for most ultrasonic cleaning applications. Most parts being cleaned ultrasonically require the removal of lightly-bonded contaminants on the surface of precision parts, applications which are addressed

with 40kHz, 80kHz orCROSSFIRE Multiple Frequency Ultrasonics operating in this range. Low frequencies would produce in-consistent cleaning results on such parts, and parts may be damaged by cavitational erosion. Although Zenith manufactures 28kHz ultrasonic systems, they are rarely recommended for any ultrasonic cleaning applications, unless they are combined with 40kHz in a CROSSFIRE system. This is the direct result of the thousands of sample parts which have been test-cleaned ultrasonically at Zenith. Our Ultrasonic Testing Service is used to develop complete processes for our potential customers. Parts are submitted and tested in various ultrasonic frequencies and cleaning agents to determine the best process to use for a given application. Low frequency ultrasonic cleaning systems in the 25kHz-30kHz range never produce a better cleaning result than higher frequency systems do. In fact, it is exactly the opposite. Parts are cleaned more effectively in systems operating at 40kHz and above. Since these systems are less damaging to components, quieter in operation, and better at cleaning in fine detailed areas, these systems are usually recommended for any cleaning application.





features:

1.Stainless steel tank has resistance to wear and long work life.

2.Tank capacity: customized, with rinsing tank , drying tank

3. With Stainless steel basket

4.A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.

5. Industrial control chip microcontroller.flexible circuit boards control, more secure & stable

6.Temperature tunable from 20°C to 80°C

7. With drainage.

Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators 2Sus304 3000W 264L Industrial Ultrasonic Cleaner For Radiators 3



Competitive Advantage:


  1. Material : SUS304/316L with 2mm thickness
  2. 15 years experience engineer will design the machine for you
  3. Filtration System: for heavy duty oil removing, cycle cleaning solvent, prevent second polution and better cleaning effects.
  4. PCB Board: manufactured by Skymen factory, more stable



Skymen JTS Series:


Skymen
Model No.

JTS-1030

JTS-1036

JTS-1060

JTS-1072

JTS-1108

JTS-1144

TANK
DIMENSION(mm)

500x406x500

500x460x550

700x650x650

1000x600x600

1000x900x600

1200x1000x800

OVERALL
DIMENSION(mm)

680x586x850

680x640x900

900x850x1000

1200x800x950

1240x1140x950

1440x1240x1150

MAX. CAPACITY

101L

126L

295L

360L

540L

960L

CONSTRUCTION
CASE

SUS 304 (MIRROR SHINING IMAGE AVAILABLE)

CONSTRUCTION
TANK

SUS 304 / 316L

ULTRASONIC POWER(MAX.)

1500W

1800W

3000W

3600W

5400W

7200W

ULTRASONIC
FREQUENCY

28kHz/40kHz/68kHz/80kHz/120kHz

MAX. HEATING
 TEMP.

20~80C ADJUSTABLE

HEATING POWER

3KW

4.5KW

6KW

9KW

12KW

24KW

TIMER

0~30min adjustable

DRAIN

¾" VALVE

LID & BASKET

TAKE-OFF / STRUT LID; SUS 304

CLEANING TANK’S
POWER
REQUIREMENT

AC220V/380V/415V/440V. 3

GENERATOR’S
POWER
REQUIREMENT

AC110V/ 220V / 240V, 1

GENERATOR

WITH SWEEP MODE AND REMOTE CONTROL

FEATURES

MULTI-DIRECTION CASTORS WITH BRAKE;
1 YEAR WARRANTY

Optional

FILTRATION SYSTEM (PUMP, SUS FILTER,
OIL CATCH CAN)




 Skymen 360L industrial ultrasonic cleaner as high quality Ultrasonic cleaning machine
Industrial High Sonic Power Ultrasonic Cleaning Machine
JTS series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.




Skymen 3 stage unit (multi-tank) ultrasonic cleaner machine

Industry

Cleaning objects

jewelry

Jewelry, diamond, gold, silver products,

machinery

Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools

electronics

PCB board, electronic parts, TV parts, computer parts

Auto industry

engine parts, gear box, shock absorber, auto nozzle, cylinder, valve

Dental& Medical

dental tools, medical tools, injector, surgery tools, dropper, glass container

Plating& painting

polishing parts, SUS cutter, tableware, plating

Food industry

Oven tray, boiler, bottles, bottle cap, filters

Optical& watch maker

optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand

textile

spinneret plate, rubber parts, plastic molds, toy

others

seal, flapper, coins, pottery, bank card, IGBT









Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.

Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.

Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.

Suggestion and drawing is professional for you.

Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
