Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

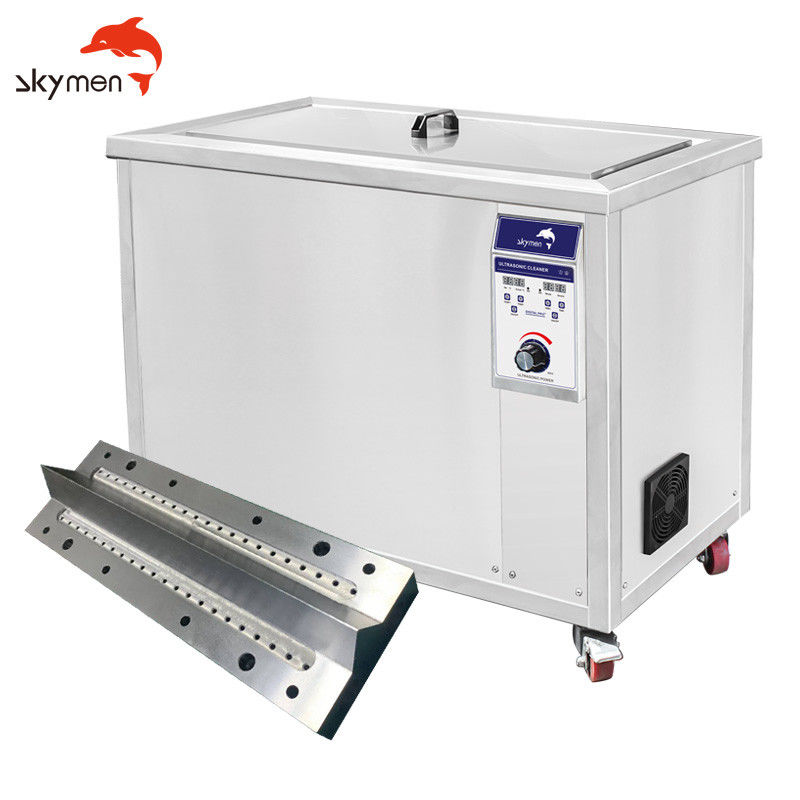

Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable

Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable
Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable

Large Image :  Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable

Product Details:

Place of Origin: China
Brand Name: skymen/OEM
Certification: CE/FCC/RHoS/REACH
Model Number: JP-301ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD1700/unit
Packaging Details: wooden case
Delivery Time: 10-15 days after your payment
Payment Terms: T/T, L/C, Paypal
Supply Ability: 5000 units per week
Detailed Product Description
Material: SUS 304/316 Tank Capacity: 96L
Tank Size: 800X300X400 Mm Unit Size: 1050*500*765 Mm
Paking Size: 1150*600*930 Mm Wooden Case Ultrasonic Power: 1500W
Heating Power: 4500W Timer: 1-99 Minutes Adjustable
Heater: 20~95C Adjustable Frequency: 40KHz / 28KHz
Power Supply: AC 220V 3 Phase 50Hz / AC 380V, 3 Phase 50Hz Transducer: 30pcs
Model: JP-301ST
High Light:

dual frequency ultrasonic cleaner

,

ultrasonic washing machine

96L hot sale mould of Meltblown die industrial ultrasonic cleaner For Removing Oil / Rust dirty



Function:

Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt



Features:

1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:96Liter, with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by skymen
9.Generator is high quality techinique designed and produced which have been used thousands of units by our USA and Europe customers.
10. circulation pump brand name: CNP (Famous brand)





Specificatoin:

Ultrasonic Frequency 40KHz/28KHz
Tank Material Stainless Steel SUS304
Tank Capacity 96L
Transducer 30PCS
Timer 1-99minutes adjustable
Heater 20°C to 95°C adjustable
Power Supply AC220V, 1 phase 50Hz,
AC110V, 1 phase 60Hz,
Heating Power 4500W, Digital Heating
Ultrasonic Power 1500W (40%-100% adjuatable)
Tank Size (LxWxH) 800x300x400mm
Unit Size
(LxWxH)
1050x500x765mm
Package Size (LxWxH) 1150x600x915mm (wooden case)
N.W./G.W. 105KG/110KG
Warranty 1 year



From 10 galles to 200 gallons ,size could be customized



Images of this model:





The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Unit size N.W Volume Ultrasonic
power
Heating
power
Timer Ultrasonic
generator
  L×W×H(mm) L×W×H(mm) KG (L) (W) (W) (min/Hour) /
JP-120ST 500x300x250 670*480*700 65 38 240-600 1500 1-99min Built-in
JP-180ST 500x350x300 680x530x700 70 53 360-900 1500 1-99min Built-in
JP-240ST 550x400x350 730x580x770 80 77 480-1200 3000 1-99min Built-in
JP-300ST 550x450x400 730x618x800 87 99 600-1500 4500 1-99min Built-in
JP-301ST 800x300x400 940x420x800 92 96 600-1500 4500 1-99min Built-in
JP-360ST 600x500x450 805x705x780 98 135 720-1800 4500 1-99hour external
JP-480ST 700x500x500 870x705x790 115 175 960-2400 6000 1-99hour external



How does Ultrasonic Cleaner work?

Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable 0



How to use an ultrasonic cleaner ?

Cleaning prior to lacquering

Ultrasonic clean 130° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Brulin 815GD, 12 ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen



Cleaning to remove calcium buildup (replaces "chem-clean")

Ultrasonic clean <110° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Ultra-power 132, 1 to 1½ ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen



Package by polywooden case:





Before and after :



Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable 1



Meltblown Die Ultrasonic Cleaning Machine 96L Tank 1-99 Minutes Adjustable 2
