Product Details:
|
| Frequency: | 40KHz | Tank Capacity: | 6.5L |
|---|---|---|---|
| Timer: | 1-30minutes , Digital Timer | Heater: | 20°C To 80°C |
| Voltage (v): | 110.220 | Ultrasonic Power: | 90W/180W Adjustable |
| Heating Power: | 200 W, Digital Heating | ||
| High Light: | SUS304 Tank Benchtop Ultrasonic Cleaner,Benchtop Ultrasonic Cleaner 6.5 Liters,90W ISO Table Top Ultrasonic Cleaner |
||

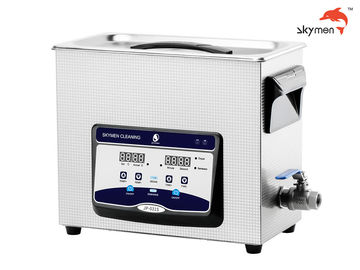

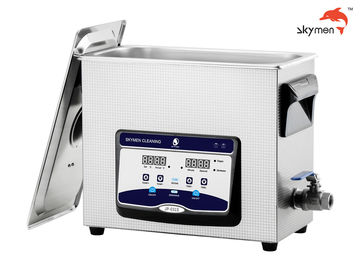

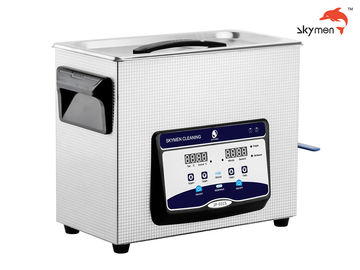

6.5 liters bench top ultrasonic cleaner SUS304 tank with degas and semi-wave function for Lab
How does an ultrasonic cleaner?
This is a method of cleaning both sweet and powerful.
Ultrasound form of pressure variations that propagate through the material immersed in a liquid. These high-frequency vibrations produce millions of tiny microscopic bubbles whose characteristic is to implode immediately, releasing high energy causing the detachment of impurities even in inaccessible corners. Meanwhile, the collapse of these bubbles generates movements in the bath, conducive to cleaning.
Water can get inside all crevices, every corner, every even the smallest cavities, the ultrasonic cleaner can clean complex parts and remove small particles that can not be cleaned by hand
This gentle cleaning method completely eliminates all impurities, dirt, oxidation, oil, grease, carbonized deposits and contaminants from all surfaces of objects that are in contact with the cleaning liquid.
Specifications:
| Ultrasonic Frequency | 40,000 Hz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 6.5 L |
| Timer | 1-30minutes , Digital timer |
| Heater | 20°C to 80°C |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz |
| AC 220 ~ 240V, 50 / 60 Hz | |
| Ultrasonic Power | 180W/90W adjustable |
| Heating Power | 200 W, Digital Heating |
| Tank Size | 300 x 150 x 150 mm ( L x W x H ) |
| Unit Size | 325 x 180 x 225 mm ( L x W x H ) |
| Package Size | 410 x 255 x 350 mm ( L x W x H ) |
| N.W. | 5.5 kg |
| G.W. | 6.5 kg |
1. Lower noise.The lid fully sealed,reduce noise
2. tank capacity:6.5L, with Digital timer & heater control
3.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
4.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
5.New update and tilted touch control panel,angle of 20 degree tilted,user-friendly easy operation
6,With degas function and have semiwave mode,with degas function to prevent oxidation
7,The heat dissipation is very good,update 3D heat radiating system,fast heat dissipation
8,The handle is anti-static anti-high temperature,not slippery hand, more security
9,Use imported brand transducer,the strength of cavitation get stronger,the cleaning effect gets even better
10,The tank Adopt industrial high quality SUS 304,thicken tank fromed by one time stamping without welding,with good corrosion resistance,heat resistance,seamless leak-proof
11,Stainless steel drain valve,the water outlet is made of high-quality stainless steel,corrosion-resistance and switch adjustable
12,Filtered drain holes,the drainage hole of cleaning machine increase the filter screen,convenient user to cleaning small parts,to prevent the parts from entering the drainage hole that cause unnecessary losses.
13,1 year warranty,and parts free to send for fix.
14,FCC CE ROHS ISO9001 SGS certification
| Digital timer&heater adjustable with degas series | ||||||||||
| Model | JP-020S | JP-030S | JP-031S | JP-040S | JP-050S | JP-060S | JP-070S | JP-080S | JP-100S | JP-120S |
| Capacity(L) | 3.2 | 4.5 | 6.5 | 10 | 14.5 | 15 | 20 | 22 | 30 | 38 |
| Tank size(MM) | 240*185*230 | 300*150*100 | 300*150*150 | 300*240*150 | 300*240*150 | 330*300*150 | 330*300*200 | 500*300*150 | 500*300*200 | 500*300*250 |
| Packing size(MM) | 270*185*230 | 330*200*235 | 375*200*275 | 380*290*280 | 370*270*325 | 400*350*280 | 400*300*200 | 585*330*280 | 585*327*333 | 680*450*450 |
| Frequency(KHz) | 40KHz | |||||||||
| Ultrasonic power (W) | 120/60 | 180/90 | 180/90 | 240/120 | 300/150 | 360/180 | 420/210 | 480/240 | 600/300 | 720/360 |
| Heating power(W) | 100 | 200 | 200 | 200 | 200 | 300 | 300 | 500 | 500 | 800 |
| Timer(min) | 0-30 minutes | |||||||||
| Heater(° C) | 20-80° C | |||||||||
| Tank Material | SUS304 | |||||||||
Application:
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
Products details:
Packing:
Ultrasonic bath*1
Stainless steel basket*1
Lid*1
Power cord*1
English manual*1
Skymen table top ultrasonic cleaner drawing:
