|Tank Size:||240*135*100mm||Unit Size:||270*185*230mm|
|Ultrasonic Power:||120W||Heating Power:||100W|
ultrasonic cleaning equipments,
pcb ultrasonic cleaner

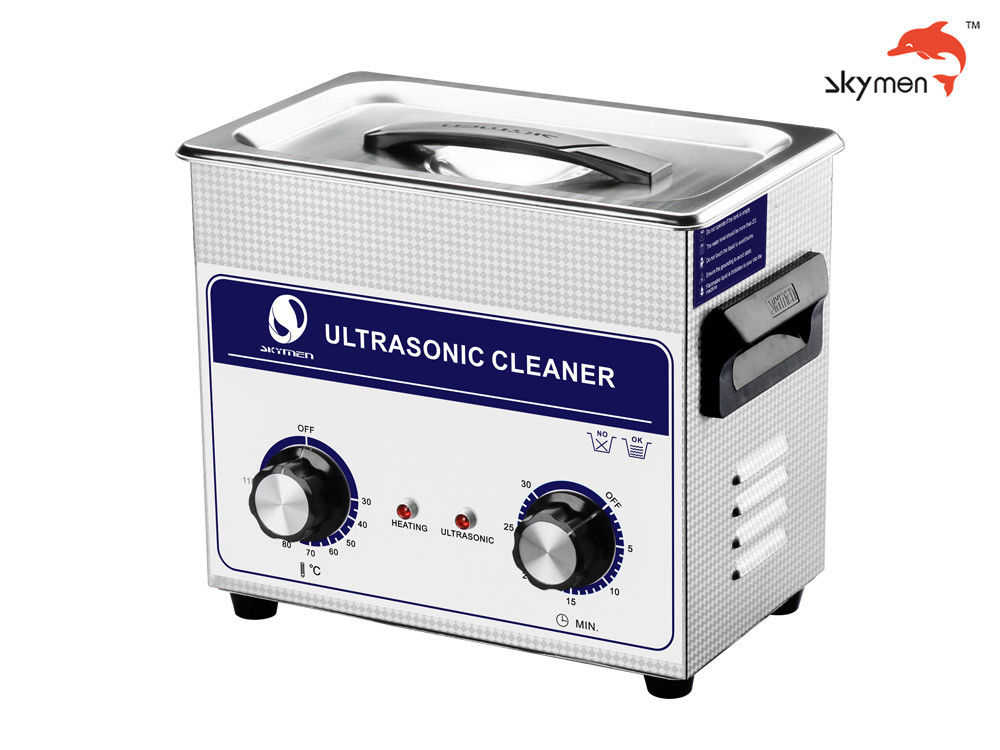

Medical Use Ultrasonic Cleaner 120W Ultrasonic Parts Washer 3.2L Mechanical Knob
What are advantages of injection mold ultrasonic cleaning system?
The process of cleaning injection mold components via ultrasonic bath offers significant advantages over traditional manual scrubbing. The use of abrasive techniques, of any kind, is detrimental to the tool surface, especially those that are highly finished. The ultrasonic method does not invade the surface of the steel the way conventional friction-based methods do. Ultrasonic cleaning uses a system called cavitation—the rapid forming and collapsing of millions of very small bubbles in a bath of water and suitable biodegradable cleaner. Although tiny, these little bubbles are tenacious fighters and will work their way into and around all mold-component surfaces—crevices, grooves, channels, blind holes … The ultrasonic process has proven itself to be extremely effective in removing the residues and contaminants from mold releases, burnt resin, and vent outgas without harming the surface of the steel.
The ultrasonic cleaning cycle takes 20 minutes for most applications, with additional time or cycles required for molds running high-temperature/gassy resins. Certain performance-enhancing additives (flame retardants or talc filler, for example) can also be detrimental to good mold-steel health without regular cleaning.
JP-020 product specification:
|Material of tank||SUS304|
|Material of shell||SUS304|
|Power supply type 1||AC 100~120V, 50/60Hz|
|Power supply type 2||AC 220~240V, 50/60Hz|
|Tank inner dimension||150*135*100mm|
|Inner Packing size||340*250*310mm|
|Big carton for 12pcs||520*355*655mm for 4pcs|
|Certificate||ISO9001:2008 & CE & RoHS|
1 x Digital Ultrasonic Cleaner
1 x Cleaning Basket
1 x Manual
