77 Liters Ultrasonic Cleaning Device 1200W Ultrasonic power For Spinneret In Textile Industry

China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
China Skymen Cleaning Equipment Shenzhen Co., Ltd certification
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

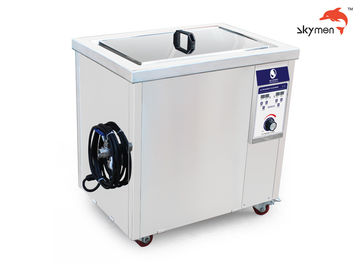

77 Liters Ultrasonic Cleaning Device 1200W Ultrasonic power For Spinneret In Textile Industry

77 Liters Ultrasonic Cleaning Device  1200W Ultrasonic power For Spinneret In Textile Industry
77 Liters Ultrasonic Cleaning Device  1200W Ultrasonic power For Spinneret In Textile Industry

Large Image :  77 Liters Ultrasonic Cleaning Device 1200W Ultrasonic power For Spinneret In Textile Industry

Product Details:

Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/FCC/RHoS/REACH
Model Number: JP-240ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD1000/unit
Packaging Details: wooden case
Delivery Time: 3 days after your payment
Payment Terms: T/T, L/C, Paypal
Supply Ability: 500 units per week
Detailed Product Description
Model: 240ST Material: SUS 304/316
Tank Capacity: 77L Tank Size: 550*400*350 Mm
Transducer: 24pcs Ultrasonic Power: 1200W
Heating Power: 3000W Timer: 1-99 Minutes Adjustable
Heater: 20~95C Adjustable Frequency: 40KHz / 28KHz
High Light:

ultrasonic washing machine

,

ultrasonic cleaning unit

80 Liter Ultrasonic Bath for Spinneret in Textile Industry with 3000 Watt Heating Power

In the production and processing of non-woven fabrics, the cleaning of the spinneret is undoubtedly an important work flow.The cleanliness of the spinneret has played a certain role in the quality of the produced non-woven fabrics. Do everything possible to clean the spinneret.
The structure of the spinneret of the non-woven fabric determines its cleaning difficulty. The small roar blocked the very difficult to clean. In the past, many non-woven fabric processing plants used ultrasonic cleaning machines to clean the spinneret with high pressure water guns. It is troublesome to clean and easy to damage the spinneret. The latest cleaning method is the ultrasonic cleaning machine to clean the non-woven spinneret. It not only has fast cleaning efficiency, but also has less damage to the spinneret.



Specificatoin:

Model JP-240ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 24pcs
Ultrasonic power 1200W (12pcs transducers)
Heating power 3000W
Tank capacity 77L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~95℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 550*400*350 mm
Unit size 840*655*885 mm
Packing size Wooden case
N.W. 85 Kg
G.W. 95 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized



Features:
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:77Liter, with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by skymen
9.Generator is high quality techinique designed and produced which have been used thousands of units by our USA and Europe customers.
10. circulation pump brand name: CNP (Famous brand)

The whole set machine including:

1* cleaning machine

1* lid

1* basket

1* manual







Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs


How does Ultrasonic Cleaner work?Cleaning effect:77 Liters Ultrasonic Cleaning Device  1200W Ultrasonic power For Spinneret In Textile Industry 077 Liters Ultrasonic Cleaning Device  1200W Ultrasonic power For Spinneret In Textile Industry 1
