Product Details:
|
| Model: | JP-180ST | Custom: | Accepted |
|---|---|---|---|
| Material: | SUS 304 / 316 | Tank Capacity: | 53L |
| Tank Size: | 500X350X300 Mm | Transducer: | 18pcs |
| Ultrasonic Power: | 900W | Heating Power: | 1500W |
| Timer: | 1-99 Minutes Adjustable | Heater: | 20~95C Adjustable |
| High Light: | dual frequency ultrasonic cleaner,ultrasonic washing machine |
||
50L Ultrasonic Cleaner Machine for Chemical Vessels and Device with Heater
In the production process of electronic devices, semiconductor materials, metals, and utensils must be cleaned. Cleaning is the process of removing various harmful substances adsorbed on the surfaces of semiconductor materials, metal materials, and production utensils. The cleaning method is to use an ultrasonic cleaner with a cleaning agent to desorb impurities from the surface of the object to be cleaned, thereby obtaining a clean surface.
Chemical cleaning mainly includes three aspects:
1. Surface cleaning of semiconductor materials
2. Cleaning of metal materials (including dopants) used in the production process
3. Cleaning of utensils and utensils used in the production process.
Specificatoin:
| Model | JP-180ST |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Transducer | 18pcs |
| Ultrasonic power | 900W (12pcs transducers) |
| Heating power | 1500W |
| Tank capacity | 53L |
| Water inlet / outlet | Yes |
| Timer | Digital 1-99 min adjustable |
| Heater | 0~80℃ |
| Voltage | AC 100~120V, 60Hz AC 220~240V, 50Hz |
| Tank size | 500X350X300mm |
| Unit size | 735*455*695 mm |
| Packing size | Wooden case |
| N.W. | 75 Kg |
| G.W. | 85 Kg |
| Certificate | ISO9001:2008|CE & REACH |
From 10 galles to 200 gallons ,size could be customized

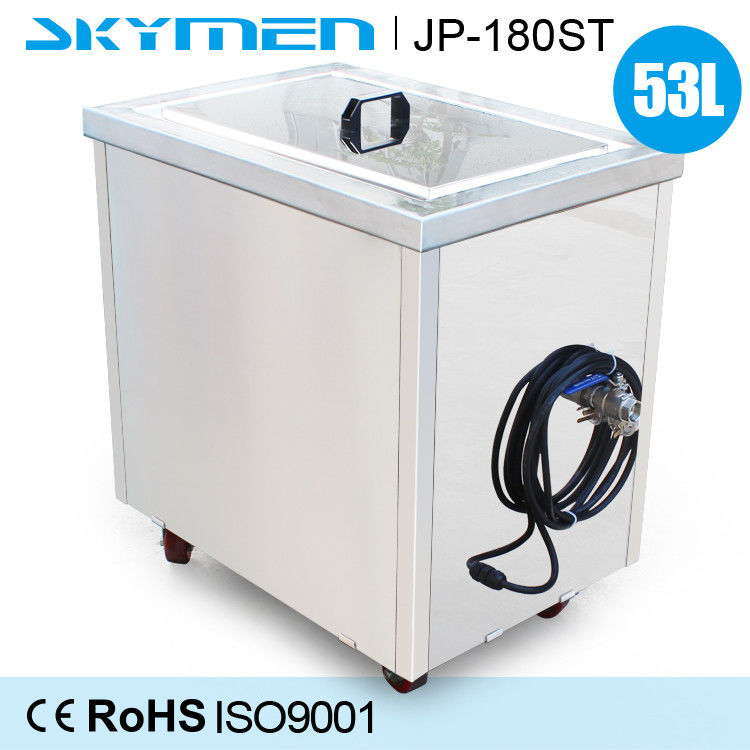

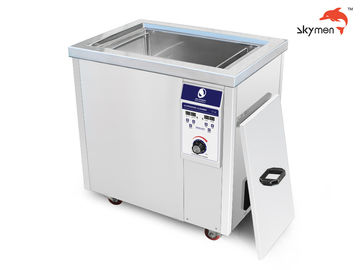

Images of this model:
The whole set machine including:
1* cleaning machine
1* lid
1* basket
Similar models with different tank volume:
| Model | Tank size | Volume | Ultrasonic Power |
Heating Power |
Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
| JP-120ST | 500X300X250 | 38L | 600W | 1500W | 12pcs |
| JP-180ST | 500X350X300 | 53L | 900W | 1500W | 18pcs |
| JP-240ST | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
| JP-300ST | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
| JP-301ST | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
| JP-360ST | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
| JP-480ST | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
| JP-600ST | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
| JP-720ST | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
| JP-1108ST | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
| JP-1144ST | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
Application
More Related Applications:
1. Removal of the rust-proof grease; Cleaning of measuring tools; Oil removal and rust removal of mechanical parts; Cleaning of engines, carburetors and automobile parts; Filter, filter mesh dredge cleaning.
2. Medical equipment cleaning/ disinfection/ sterilization; test utensils cleaning.
3. Remove oil and rust before plating; Cleaning before ion plating;Phosphating; Removal of carbon deposits; Removing oxide skins;Remove polishing paste; Metal workpiece surface activation treatment.
4. Industrial ultrasonic cleaner machine for cleaning electronic parts: ultrasonic PCB cleaner for cleaning circuit board.
