Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer

Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer
Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer

Large Image :  Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer

Product Details:
Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/REACH
Model Number: JP-180ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: wooden case
Delivery Time: In Stock
Payment Terms: L/C, T/T,paypal
Supply Ability: 500 units per week

Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer

Description
Model: JP-180ST Custom: Accepted
Material: SUS 304 / 316 Tank Capacity: 53L
Tank Size: 500X350X300 Mm Transducer: 18pcs
Ultrasonic Power: 900W Heating Power: 1500W
Timer: 1-99 Minutes Adjustable Heater: 20~95C Adjustable
High Light:

ultrasonic washing machine

,

ultrasonic cleaning unit

Dredge Filter Ultrasonic Cleaner 900W Ultrasonic Power With Heating Function



Ultrasonic cleaning machines are widely used in surface coating processing industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch and jewelry industry, optical industry, textile printing and dyeing industry. Other industries, etc., the use of ultrasonic cleaning machine is as follows

1. Surface spray treatment industry: (cleaning attachments: oil, mechanical chips, abrasives, dust, polishing wax) Removal of carbon deposits before plating, removal of oxide scales, removal of polishing paste, degreasing and derusting, cleaning before ion plating, Phosphating treatment, metal workpiece surface activation treatment, etc. Stainless steel polishing products, stainless steel knives, tableware, knives, locks, lighting, pre-painting of hand ornaments, cleaning before plating.

2. Machinery industry: (cleaning attachments: cutting oil, abrasive grains, iron filings, dust, fingerprints)

Removal of rust preventive grease; cleaning of measuring tools; degreasing and derusting of mechanical parts; engine, engine parts, gearbox, damper, bearing bush, grease nipple, cylinder block, valve body, carburetor and auto parts and chassis paint Cleaning before degreasing, descaling, phosphating; cleaning of filters, piston fittings, filters, etc. Precision mechanical parts, compressor parts, camera parts, bearings, hardware parts, molds, especially in the railway industry, are suitable for degreasing and decontaminating train compartment air conditioners, rust prevention, rust removal and degreasing of various parts of the train head.



Specificatoin:



Model JP-180ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 18pcs
Ultrasonic power 900W (12pcs transducers)
Heating power 1500W
Tank capacity 53L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500X350X300mm
Unit size 735*455*695 mm
Packing size Wooden case
N.W. 75  Kg
G.W. 85 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized

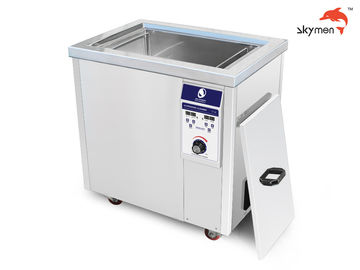

Images of this model:



The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



Application

Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer 0

Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer 1



Dredge Filter Ultrasonic Cleaning Device 900W 1-99 Minutes Adjustable Timer 2
