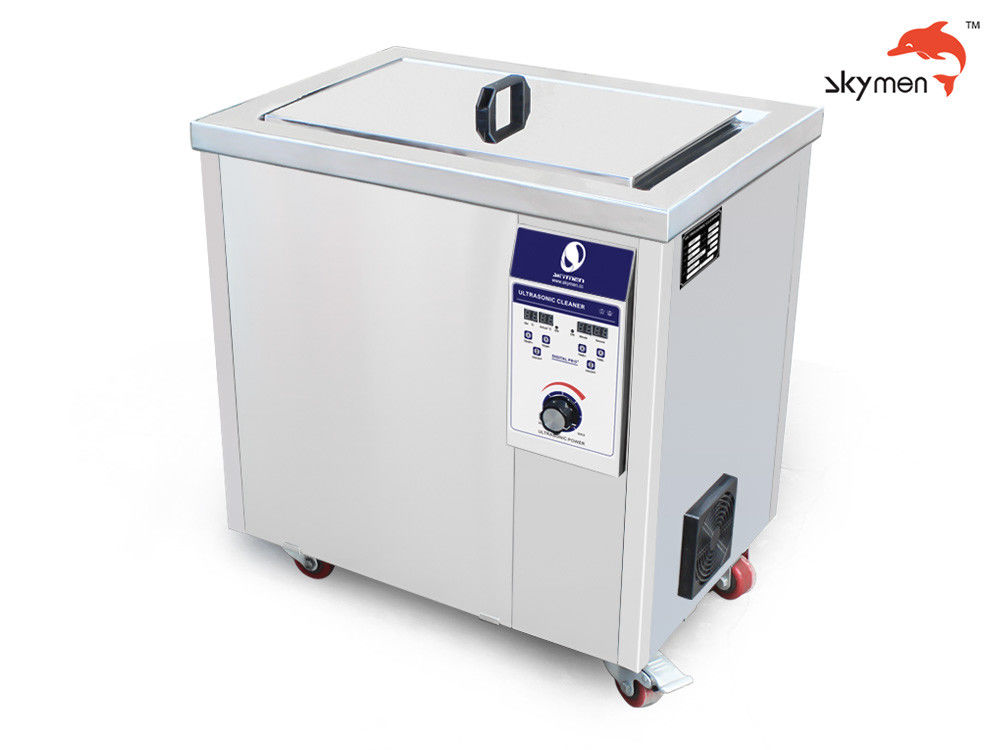

Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power

Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power
Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power

Large Image :  Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power

Product Details:
Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/REACH
Model Number: JP-180ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: wooden case
Delivery Time: In Stock
Payment Terms: L/C, T/T,paypal
Supply Ability: 500 units per week

Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power

Description
Model: JP-180ST Material: SUS 304 / 316
Frequency: 40KHz / 28KHz / 68KHz / 132KHz Tank Capacity: 53L
Tank Size: 500X350X300 Mm Transducer: 18pcs
Ultrasonic Power: 900W Heating Power: 1500W
Timer: 1-99 Minutes Adjustable Heater: 20~95C Adjustable
High Light:

dual frequency ultrasonic cleaner

,

ultrasonic washing machine

Automobile Parts Ultrasonic Cleaner Machine 53L With 1500W Heating Power

In automobile maintenance and repair, cleaning of parts is a relatively important task. After each assembly is disassembled into parts, the oil, carbon and scale of the parts must be removed, so that the assembly and vehicle assembly can be smoothly carried out. Remove the dirt, wash the inside of the car and its assembly and parts, you can find problems (such as abnormal wear, cracks, loosening, etc.) in time, and take corresponding measures to prevent hidden dangers.
Automobile parts cleaning methods are divided into washing, ultrasonic cleaning, solvent washing and chemical washing. Contamination of parts includes: external deposits, residues of lubricating materials. As these dirt have different properties and characteristics, and often have high adhesion, the cavitation of ultrasonic waves in water can loosen and peel off these attached oil stains. The use time is short, and the damage to parts is small.



Specificatoin:

Model JP-180ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 18pcs
Ultrasonic power 900W (12pcs transducers)
Heating power 1500W
Tank capacity 53L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500X350X300mm
Unit size 735*455*695 mm
Packing size Wooden case
N.W. 75  Kg
G.W. 85 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized



Images of this model:



The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



Cleaning effect contrast:

Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power 0

Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power 1

Allication in Engine
After a long period of use, there will be a lot of oil on the engine surface. If you do not remove these oils, it will affect the use of the car, reduce the service life of the car, and even have certain safety hazards. Therefore, engine cleaning is very necessary.

Traditional cleaning is the use of manual cleaning or high pressure water guns. However, manual cleaning is difficult to clean some blind holes and gaps in the engine; the effect of high-pressure water gun on oil pollution is not very significant.

The effect of ultrasonic cleaning is very remarkable. The oil on the surface and the oil on the gap can be effectively removed under the impact of tens of thousands of ultrasonic waves. And with the application of the filtration circulation system, it can effectively filter out the concentrated treatment of oil, which greatly saves water resources and has negligible impact on the environment.



Automobile Parts Ultrasonic Cleaning Equipment 53L Tank 1500W Heating Power 2
