SUS 304/316 Isonic Digital Ultrasonic Cleaner 40L 600W 20~95C Adjustable Heater

China SUS 304/316 Isonic Digital Ultrasonic Cleaner 40L 600W 20~95C Adjustable Heater supplier

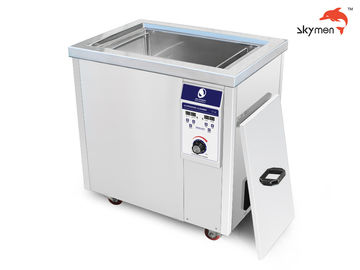

Large Image :  SUS 304/316 Isonic Digital Ultrasonic Cleaner 40L 600W 20~95C Adjustable Heater

Product Details:

Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/REACH
Model Number: JP-120ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD590/unit
Packaging Details: wooden case
Delivery Time: 3 days after your payment
Payment Terms: L/C, T/T,paypal
Supply Ability: 500 units per week
Contact Now
Detailed Product Description
Model: JP-120ST Material: SUS 304/316
Frequency: 40KHz / 28KHz / 68KHz / 132KHz Tank Capacity: 38L
Tank Size: 500*300*250 Mm Transducer: 12pcs
Ultrasonic Power: 600W Heating Power: 1500W
Timer: 1-99 Minutes Adjustable Heater: 20~95C Adjustable

40~1000 Liter Degreasing and Derusting Industrial Ultrasonic Cleaning Machine with Heater

When the transducer works at the resonance frequency, it has the highest efficiency and the most stable operation. The resonance frequency of the transducer will change due to assembly reasons and work aging. Of course, the frequency of this change is only drift, and the change is not large. The frequency tracking signal can control the signal generator, so that the frequency of the signal generator can track the resonance frequency point of the transducer within a certain range, and let the generator work in the best state. Of course, with the development of modern electronic technology, especially the microprocessor (uP) and signal processor (DSP), the function of the generator is getting more and more powerful, but no matter how it changes, its core function should be as described above. It's just that each part is different in technology.



Specificatoin:

Model JP-120ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 12pcs
Ultrasonic power 600W (12pcs transducers)
Heating power 1500W
Tank capacity 38L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500*300*250 mm
Unit size 735*500*695 mm
Packing size Wooden case
N.W. 65  Kg
G.W. 70 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized



Features:
Fully insulated stainless steel tank construction;
Digital LED screen show temp and time, easy to use;
Adjustable built-in heat to improve the cleaning effectiveness;
Stainless steel lid help to reduce the noise;

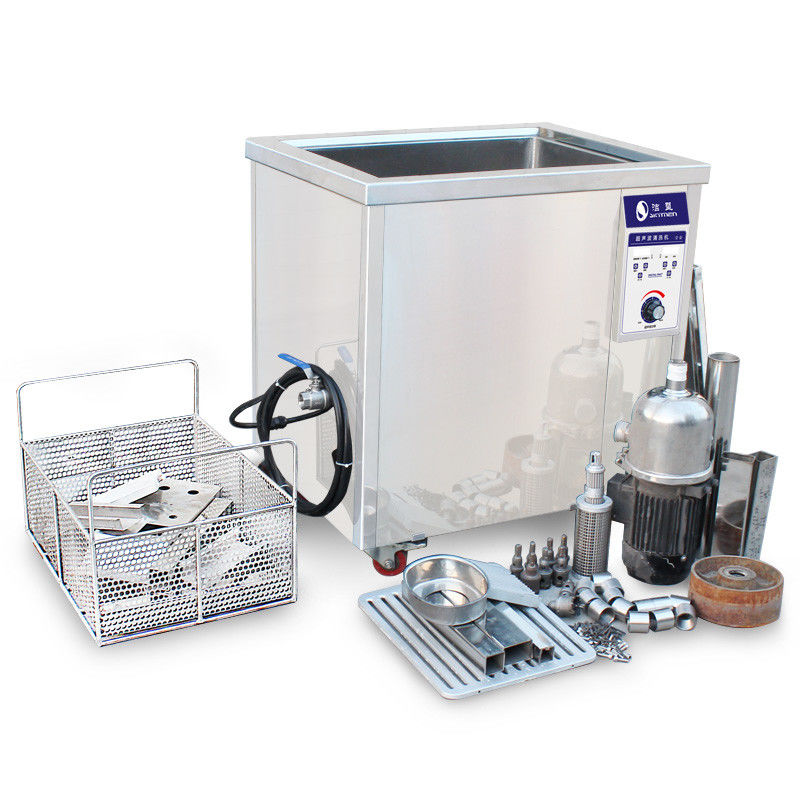

The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



Cleaning effect contrast:

SUS 304/316 Isonic Digital Ultrasonic Cleaner 40L 600W 20~95C Adjustable Heater
