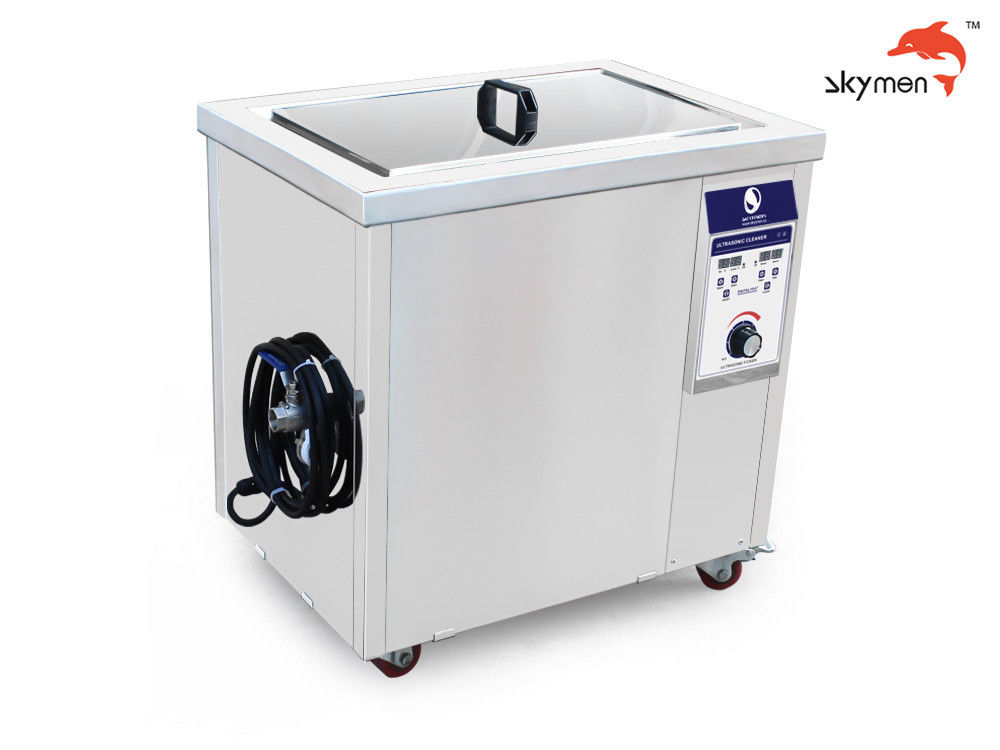

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste
38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste
38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste 38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste 38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste

Large Image :  38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste

Product Details:
Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/REACH
Model Number: JP-120ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: wooden case
Delivery Time: In Stock
Payment Terms: L/C, T/T,paypal
Supply Ability: 500 units per week

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste

Description
Model: JP-120ST Material: SUS 304/316
Frequency: 40KHz / 28KHz / 68KHz / 132KHz Tank Capacity: 38L
Tank Size: 500*300*250 Mm Transducer: 12pcs
Ultrasonic Power: 600W Heating Power: 1500W
Timer: 1-99 Minutes Adjustable Heater: 20~95C Adjustable
High Light:

ultrasonic washing machine

,

ultrasonic cleaning unit

Ultrasonic Cleaner 38 Liter for Removing Polishing Paste with 12pcs Transducers

1. What is ultrasound: There are three types of waves: infrasound, sonic, and ultrasonic. The frequency of infrasound waves is below 20Hz; the frequency of acoustic waves is 20Hz ~ 20kHz; the frequency of ultrasonic waves is above 20kHz. The infrasound and ultrasonic waves are generally inaudible to the human ear. Because of its high frequency and short wavelength, ultrasonic waves have good directivity and strong penetrability, which is why ultrasonic cleaning machines are designed and manufactured.
2. The structure of the ultrasonic cleaning machine: The ultrasonic cleaning machine is mainly composed of an ultrasonic cleaning tank and an ultrasonic generator. The ultrasonic cleaning tank is made of high-quality stainless steel with strong elasticity and corrosion resistance. The ultrasonic transducer vibrator is installed at the bottom; the ultrasonic generator generates high-frequency and high-voltage and conducts to the transducer through the cable connection line. High-frequency resonance is generated, so that the solvent in the cleaning tank is subjected to ultrasonic waves to clean the dirt.



Specificatoin:

Model JP-120ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 12pcs
Ultrasonic power 600W (12pcs transducers)
Heating power 1500W
Tank capacity 38L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500*300*250 mm
Unit size 735*500*695 mm
Packing size Wooden case
N.W. 65  Kg
G.W. 70 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized



Features:
Fully insulated stainless steel tank construction;
Digital LED screen show temp and time, easy to use;
Adjustable built-in heat to improve the cleaning effectiveness;
Stainless steel lid help to reduce the noise;





The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



How does Ultrasonic Cleaner work?

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste 0

Cleaning effect contrast:

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste 1

38 Liter Tank Ultrasonic Cleaning Machine 40KHz- 132KHz For Removing Polishing Paste 2
