High Frequency Ultrasonic Washing Machine 38 Liter For Precision Component 28/40KHz

China High Frequency Ultrasonic Washing Machine 38 Liter For Precision Component 28/40KHz supplier

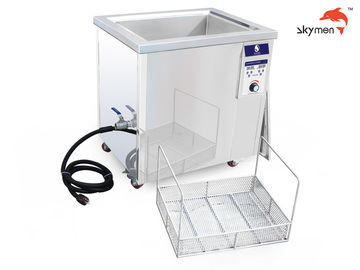

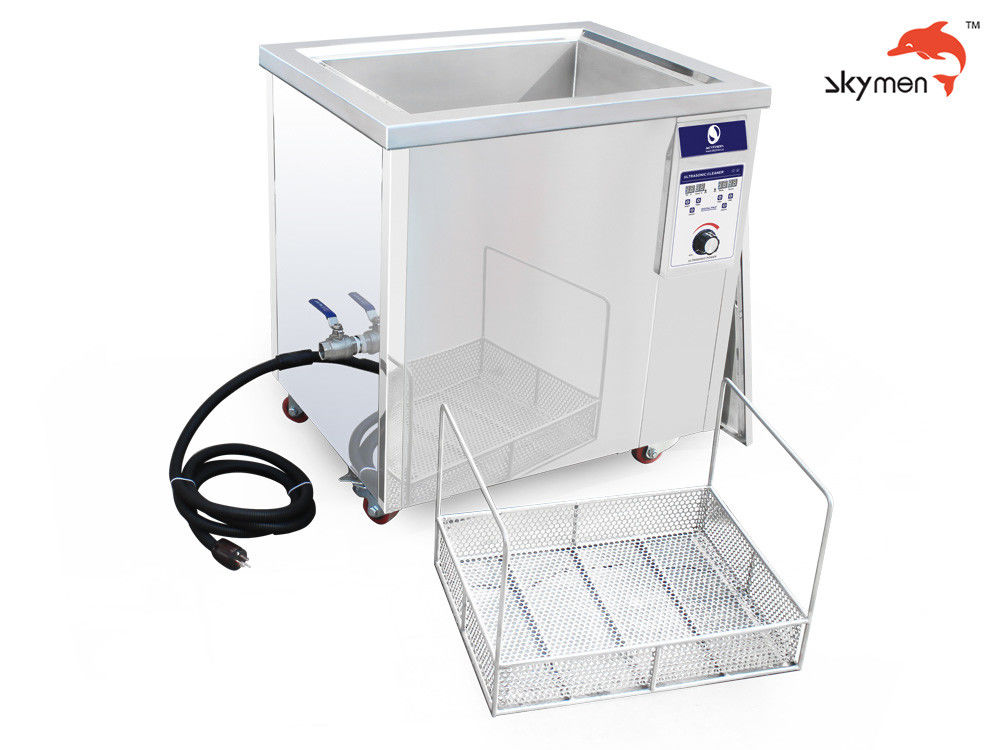

Large Image :  High Frequency Ultrasonic Washing Machine 38 Liter For Precision Component 28/40KHz

Product Details:

Place of Origin: China
Brand Name: SKYMEN / OEM
Certification: CE/REACH
Model Number: JP-120ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD590/unit
Packaging Details: wooden case
Delivery Time: 3 days after your payment
Payment Terms: L/C, T/T,paypal
Supply Ability: 500 units per week
Contact Now
Detailed Product Description
Model: JP-120ST Material: SUS 304/316
Frequency: 40KHz / 28KHz / 68KHz / 132KHz Tank Capacity: 38L
Tank Size: 500*300*250 Mm Transducer: 12pcs
Ultrasonic Power: 600W Heating Power: 1500W
Timer: 1-99 Minutes Adjustable Heater: 20~95C Adjustable

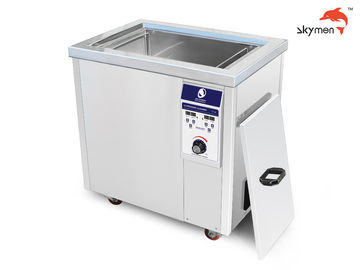

High Frequency Ultrasonic Cleaning Machine 38 Liter for Precision Component 28~132KHz



How does ultrasonic cleaning work
Ultrasonic cleaning is to use the social, acceleration and direct flow effects of ultrasound in liquids to directly and indirectly affect liquids and dirt, so that the dirt layer is dispersed, emulsified, and peeled to achieve the purpose of cleaning. In the ultrasonic cleaners currently used, cavitation and direct flow are more widely used.
(1) Cavitation: Cavitation is the transmission of ultrasonic waves to a liquid by means of a high-frequency transformation of compressive force and decompressive interaction of more than 20,000 times per second. Under the action of depressurization, the phenomenon of vacuum nuclear group bubbles is generated in the liquid. When the compressive force is applied, the vacuum nuclear group bubbles are crushed under pressure to generate a strong impact force, thereby removing the dirt on the surface of the object to be cleaned, thereby achieving precision. Wash purpose.
In the ultrasonic cleaning process, the bubbles visible to the naked eye are not vacuum nuclear group bubbles, but air bubbles, which inhibit the cavitation and reduce the cleaning efficiency. Only when the air bubbles in the liquid are completely removed, the cavitation vacuum nucleus bubbles can achieve the best results.
(2) the effect of direct flow: the phenomenon that ultrasonic waves flow in the liquid along the direction of sound propagation is called direct flow. When the sound wave intensity is 0.5W / cm2, the naked eye can see the straight flow, and the flow is perpendicular to the vibration surface, and the flow rate is about 10cm / s. Through this direct flow, the micro oily dirt on the surface of the object to be cleaned is stirred, and the cleaning solution on the dirt surface also generates convection. The dissolved solution that dissolves the dirt is mixed with the new liquid, which accelerates the dissolution rate, and it is very difficult to transport the dirt Great effect.
(3) Acceleration: The acceleration generated by liquid particles. For high-frequency ultrasonic cleaning machines, the cavitation effect is very insignificant. At this time, the cleaning is mainly performed by the ultra-precise cleaning of the dirt by the impact of particles under the acceleration of liquid particles.

Specificatoin:

Model JP-120ST
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Transducer 12pcs
Ultrasonic power 600W (12pcs transducers)
Heating power 1500W
Tank capacity 38L
Water inlet / outlet Yes
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500*300*250 mm
Unit size 735*500*695 mm
Packing size Wooden case
N.W. 65  Kg
G.W. 70 Kg
Certificate ISO9001:2008|CE & REACH

From 10 galles to 200 gallons ,size could be customized



Features:
Fully insulated stainless steel tank construction;
Digital LED screen show temp and time, easy to use;
Adjustable built-in heat to improve the cleaning effectiveness;
Stainless steel lid help to reduce the noise;





The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



How does Ultrasonic Cleaner work?

High Frequency Ultrasonic Washing Machine 38 Liter For Precision Component 28/40KHz

Cleaning effect contrast:

High Frequency Ultrasonic Washing Machine 38 Liter For Precision Component 28/40KHz
