Product Details:
|
| Model: | JP-100S | First Tank Volume: | 30L |
|---|---|---|---|
| Tank Size: | 500*300*200mm | Ultrasonic Power: | 600W |
| Heating Power: | 500W | Frequency: | 40KHz |
| Timer: | 0~30 Minutes Adjustable | Temperature: | 20~80℃ Adjustable |
| High Light: | Capillary Tube Ultrasonic Cleaning Equipment,Lead Frame Ultrasonic Cleaning Equipment,Salver Ultrasonic Bath Cleaner |
||

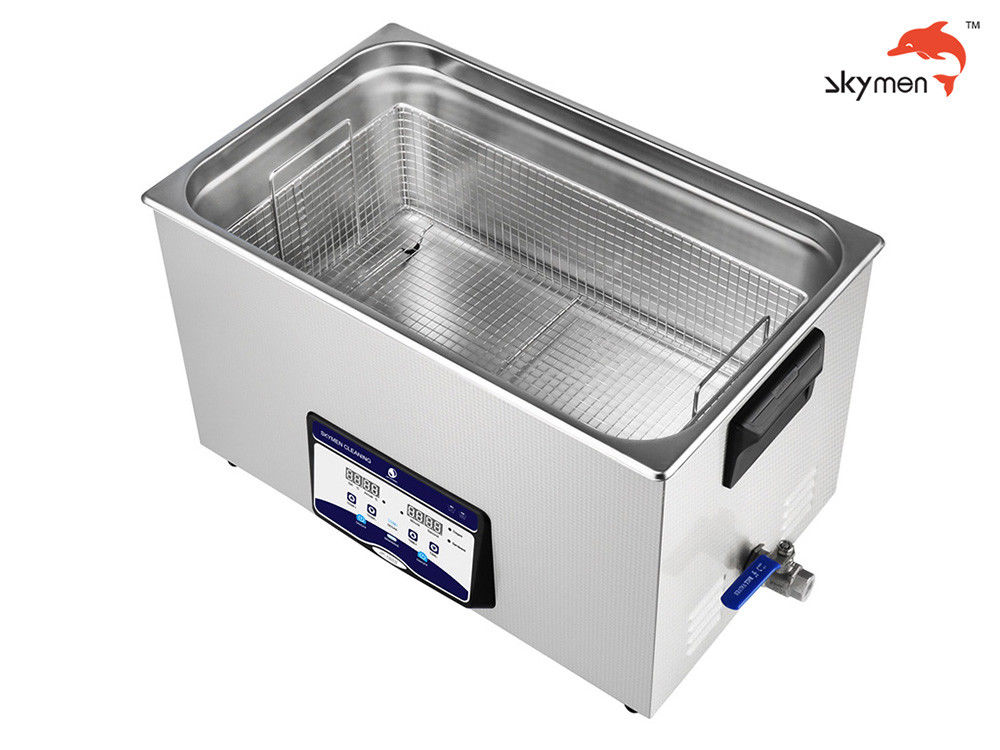

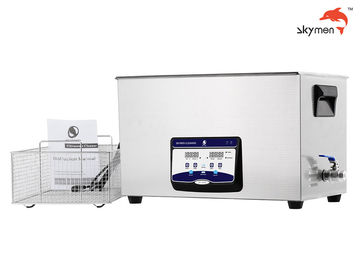

30L Ultrasonic Cleaner 600W for Lead frame / Capillary Tube / Salver 40KHz
Specification:
| Model | JP-100S |
| Ultrasonic frequency | 40,000Hz |
| Material of tank | SUS304 |
| Material of shell | SUS304 |
| Capacity | 30L |
| Drain value | On the left side |
| Timer | 0~30 mins adjustable |
| Temperature | 20~80℃ adjustable |
| Power supply type 1 | AC 100~120V, 50/60Hz |
| Power supply type 2 | AC 220~240V, 50/60Hz |
| Ultrasonic power | 600W |
| Heating Power | 500W |
| Tank inner dimension | 500*300*200mm |
| Unit dimension | 585*327*333mm |
| Packing size | 680*455*400mmmm |
| N.W. | 15kg |
| G.W. | 17kg |
| Certificate | FCC & CE & RoHS & REACH |
Similar models with different capacity:
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | |
| 008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
| 009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
| JP-010T | 2 | 150*165*100 | 60 | 100 | 40 |
| JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
| JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
| JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
| JP-040S | 10 | 300*240*150 | 240 | 200 | 40 |
| JP-060S | 15 | 330*300*150 | 360 | 300 | 40 |
| JP-080S | 22 | 500*300*150 | 480 | 500 | 40 |
| JP-100S | 30 | 500*300*200 | 600 | 500 | 40 |
Image:
Characteristics
1. Use ordinary tap water, alcohol or solvent as cleaning solution
2. High-power transducer cleaning effect is significant, can be observed with the naked eye
3. After washing, the object shines brightly
4. Digital LCD control boot time
5. All stainless steel casing, inner liner and lid, even more upscale
6. The waterproof performance is greatly improved, and the product is safer and more durable.
7. With heating and temperature system
8. With handle and drainage system, it is more convenient
