Product Details:
|
| Model: | 080S | First Tank Volume: | 22L |
|---|---|---|---|
| Tank Size: | 500*300*150mm | Ultrasonic Power: | 480W |
| Heating Power: | 500W | Frequency: | 40KHz |
| Timer: | 0~30 Minutes Adjustable | Temperature: | 20~80℃ Adjustable |
| High Light: | Adjustable Timer Benchtop Ultrasonic Cleaner,Benchtop Ultrasonic Cleaner 22L,480W SS Heated Ultrasonic Cleaner |
||

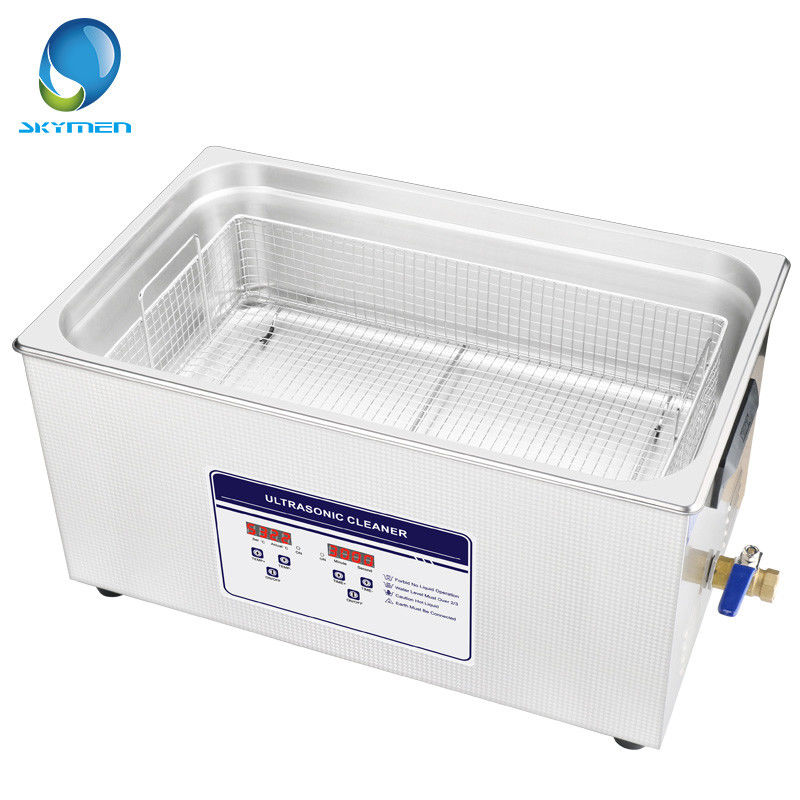

22L Ultrasonic Cleaner 480W for Moulds, precision parts, pressing parts, 40KHz
Specification
| Model | 080S |
| Ultrasonic frequency | 40,000Hz |
| Material of tank | SUS304 |
| Material of shell | SUS304 |
| Capacity | 22L |
| Timer | 0~30 mins adjustable |
| Temperature | 20~80℃ adjustable |
| Power supply type 1 | AC 100~120V, 50/60Hz |
| Power supply type 2 | AC 220~240V, 50/60Hz |
| Drain value | 1 set |
| Ultrasonic power | 480W |
| Heating Power | 500W |
| Tank inner dimension | 500*300*150mm |
| Unit dimension | 585*330*280mm |
| Packing size | 680*455*355mm |
| N.W. | 12.7kg |
| G.W. | 14.5kg |
| Warranty | 1 year |
| Certificate | SGS & FCC & CE & RoHS |
Similar models with different capacity:
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | |
| 008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
| 009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
| 010T | 2 | 150*165*100 | 60 | 100 | 40 |
| 020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
| 030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
| 031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
| 040S | 10 | 300*240*150 | 240 | 200 | 40 |
| 060S | 15 | 330*300*150 | 360 | 300 | 40 |
| 080S | 22 | 500*300*150 | 480 | 500 | 40 |
| 100S | 30 | 500*300*200 | 600 | 500 | 40 |
Image:
If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.
