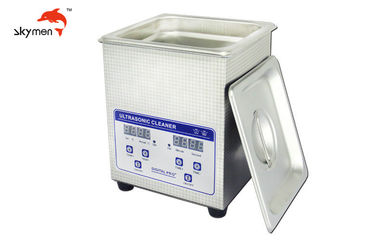

60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products

Good quality Benchtop Ultrasonic Cleaner for sales
Good quality Benchtop Ultrasonic Cleaner for sales
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products

China 60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products supplier
60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products supplier 60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products supplier

Large Image :  60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: 010S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 50$ per unit
Packaging Details: Wooden case
Delivery Time: 3 working days after payment
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Contact Now
Detailed Product Description
Model: 010S First Tank Volume: 2L
Tank Size: 150*135*100mm Ultrasonic Power: 60W
Heating Power: 100W Frequency: 40KHz
Timer: 0~30 Minutes Adjustable Temperature: 20~80℃ Adjustable

2L Jewelry Ultrasonic Cleaner for diamond, gold, silver products, rings 40KHz



010S product specification:

Ultrasonic frequency 40,000Hz
Material of tank SUS304
Material of shell SUS304
Capacity 2L
Timer 0~30 mins adjustable
Temperature 20~80℃ adjustable
Power supply type 1 AC 100~120V, 50/60Hz
Power supply type 2 AC 220~240V, 50/60Hz
Ultrasonic power 60W
Heating Power 100W
Tank inner dimension 150*135*65mm
Unit dimension 175*160*175mm
Inner Packing size 255*240*230mm
Big carton for 12pcs 525*500*485mm for 8pcs
N.W. 2kg
G.W. 2.5kg
Certificate ISO9001:2008 & CE & RoHS



Similar models with different capacity:

Stainless Bench Top
60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency
(L) (L*W*H)mm (W) (W) (KHz)
008 0.8 150*85*65 35 0 40
009 0.9 150*135*65 60 100 40
010T 2 150*165*100 60 100 40
020S 3.2 240*135*100 120 100 40
030S 4.5 300*150*100 180 200 40
031S 6.5 300*150*150 180 200 40
040S 10 300*240*150 240 200 40
060S 15 330*300*150 360 300 40
080S 22 500*300*150 480 500 40
100S 30 500*300*200 600 500 40





Image:

60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products

How much ultrasonic power does your cleaning tank require?
The right amount of ultrasonic energy (usually expressed in watts/gallon) depends on the size of the cleaning bath and the difficulty of the cleaning requirement. Tanks in the one- to two-gallon range often provide up to 90 watts per gallon of ultrasonic power, plenty for most jobs, even cleaning out the ultra-fine passages of fuel injector nozzles.
"Achieving the same cleaning effect in larger tanks requires less energy density," Pedeflous noted. "Excellent cleaning has been demonstrated in tanks having 50 gallons capacity with only 25-30 watts per gallon. The more difficult the application, the greater energy density is required for effective cleaning."


On the other hand, too much ultrasonic power may result in cavitation erosion occurring on delicate or highly polished parts that are near the transducer-radiating surface. Cavitation is the formation and collapse of low-pressure bubbles that can pit the surface of metals. Aluminum, copper, brass and other soft metals are especially susceptible to cavitation erosion.



60 Watt Ultrasonic Cleaning Equipment 2L For Diamond / Gold / Silver Products
