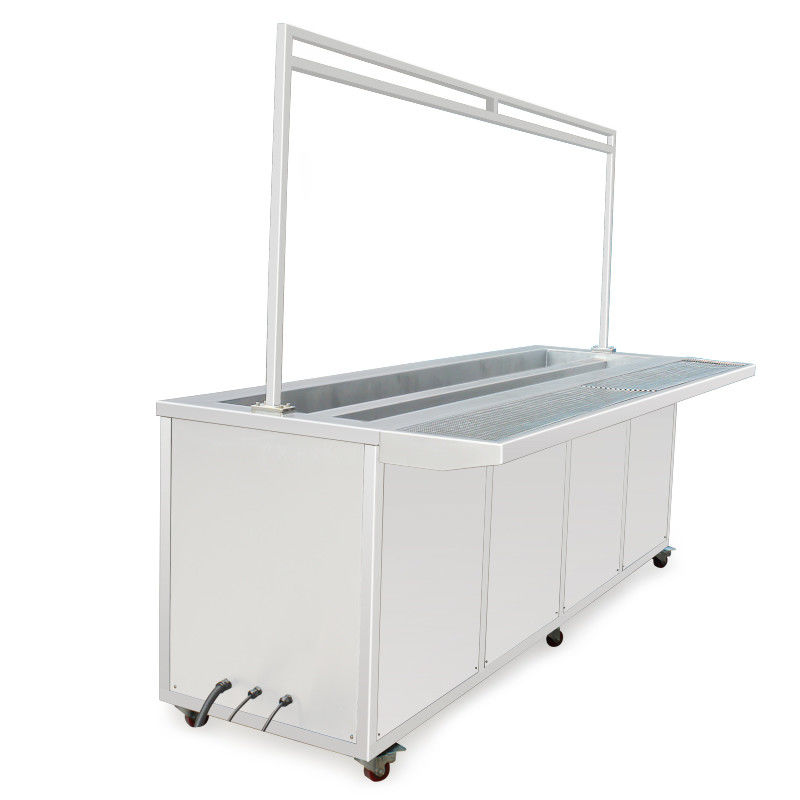

Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder

Good quality Benchtop Ultrasonic Cleaner for sales
Good quality Benchtop Ultrasonic Cleaner for sales
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder

China Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder supplier
Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder supplier Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder supplier Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder supplier

Large Image :  Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2072T

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 5000$ per unit
Packaging Details: Wooden case
Delivery Time: 18 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Contact Now
Detailed Product Description
Model: JP-2072T First Tank Volume: 330L
First Tank Size: 3000X220X500mm Transducers: 72pcs, 50W Of Every Transducer
Ultrasonic Power: 3600W Heating Power: 9000W
Function: Ultrasonic Clean+rinsing+drying Frequency: 28/40KHz

Double Tanks Blinds Curtain 3600W Ultrasonic Cleaning Machine with Drain Holder 28/40KHz



The advantages of the ultrasonic cleaning machine are: the ultrasonic cleaning effect is good, and the operation is simple. The sound that people hear is the acoustic signal with a frequency of 20-20000 Hz. The sound wave higher than 20000 Hz is called ultrasonic wave. The transmission of sound wave propagates longitudinally according to the sinusoidal curve, generating a large number of small bubbles. One reason is that a tensile stress is locally generated in the liquid to form a negative pressure. The decrease in pressure causes the gas originally dissolved in the liquid to be supersaturated, and escapes from the liquid to become small bubbles; another reason is that the strong tensile stress tears the liquid. "Become a hollow, called cavitation.



Same series with different size for your choice:

Model 1st tank volume 1st tank size Transducers Ultrasonic Power Heating power Frequency
JP-2036T 160L 2000*200*400mm 36pcs 1800W 4500W 28/40KHz
JP-2060T 264L 2400*220*500mm 60pcs 3000W 6000W 28/40KHz
JP-2072T 330L 3000*220*500mm 72pcs 3600W 12000W 28/40KHz

Specification

Model JP-2072T
1st Tank Volume 330L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 330L   Ultrasonic Rinsng tank
1st tank size 3000*220*500mm
2nd tank size 3000*220*500mm
Transducers 72pcs
Ultrasonic Power  3600W
Heating Power of Ultrasonic tank 12000W
Frenquency 28KHz/40KHz
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 300G
G.W.

350KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Feature:

1. It's designed for cleaning blind curtains.
2.There are 2 tanks, one is for Ultrasonic clean with heating function, you
can put chemicals in it to clean, another is rinsing tank for removing the
chemicals from curtain.
3. There is a high holder to support the blind curtain, and a leachate
frame to hold the wet curtain



Images:
Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain HolderDouble Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain HolderDouble Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder

Double Tanks 330L Ultrasonic Blind Cleaner 3600W 28/40KHz With Drain Holder

Company Info:

Skymen Cleaning Equipment Shenzhen Co.,Ltd has been manufacturing ultrasonic cleaners since 2007, We can manufacture virtually any cleaning system in our 3200 square foot facility located in Shenzhen, China.
Our advantages:
1.We are direct manufacturer factory, have ability of mass production.
2.With R&D department, ensure our own technological and innovative products.
3.We have our own brand SKYMEN and do OEM & ODM for distributors.
4.Different capacity is available, 0.6liter ~30liter, 38liter ~5000liter,etc.Include mini household model, bentchtop model, industrial large tank with casters model and submersible transducer pack system.
5.Material for plastic model is stainless steel 304 & ABS, Material for stainless steel model is Stainless steel 304/316
6.CE, RoHS, FCC, C-Tick.
7.1 year warranty for all goods.
