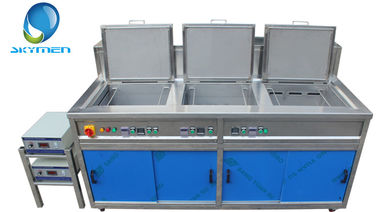

Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer

Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer
Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer

Large Image :  Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-3036GPH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 3600$ per unit
Packaging Details: Wooden case
Delivery Time: 18 working days after payment
Payment Terms: T/T
Supply Ability: 800 pcs per month
Detailed Product Description
Model: JTS-3036GPH First Tank Volume: 53L
First Tank Size: 500X350X300mm Transducers: 18pcs In 1st Tank; 18pcs In 2nd Tank
Ultrasonic Power: 900W*2 Heating Power: 1500W*2
Function: Ultrasonic Clean+rinsing+filter+drying Frequency: 28/40KHz
High Light:

automotive ultrasonic cleaner

,

ultrasonic cleaning device

3 Phase Ultrasonic Cleaner for Spinneret Plate with Rinsing, Filter, Dryer 53L



Specification

Model JTS-3036GPH
1st Tank Volume 53L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 53L   Ultrasonic Rinsng tank
3rd Tank Volume 53L   Drying tank
1st tank size 500X350X300mm
2nd tank size 500X350X300mm
3rd Tank size 500X350X300mm
Transducers 18pcs in 1st tank; 18pcs in 2nd tank
Ultrasonic Power  900W*2
Heating Power of Ultrasonic tank 1500W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 2070*1000*900mm
Packing size 2130*1060*1020mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 270G
G.W.

300KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)

Instruments with movable parts should be disassembled to facilitate cleaning

Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this

Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-2024GPH 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JP-2036GPH 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JP-2048GPH 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JP-2060GPH 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JP-2072GPH 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JP-2096GPH 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JP-2120GPH 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JP-2144GPH 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JP-2216GPH 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JP-2288GPH 12000*1000*800  960L*3  7200W 24000W*2 1500W 288pcs



Clean effect:

Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer 0Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer 1Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer 2
Spinneret Plate Ultrasonic Washing Machine 3 Phase With Rinsing / Filter / Dryer 3

What benefit can i get?
● Labor cost is substantially reduced
● Increase the Parts life
● Reduced Parts damage from cleaning
● Reduced wastages
● Environmentally friendly
● Easy to maintain system
● MOSFET / IGBT Base technology save the power
● Heater with thermostatically control increase cleaning effect
● Rust free stainless steel housing, easy to clean
● Free Lid & basket as per customer need

History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
