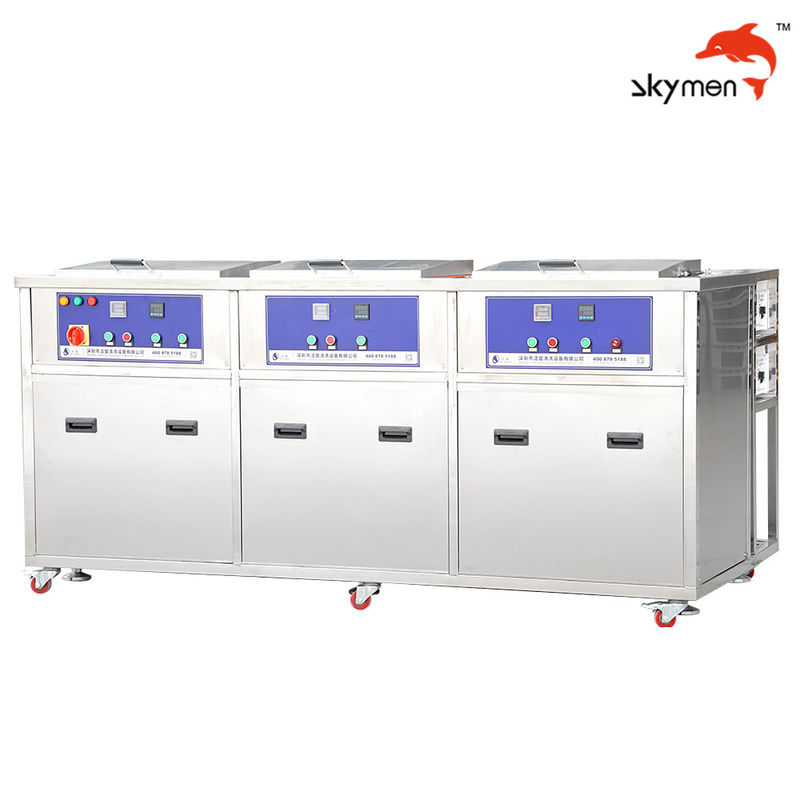

3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools

3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools
3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools

Large Image :  3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JTS-3024GPH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools

Description
Model: JTS-3024GPH First Tank Volume: 38L
First Tank Size: 500X300X250mm Transducers: 12pcs In 1st Tank; 12pcs In 2nd Tank
Ultrasonic Power: 600W*2 Heating Power: 1500W*2
Function: Ultrasonic Clean+rinsing+filter+drying Frequency: 28/40KHz
High Light:

automotive ultrasonic cleaner

,

ultrasonic washing machine

3 Bins Ultrasonic Cleaner for Surgical knife blade/tools with Rinsing, Filter, Dryer 38L



Specification

Model JTS-3024
1st Tank Volume 38L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 38L   Ultrasonic Rinsng tank
3rd Tank Volume 38L   Drying tank
1st tank size 500X300X250mm
2nd tank size 550X400X250mm
3rd Tank size 550X400X250mm
Transducers 12pcs in 1st tank; 12pcs in 2nd tank
Ultrasonic Power  600W*2
Heating Power of Ultrasonic tank 1500W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 1450*500*850mm
Packing size 2125*1010*970mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 260G
G.W.

280KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)

Instruments with movable parts should be disassembled to facilitate cleaning

Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this

Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.



Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-2024GPH 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JP-2036GPH 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JP-2048GPH 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JP-2060GPH 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JP-2072GPH 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JP-2096GPH 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JP-2120GPH 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JP-2144GPH 1000X600X600

360L*3

3600W 9000W*2 750W 144pcs
JP-2216GPH 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JP-2288GPH 12000*1000*800 960L*3  7200W 24000W*2 1500W 288pcs


Images:
3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 0
Clean effect:

3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 13 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 23 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 3
3 Bins Industrial Ultrasonic Cleaner 28/40KHz For Surgical Knife Blade / Tools 4

How do I know what size of ultrasonic cleaner is best for my operation?
The two points you should think about,

● How about your cleaning volume? For very little small part, a table top ultrasonic are able to do this job. For large size and huge volume, you should consider industrial ultrasonic cleaner , for highest cleanness level , multi-stage ultrasonic cleaning system are recommend.

● The size of cleaning object, it can fit in the basket fully immersed under water.

History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
