Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable

Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable
Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable

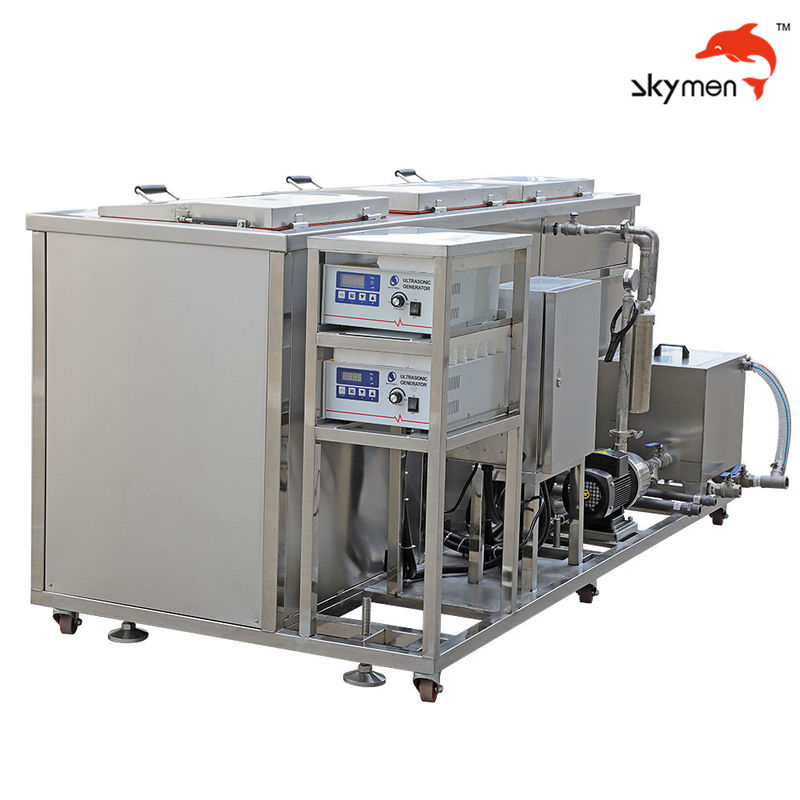

Large Image :  Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2030H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable

Description
Model: JP-2030H First Tank Volume: 99L
First Tank Size: 550X450X400mm Transducers: 30pcs; 50W Of Every Transducer
Ultrasonic Power: 1500W Heating Power: 3000W
Heating Power Of Dryer: 750W Frequency: 28/40KHz
High Light:

ultrasonic cleaning device

,

ultrasonic washing machine

100L Ultrasonic Cleaner 1200W for Marine Turbine Wirth Drying System 28/40KHz

Same series with different size for your choice:

ModelSize of every tankTank VolumeUltrasonic
Power
Heating Power of Ultrasonic tankHeating Power of drying tankTransducer
L*W*H (mm)(L)(W)(W)750W(pcs)
JP-2012H500X300X25038L*2600W1500W750W12pcs
JP-2018H500X350X30053L*2900W1500W750W18pcs
JP-2024H550X400X35077L*21200W3000W750W24pcs
JP-2030H550X450X40099L*21500W3000W750W30pcs
JP-2036H600X500X450135L*21800W4500W750W36pcs
JP-2048H700X500X500175L*22400W6000W750W48pcs
JP-2060H800X600X550264L*23000W6000W750W60pcs
JP-2072H1000X600X600360L*23600W9000W750W72cs
JP-2108H1000X900X600540L*25400W18000W1100W108pcs
JP-2144H12000*1000*800960L*27200W24000W1500W144pcs

Specification

ModelJP-2030H
1st Tank Volume99L
2nd Tank Volume99L
First tank size550X450X400mm
Second tank size550X450X400mm
Transducers30pcs  50W of every transducer
Ultrasonic Power 1500W
Heating Power of Ultrasonic tank3000W
Heating Power of Drying tank750W
Frenquency28KHz/40KHz
Drying System1 set
Unit size1550*685*1000mm
Packing size1610*745*1120mm
Timer0~99 minutes adjustable
HeaterRoom temperature~99℃ adjustable
MaterialSUS 304 default, can be SUS 316
Power SupplyAC 220V 3 phase ; AC 380V 3 phase
N.W.200G
G.W.

250KG Wrapped by film in wooden case

Lead time18 working days
Warranty1 year warranty period, technique support all time
CertificatesCE, RoHS, FCC, SGS
AdvantageFilter the dirty water; keep the water clear in tank; lower the frequency of changing water


Images:
Clean effect:
Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable 0
Marine Turbine Ultrasonic Cleaning Device 100L 1500W 0~99 Minutes Adjustable 1
How do I know what size of ultrasonic cleaner is best for my operation?
The two points you should think about,
● How about your cleaning volume? For very little small part, a table top ultrasonic are able to do this job. For large size and huge volume, you should consider industrial ultrasonic cleaner , for highest cleanness level , multi-stage ultrasonic cleaning system are recommend.
● The size of cleaning object, it can fit in the basket fully immersed under water.

If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.
