Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator

Good quality Benchtop Ultrasonic Cleaner for sales
Good quality Benchtop Ultrasonic Cleaner for sales
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator

China Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator supplier
Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator supplier Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator supplier Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator supplier

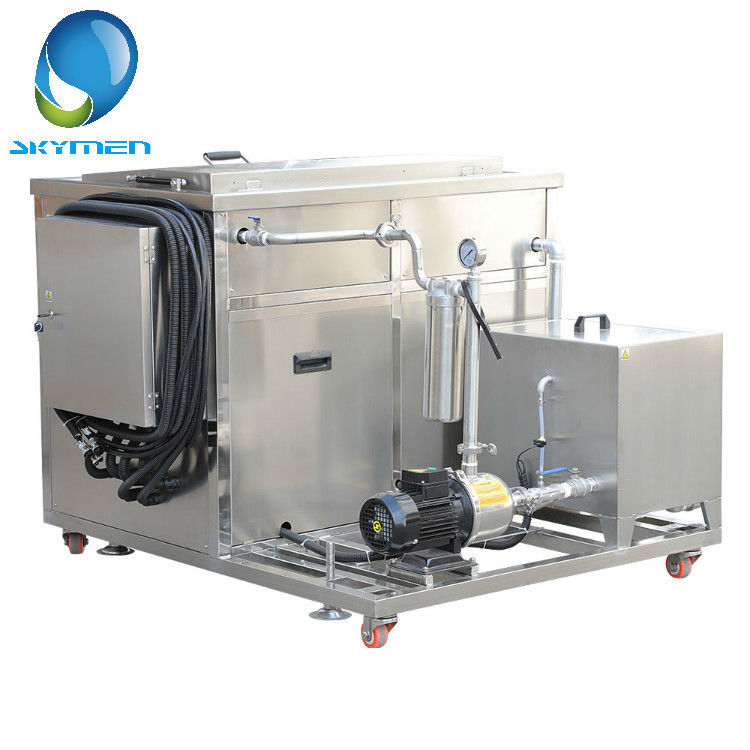

Large Image :  Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator

Product Details:

Place of Origin: China
Brand Name: SKYMEN
Certification: CE
Model Number: JP-720G

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD2850/UNIT
Packaging Details: 1unit/wooden case
Delivery Time: 3-5 working day
Payment Terms: T/T
Supply Ability: 100unit/per month
Contact Now
Detailed Product Description
Features: With Casters With Brake Tank Size: 100*60*60cm
Tank Material: SUS304 Transducers: 60pcs
Ultrasonic Power: 3.6KW Heating Power: 6KW
Timer: 1S-99hours Adjustable Heater: 20-95℃ Adjustable
Generator Voltage: AC 110V/220V, 1phase Machine Voltage: AC 220V/380V, 3phases

Industrial Metallic Parts Degreasing Ultrasonic Cleaner With Oil Seperator



Model JP-720ST(3600W)

ultra sonic power 3600W with timer and heater for industrial heavy duty oil cleaning.

Ultrasonic cleaning + filtration cycle function

Ultrasonic power: 3600W

Ultrasonic frequency: 28000HZ/40000HZ

Shell material: high quality stainless steel

Tank material: high quality stainless steel (SUS304 /316L 2.0) [arc welding]

Heating power: 9000W

Maximum capacity: 360L

Time setting: Digital control (1-99 hours adjustable)

Adjustable temperature: 20-95°C

External generator control 2x KG1800 220V/4x KG900 110V

Power supply: AC380V (three-phase, 3phase), 50/60Hz

Tank size: 1000*600*600mm

Dimensions: 1250*1220*830mm

Packing size: 1370*1310*1125mm(Crate packing)

N.W. 297.0kg

G.W. 358.0kg

Product Certification: ISO9001:2008 & CE & RoHS





Advantage:



  • Tank material is made of international 304 stainless steel to 2mm, pure manual argon welding, strong and durable high temperature;
  • With filter circulation function, recycling solvent, saving cost, good cleaning effect;
  • The time can be set 1-99 hours to adjust, can continuously work for a long time, digital control time, intuitive and accurate;
  • Independent generator control system, flexible and precise control, can adjust the ultrasonic power according to different cleaning items of the customer;
  • South Korea imported the standard 50W industrial transducer, concentrated efforts, significant cleaning effect;
  • With memory function, the machine is unique with a memory chip, no need to reset after time setting;
  • Heating automatic temperature system, 20-95 degrees adjustable, install six 1500W aluminum heating tube, heating speed and save cleaning time;
  • The use of industrial grade power standard bold power cord, heat-resistant heat softening, safe and secure;
  • Standard industrial design, load-bearing 300kg cleaning items;
  • Machine configuration: Machine with generator control box, stainless steel washing basket, drain valve, sound-proof cover, power cord, movable casters, etc.;


The major areas of application for Ultrasonic Cleaning in the automobile industries are Piston Cleaning, Bearing Cleaning, Crank shafts, Gears, Engine assembly blocks, Carburettors, Fuel Injectors, & automobile air conditioning components.



Ultrasonic Cleaning system Design:
1. Considerations in the design of any cleaning system include the contaminants on the part(s), the required cleanliness level, the geometry and material of the part(s), the quantity to be processed, and the previous system design and layout (if applicable). The part geometry, production rate, and cleaning time required will determine the size of the cleaning system, once the overall process has been decided.
2. Typical tanks range from 2 to 30L, and larger tank size can be customized according to your requirements. Other factors that need to be considered are cleaning solutions and temperatures, rinsing (with or without ultrasonics), drying, automation, and load requirements. Our engineers will assist in these decisions and will offer laboratory services and technical expertise.



Cleanliness considerations:

1. In a typical aqueous ultrasonic cleaning system, it is the cleaning stage(s) that will remove or loosen the contaminants. The following rinse stage(s) remove any remaining loosened soils and residual detergent, and a dryer removes any remaining rinse water. The overall process of the system is usually determined experimentally. We have an applications lab where, through a process of experience, trial, and error, a properly designed cleaning process can be determined to meet the cleanliness levels specified.

2. There are a variety of ways to check for cleanliness. Some are as simple as a water break test on the part to see if most oil has been removed. Others are as elaborate as surface quality monitoring that uses optically stimulated electron emission technology to measure thin films of contaminants down to the Angstrom level.

Automotive industrial part cylinder Head radiator part ultrasonic cleaning equipment

Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator
Skymen JTS Series:

Skymen
Model No.
JTS-1030 JTS-1036 JTS-1060 JTS-1072 JTS-1108 JTS-1144
TANK
DIMENSION(mm)
550x450x400 600x500x450 800x600x550 1000x600x600 1000x900x600 1200x1000x800
OVERALL
DIMENSION(mm)
850x710x970 900x750x1030 1100x850x1130 1200x800x950 1240x1140x950 1440x1240x1150
MAX. CAPACITY 99L 135L 295L 360L 540L 960L
CONSTRUCTION
CASE
SUS 304 (MIRROR SHINING IMAGE AVAILABLE)
CONSTRUCTION
TANK
SUS 304 / 316L
ULTRASONIC POWER(MAX.) 1500W 1800W 3000W 3600W 5400W 7200W
ULTRASONIC
FREQUENCY
28kHz/40kHz/68kHz/80kHz/120kHz
MAX. HEATING
TEMP.
20~80C ADJUSTABLE
HEATING POWER 3KW 4.5KW 6KW 9KW 12KW 24KW
TIMER 0~30min adjustable
DRAINAGE Ball valve
LID & BASKET TAKE-OFF / STRUT LID; SUS 304
CLEANING TANK'S
POWER
REQUIREMENT
AC220V/380V/415V/440V. 3
GENERATOR'S
POWER
REQUIREMENT
AC110V/ 220V / 240V, 1
GENERATOR WITH SWEEP MODE AND REMOTE CONTROL
FEATURES MULTI-DIRECTION CASTORS WITH BRAKE;
1 YEAR WARRANTY
Optional FILTRATION SYSTEM (PUMP, SUS FILTER,
OIL CATCH CAN)


Skymen industrial ultrasonic cleaner as high quality Ultrasonic cleaning machine
Industrial High Sonic Power Ultrasonic Cleaning Machine
JP series single tank ultrasonic cleaner equipment system includes replaceable transducer box and generator. The transducer box and generator can be both build-in or separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank, one side or both side or bottom mounted inside the tank. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load. Specification of tank dimension and transducer boxes are custom made available. Either for mould of parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.

Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator



Packing:



Metallic Parts Degreasing Industrial Ultrasonic Cleaner 3.6KW With Oil Seperator
