Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches

Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches
Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches

Large Image :  Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2060G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches

Description
Model: JP-2060G First Tank Volume: 99L
First Tank Size: 500X450X400mm Transducers: 60pcs; 30pcs Of Every Tank
Ultrasonic Power: 3000W; 1500W Of Every Tank Heating Power: 6000W; 3000W Of Every Tank
Filtration Cycle System: Connected With 1st Tank Frequency: 28/40KHz
High Light:

ultrasonic cleaning device

,

ultrasonic washing machine

SUS 316 Material Double tanks Industrial Ultrasonic Cleaner 28/40KHz For Punches, Ejector Pins 100L

Specification

Model JP-2060G
1st Tank Volume 99L
2nd Tank Volume 99L
First tank size 500X450X400mm
Second tank size 500X450X400mm
Transducers 60pcs  50W of every transducer, 30pcs of every tank
Ultrasonic Power 3000W  1500W of every tank
Heating Power 6000W  3000W of evey tank
Frenquency 28KHz/40KHz
Filtration Cycle System 1 set
Generator 2 set
Unit size 1500*1150*850mm
Packing size 1560*1210*970mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 250KG
G.W. 280KG Wrapped by film in wooden case
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water

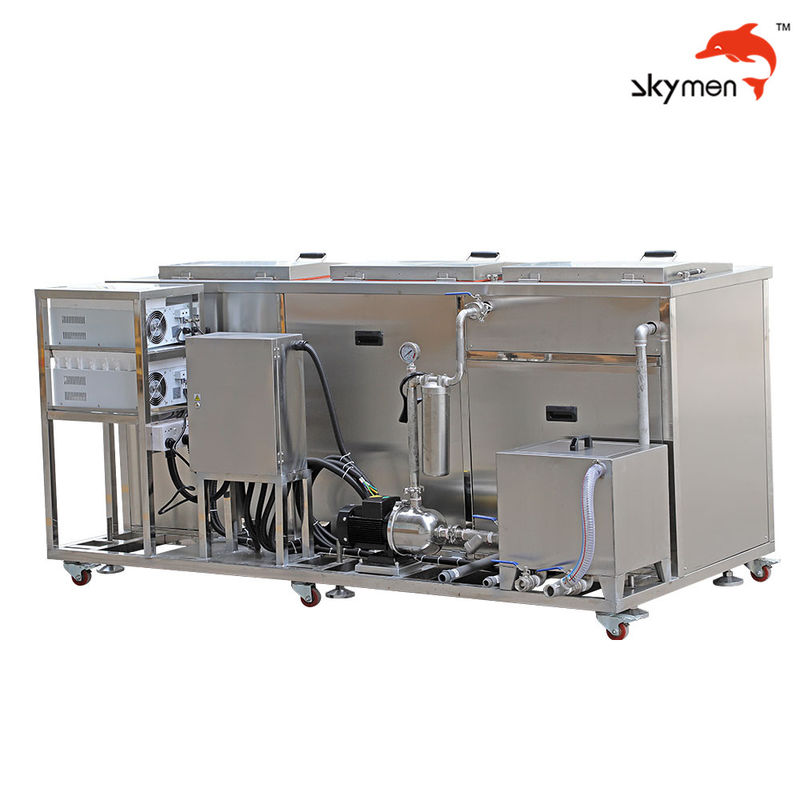

Images:
Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches 0
Clean effect:
Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches 1Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches 2Double Tanks Industrial Ultrasonic Cleaner SUS 316 Material 28/40KHz For Punches 3

Same series with different size:

Model Size of every tank Tank Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-2024G 500X300X250 38L*2 600W*2 1500W*2 24pcs
JP-2036G 500X350X300 53L*2 900W*2 1500W*2 36pcs
JP-2048G 550X400X350 77L*2 1200W*2 3000W*2 48pcs
JP-2060G 550X450X400 99L*2 1500W*2 3000W*2 60pcs
JP-2072G 600X500X450 135L*2 1800W*2 4500W*2 72pcs
JP-2096G 700X500X500 175L*2 2400W*2 6000W*2 96pcs
JP-2120G 800X600X550 264L*2 3000W*2 6000W*2 120pcs
JP-2144G 1000X600X600 360L*2 3600W*2 9000W*2 144pcs
JP-2216G 1000X900X600 540L*2 5400W*2 18000W*2 216pcs
JP-2288G 12000*1000*800 960L*2 7200W*2 27000W*2 228pcs



Suggested Ultrasonic Cleaning Procedure

In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.

Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.

In the meantime:

Segregate instruments by alloy or composition to avoid potential damage (Chromium plated instruments should not be cleaned ultrasonically)

Instruments with movable parts should be disassembled to facilitate cleaning

Place the instruments the ultrasonic cleaner’s mesh basket, taking care that they do not come in contact with each other
Cannulated or lumened instruments should be positioned to insure interiors are wetted with the cleaning solution. In some instances placing them on an angle will facilitate this

Set the control panel per manufacturers’ instructions and start the cleaning process

At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.

Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.
