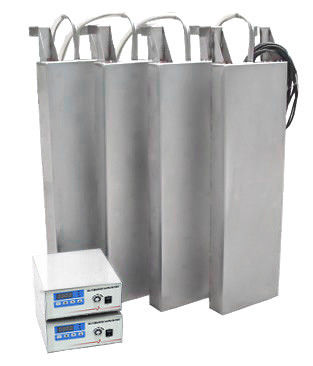

Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz

Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz
Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz

Large Image :  Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz

Product Details:
Place of Origin: China
Brand Name: Skymen
Certification: CE ROHS
Model Number: JP-1030i
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wood case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 5000PCS per month

Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry 40khz

Description
Ultrasonic Cleaning Power: 1500W Dimension: 550X406X100mm
Material: SUS304/SUS316 Generator: 1pcs
Application: Clean, Emulsification, Separation, Homogenization, Extraction, Catalysis, Defoaming, Stirring Power Supply: AC220~240V 50Hz;AC110-120V 60Hz
Treatment: Hard-Cr Plating Treatment
High Light:

submersible ultrasonic transducer

,

ultrasonic extraction equipment

40khz Ultrasound Stainless Steel 316 Submersible Transducer Box Surface Treatment Industry

Bottom mounted, side mounted ultrasonic vibration plate, factory direct sales, ultrasonic cleaning machine, good cleaning effect, affordable price!

Specification:

Model

Specification









JP-1030I

Size (mm) 550*406*100
Tank material: 304 Stainless Steel
Ultrasonic power 1800W
Frequency 80khz
Transducer 30
Timer 1 to 99 hours
Heater N/A
Lead-out way Flexible or rigid tube
Working voltage 110V or 220V; 50&60 HZ





Application and fileds

Immersible ultrasonic transducers are sealed stainless steel enclosures, to make a exist tank become a ultrasonic tank.

The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.



Industry Cleaning Objects
Manufacture line Drop in ultrasonics addition to existing manufacturing cleaning process lines (aqueous cleaning lines, passivation, plating lines, or other part finishing processes which require from microscopic surface scrubbing agitation)
Electrnoincs PCB board, electronic parts, TV parts, computer parts,
Aerospace and marine parts Turbine blades, Marine Engine components, Overhaul parts, Pneumatics,
Machinery Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools; Valve bodies and manifolds
Plating and Painting polishing parts, SUS cutter, tableware, plating
Food industry Oven tray, boiler, bottles, bottle cap, Hood Filters
Optical& watch tool optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand
Jewelry Jewelry, diamond, gold, silver products
Dental and Medical Medical device stainless steel parts cleaning





Advantage of ultrasonic cleaner :



Efficient accuracy



Since the ultrasonic wave energy can penetrate fine gaps and small holes and blind holes, it can be applied to the cleaning of any component or assembly. When the parts to be cleaned are precision parts or assemblies, ultrasonic cleaning is often the only way to clean the special technical requirements.



Efficient and fast



Ultrasonic cleaners are much faster than conventional cleaning methods in dust removal and descaling of workpieces. The assembly can be cleaned without disassembly. Ultrasonic cleaners save labor, and the advantages of manual hand washing often make it the most economical way to clean.



Consistence



Whether the parts to be cleaned are large or small, any material, simple or complex, single or batch or automatic flow online, ultrasonic cleaning can achieve unmatched uniform cleanliness by hand cleaning.



All equipment companies sold by Light Point Ultrasonic Cleaning Equipment Factory are guaranteed nationwide for one year and lifetime maintenance. 24-hour service

Model JP-1006I JP-1012I JP-1018I JP-1024I JP-1030I JP-1036I JP-1048I
pack size(mm) 305*205*100 355*305*100 406X305X100 500X355X100 550X406X100 500X460X100 600X460X100
Ultrasonic power 300W 600W 900W 1200W 1500W 1800W 2400W
Transducers 6 12 18 24 30 36 48
Ultrasonic frequency 40KHZ(Other custom made frequency28KHZ, 80KHZ,130KHZ)
Lead-out way Flexible tube/Rigid tube
Material SUS304/SUS316L
Thickness 2.5MM
Voltage AC 110V/220V/240V
