Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes

Good quality Benchtop Ultrasonic Cleaner for sales
Good quality Benchtop Ultrasonic Cleaner for sales
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes

China Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes supplier
Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes supplier Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes supplier

Large Image :  Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes

Product Details:

Place of Origin: China
Brand Name: skymen/OEM
Certification: CE/FCC/RHoS/REACH
Model Number: JP-180ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD750/unit
Packaging Details: wooden case
Delivery Time: 3 days after your payment
Payment Terms: T/T, L/C, Paypal
Supply Ability: 5000 units per week
Contact Now
Detailed Product Description
Material: SUS 304/316 Tank Capacity: 53L
Tank Size: 500*350*300 Mm Unit Size: 735*455*695 Mm
Paking Size: 795*515*815mm Wooden Case Ultrasonic Power: 900W
Heating Power: 1500W Timer: 1-99 Minutes Adjustable
Heater: 20~95C Adjustable Frequency: 40KHz / 28KHz
Power Supply: AC 100 ~ 120V, 50 / 60Hz, AC 220 ~ 240V, 50 / 60 H Transducer: 18pcs

53L Industrial Ultrasonic Bath



Function:

Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt



Features:



Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.

Time is adjustable among 1 second to 500 hours by simple handle of large timer.

Additional special case for small parts cleaning and drainage for changing of cleaning solution.

Automatic stopwatch to manage working time and maintenance time.

Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.



Specificatoin:

Model JP-180ST
Ultrasonic power 900W (18pcs transducers)
Frequency 40KHz / 28KHz
Housing material SUS304
Tank material SUS304 / 316
Heating power 1500W
Tank capacity 53L
Timer Digital 1-99 min adjustable
Heater 0~80℃
Voltage AC 100~120V, 60Hz
AC 220~240V, 50Hz
Tank size 500*350*300 mm
Unit size 735*450*695 mm
Packing size Wooden case
N.W. 70  Kg
G.W. 75 Kg
Certificate ISO9001:2008|CE & RoHS



From 10 galles to 200 gallons ,size could be customized

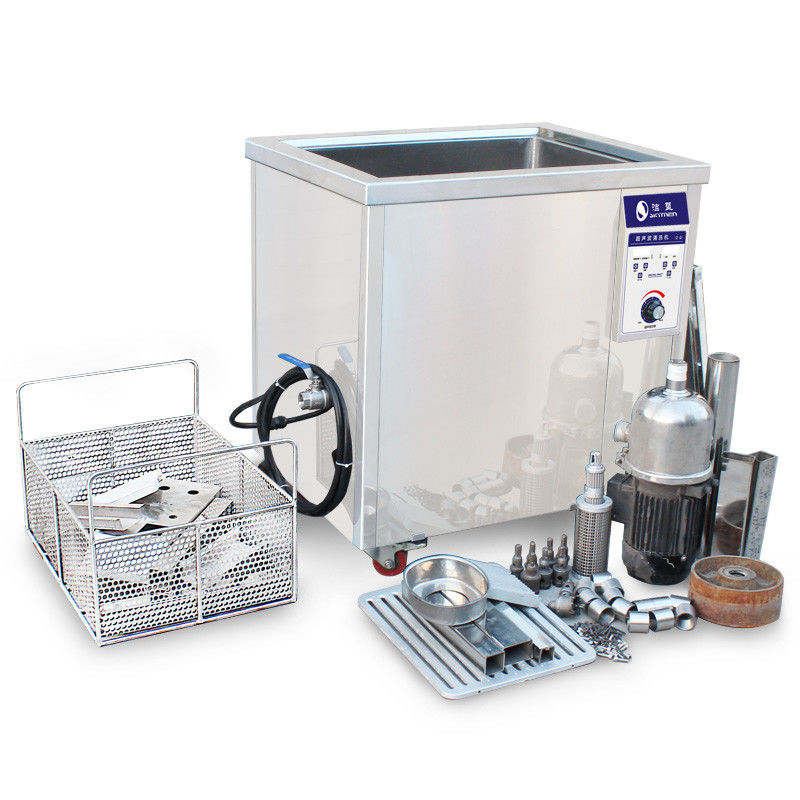

Images of this model:

Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes



The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120ST 500X300X250 38L 600W 1500W 12pcs
JP-180ST 500X350X300 53L 900W 1500W 18pcs
JP-240ST 550X400X350 77L 1200W 3000W 24pcs
JP-300ST 550X450X400 99L 1500W 4500W 30pcs
JP-301ST 800X300X400 96L 1500W 4500W 30pcs
JP-360ST 600X500X450 135L 1800W 4500W 36pcs
JP-480ST 700X500X500 175L 2400W 6000W 48pcs
JP-600ST 800X600X550 246L 3000W 6000W 60pcs
JP-720ST 1000X600X600 360L 3600W 9000W 72pcs
JP-1108ST 1000X900X600 540L 5400W 18000W 108pcs
JP-1144ST 1200X1000X800 960L 7200W 27000W 144pcs



How does Ultrasonic Cleaner work?

Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes



How to use an ultrasonic cleaner ?

Cleaning prior to lacquering

Ultrasonic clean 130° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Brulin 815GD, 12 ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen



Cleaning to remove calcium buildup (replaces "chem-clean")

Ultrasonic clean <110° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Ultra-power 132, 1 to 1½ ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen



Package by polywooden case:





Before and after :



Adjustable Timer Ultrasonic Cleaning Machine 53L Large Volume With Casters / Brakes
