Product Details:
|
| Tank Size: | 1000x600x600mm (LxWxH) | Ultrasonic Frequency: | 28khz/40khz |
|---|---|---|---|
| Ultrasonic Max Power: | 3600W | Heater: | 20 To 80 Adjust |
| Optional: | Oil Filtration System | Timer: | 1~99 Hours |
| Heating Power: | 9KW, Hot Plate | Material: | Stainless Steel |
| High Light: | dual frequency ultrasonic cleaner,ultrasonic cleaning unit |
||

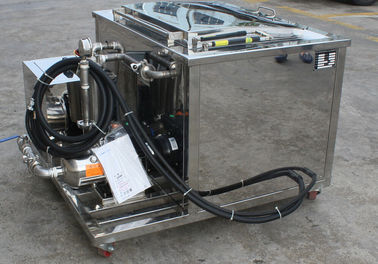

Machinery Parts, bolts ,Grab repairs working shop washing equipment
Ultrasonic cleaner is thought to be the most cleaing tool for:
Auto parts ,machinery parts,
Lab and medical instrument;
Die castings parts and electronics
To remove dust,carbon, bulid-up grimes,rust
Product specification:
|
Ultrasonic cleaning machine :
|
|
| Model | JTM-1072 |
| Ultrasonic Tank Dimension(mm) | 1700*600*800 |
| Rinsing tank dimension(mm) | 1500*500*500 |
| Max. Capacity | 360/tank (Customized size are available) |
| Construction Case | SUS304 (Mirror shining image available) |
| Construnction Tank | SUS304 |
| Transducer Number | 24 pcs |
| Ultrasonic power(Max.) | 1200W |
| Ultrasonic frequency | 40kHz |
| Temperature range | ~99C adjustable |
| Heating power | 3KW |
| Timer | 1~99h |
| Drain | 3/4" Valve |
| Lid & Basket | Available, material: SUS304 |
| Cleaning Tank voltage | AC220V/AC380V 3phase |
| Generator Voltage | AC110V / 220V 1phase |
| Features |
With double tank for cleaning and rinsing. |
How does ultrasonic cleaning work?
Specially designed transducers transform electric energy into mechanical vibrations. These are transmitted into the cleaning liquid, creating many tiny vacuum-filled bubbles which rapidly implode. This process, called cavitation, releases highly energetic jets of liquid which remove all kinds of contamination from metal, glass, and plastic surfaces. Every surface that comes in contact with the fluid is thoroughly cleaned.
Skymen --- a professional manufacturer for 10 years, dedicated in ultrasonic cleaner.
Excellent engineer team, can satisfy any requirement from our customers.
JTS-1072 Specifications:
Ultrasonic cleaner could removes small particulate and adhering contamination from parts where entrapment areas limit or restrict access through mechanical means
The cleanliness of your products and components directly affects the safety of your crew —ultrasonic cleaning technology contributes to your efforts to maximise the safety and reliability of aerospace components while achieving optimal cleanliness standards.
Before and After of using an ultrasonic cleaner:
Package
|
Packing , loading, delivery time |
|
|
Packing unit |
1set / wooden case |
|
Packing method |
Export wooden case |
|
Loading port |
Shenzhen / Hongkong |
|
Delivery time |
About 20 working days |
|
Minimum Order Quantity |
1set |
|
Transport method |
By express company / air / sea |
