160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank

Certification
China Skymen Technology Corporation Limited certification
China Skymen Technology Corporation Limited certification
Customer Reviews
I am happy that you are making good quality ultrasonic cleaner,first one is very good.

—— Stefan (Germany)

Excellent machine. I can recommended Skymen ultrasonic cleaner to everybody who need for professional or hobby.

—— Blasko Krstev

The systems were well received tested and working very fine. I appreciate all your help. Looking forward for having future business wth you again.

—— Haytham Tarhini (Saudi Arabia)

I'm Online Chat Now

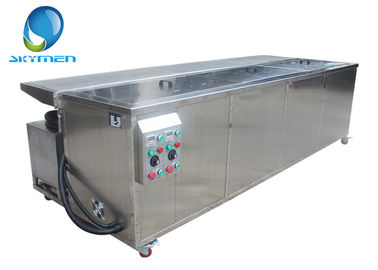

160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank

160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank
160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank
160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank

Large Image :  160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Skymen
Certification: RoHS, CE, FCC, SGS
Model Number: JP-2036T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: In Stock
Payment Terms: T/T
Supply Ability: 800 pcs per month

160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank

Description
Model: JP-2036T First Tank Volume: 160L
First Tank Size: 2000X200X400mm Transducers: 36cs, 50W Of Every Transducer
Ultrasonic Power: 3000W Heating Power: 4500W
Function: Ultrasonic Clean+rinsing+drying Frequency: 28/40KHz
High Light:

ultrasonic blind cleaning equipment

,

blind cleaning machine

,

160L Ultrasonic Blind Curtain Cleaner

160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder and Rinsing Tank



Working principle of Ultrasonic:
The high-frequency oscillating signal emitted by the ultrasonic generator on the principle of the ultrasonic cleaning machine is converted into a high-frequency mechanical oscillation by the transducer and propagated to the medium--cleaning solvent, and the ultrasonic waves are radiated in the cleaning liquid in a dense manner. The liquid flows to generate tens of thousands of tiny bubbles having a diameter of 50-500 μm, and the tiny bubbles existing in the liquid vibrate under the action of the sound field. These bubbles form and grow in the negative pressure region in which the ultrasonic waves propagate longitudinally, and in the positive pressure region, when the sound pressure reaches a certain value, the bubbles rapidly increase and then suddenly close. And when the bubble is closed, a shock wave is generated, thousands of atmospheric pressures are generated around it, and the insoluble dirt is destroyed to disperse them in the cleaning liquid. When the group particles are wrapped by the oil and adhere to the surface of the cleaning member, the oil is emulsified, and the solid is solid. Particles and detachment, so as to achieve the purpose of cleaning the cleaning parts. In this process known as the "cavitation" effect, the bubble closure can form a high temperature of several hundred degrees and an instantaneous high pressure of more than 1000 atmospheres.



Same series with different size for your choice:

Model 1st tank volume 1st tank size Transducers Ultrasonic Power Heating power Frequency
JP-2036T 160L 2000*200*400mm 36pcs 1800W 4500W 28/40KHz
JP-2060T 264L 2400*220*500mm 60pcs 3000W 6000W 28/40KHz
JP-2072T 330L 3000*220*500mm 72pcs 3600W 12000W 28/40KHz

Specification

Model JP-2036T
1st Tank Volume 160L   Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 160L   Ultrasonic Rinsng tank
1st tank size 2000*200*400mm
2nd tank size 2000*200*400mm
Transducers 36pcs
Ultrasonic Power  1800W
Heating Power of Ultrasonic tank 4500W
Frenquency 28KHz/40KHz
Generator 1pcs
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 200G
G.W.

250KG Wrapped by film in wooden case

Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Drain valve
Ultrasonic generator work separately control transducer.
Use only tap water for general cleaning, you also can add about 5-10ml of detergent into water to enhance wash result when needed.
Please read the instruction manual before use.



Images:
160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 0160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 1160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 2

160L Ultrasonic Blind Curtain Cleaner 1800W 28/40KHz With Drain Holder / Rinsing Tank 3
